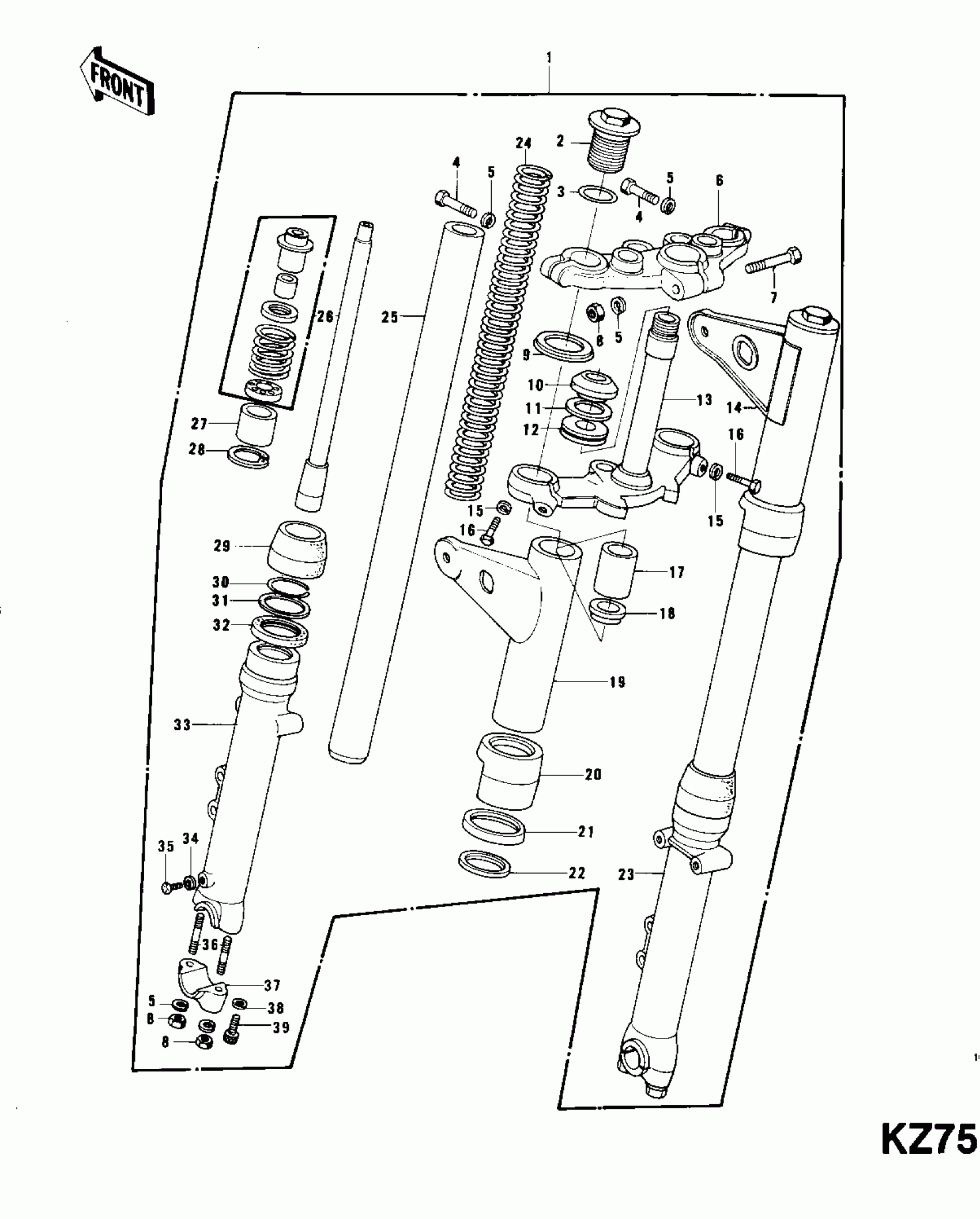

Kawasaki KZ750-B4 FRONT FORK (KZ750-B1/B2) Diagram

#

Description
Price

1

FORK-FRONT

44001-172

$1,294.45

2

BOLT-FORK TOP

44062-003

Unavailable

3

'O' RING FORK TOP

44046-015

$9.47

4

BOLT-HEX HEAD.8M/M

44041-045

$24.03

5

WASHER SPRING 8MM

461F0800

Unavailable

6

HEAD STEERING STEM

44039-071

$141.68

7

BOLT-STEERING STEM HD

44041-042

Unavailable

8

NUT,LOCK,8MM

92015-1124

$4.10

9

WASHER,FORK COVER

44064-005

Unavailable

10

RACE,STEERING STEM BEARING

92047-012

$14.20

11

WASHER,30.5X50X0.6

92022-231

$4.17

12

SEAL-OIL,STEERING STEM

92056-003

$6.75

13

STEM,STEERING

44037-093

$443.84

14

COVER,R.H

44034-076

$91.36

15

WASHER-SPRING,12MM

461F1200

Unavailable

16

BOLT-HEX HEAD,12X36

92003-064

$24.03

17

SPACER

44028-040

$5.25

18

GUIDE,FORK SPRING

44028-031

$3.64

19

COVER,L.H.FORK

44033-076

$95.31

20

GUIDE,FORK COVER

44064-025

Unavailable

21

WASHER,FORK COU GUID

44064-008

$11.07

22

GASKET,FORK COVER

44045-038

Unavailable

23

TUBE,RH,FORK OUTER

44006-063

$515.29

24

SPRING,FORK

44026-071

$82.48

25

TUBE,FORK INNER

44013-057

$188.52

26

CYLINDER-FORK

44022-027

Unavailable

27

PISTON,FORK

44018-009

Unavailable

28

CIRCLIP,FORK PISTON

44044-019

Unavailable

29

DUST SHEILD,FORK

44010-032

$35.15

30

RING-SNAP,FORK OIL

92033-1100

$11.66

31

WASHER-OIL SEAL FIT

44043-044

$12.86

32

SEAL-OIL,FORK OUTER PIPE

92049-1216

$18.72

33

TUBE,LH,FORK OUTER

44005-065

$324.05

34

GASKET,FORK DRAIN PLUG

44045-002

$3.95

35

SCREW PAN HEAD 4X8

220B0408

Unavailable

36

STUD,8X35

92004-1009

$4.80

37

HOLDER,FRONT AXLE

44063-014

Unavailable

38

GASKET

44045-057

$3.71

39

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93
