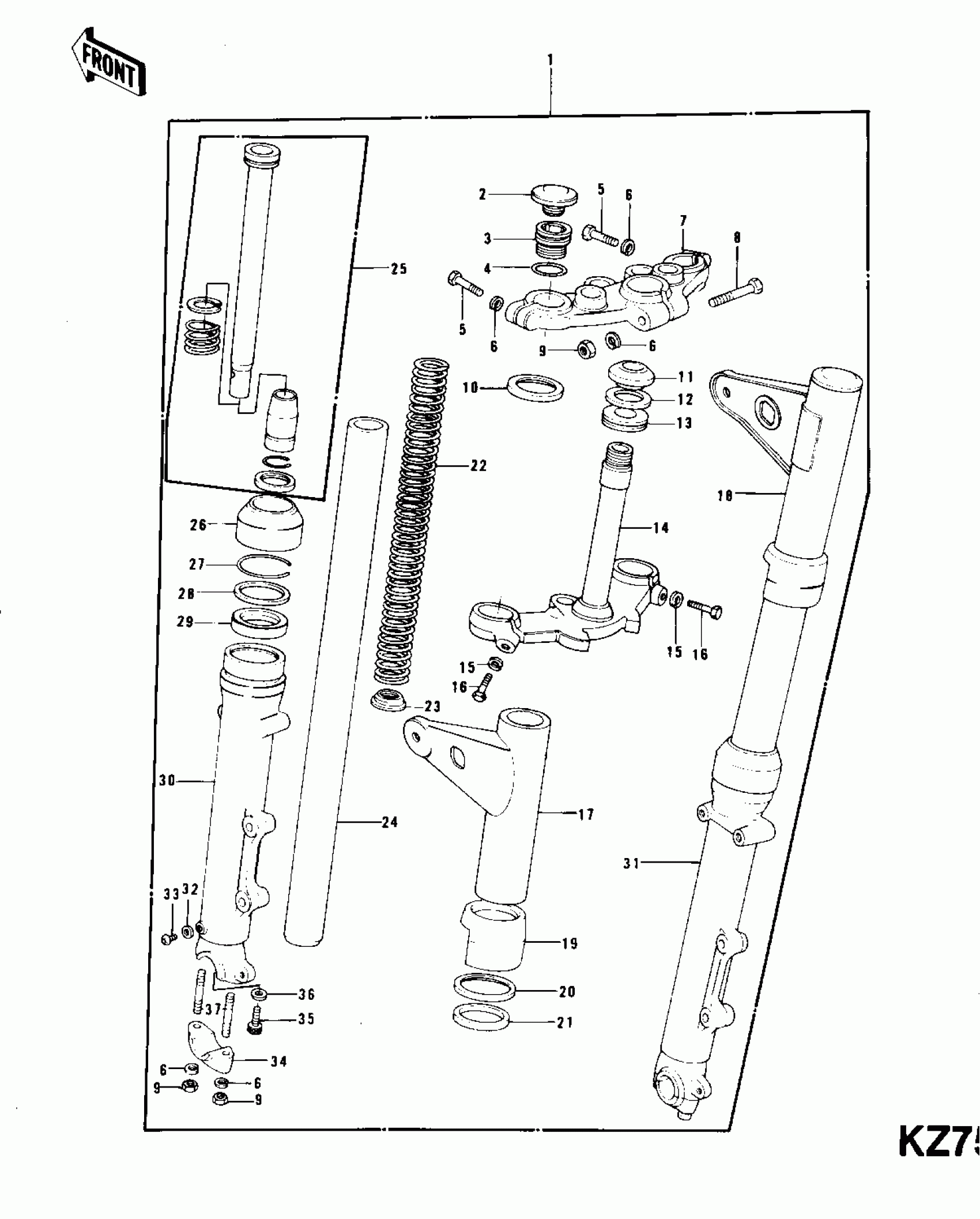

Kawasaki KZ750-B4 FRONT FORK (KZ750-B3/B4) Diagram

#

Description
Price

1

FORK-FRONT

44001-1015

$1,331.05

2

CAP,RUBBER

11012-1017

$8.74

3

CAP,FORK SPRING

44029-1003

Unavailable

4

"O" RING,FORK TOP

92055-1009

Unavailable

5

BOLT-HEX HEAD.8M/M

44041-045

$24.03

6

WASHER SPRING 8MM

461F0800

Unavailable

7

HEAD STEERING STEM

44039-071

$141.68

8

BOLT-STEERING STEM HD

44041-042

Unavailable

9

NUT,LOCK,8MM

92017-013

$7.89

10

WASHER,FORK COVER

44064-005

Unavailable

11

RACE,STEERING STEM BEARING

92047-012

$14.20

12

WASHER,30.5X50X0.6

92022-231

$4.17

13

SEAL-OIL,STEERING STEM

92056-003

$6.75

14

STEM,STEERING

44037-093

$443.84

15

WASHER-SPRING,12MM

461F1200

Unavailable

16

BOLT-HEX HEAD,12X36

92003-064

$24.03

17

COVER,L.H.FORK

44033-076

$95.31

18

COVER,R.H

44034-076

$91.36

19

GUIDE,FORK COVER

44064-025

Unavailable

20

WASHER,FORK COU GUID

44064-008

$11.07

21

GASKET,FORK COVER

44045-038

Unavailable

22

SPRING,FORK

44026-1009

$38.78

23

GUIDE,FORK SPRING

44028-1001

Unavailable

24

TUBE,FORK INNER

44013-1008

$179.54

25

CYLINDER-FORK

44022-1002

$70.47

26

DUST SHEILD,FORK

44010-032

$35.15

27

RING-SNAP,FORK OIL

92033-1100

$11.66

28

WASHER-OIL SEAL FIT

44043-044

$12.86

29

SEAL-OIL,FORK OUTER PIPE

92049-1216

$18.72

30

TUBE,LH,FORK OUTER

44005-1031

$368.91

31

TUBE,RH,FORK OUTER

44006-1031

$261.29

32

GASKET,FORK DRAIN PLUG

44045-002

$3.95

33

SCREW PAN HEAD 4X8

220B0408

Unavailable

34

HOLDER,FRONT AXLE

44063-014

Unavailable

35

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

36

GASKET

44045-057

$3.71

37

STUD,8X35

92004-1009

$4.80
