1984 Kawasaki KZ700-A1 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

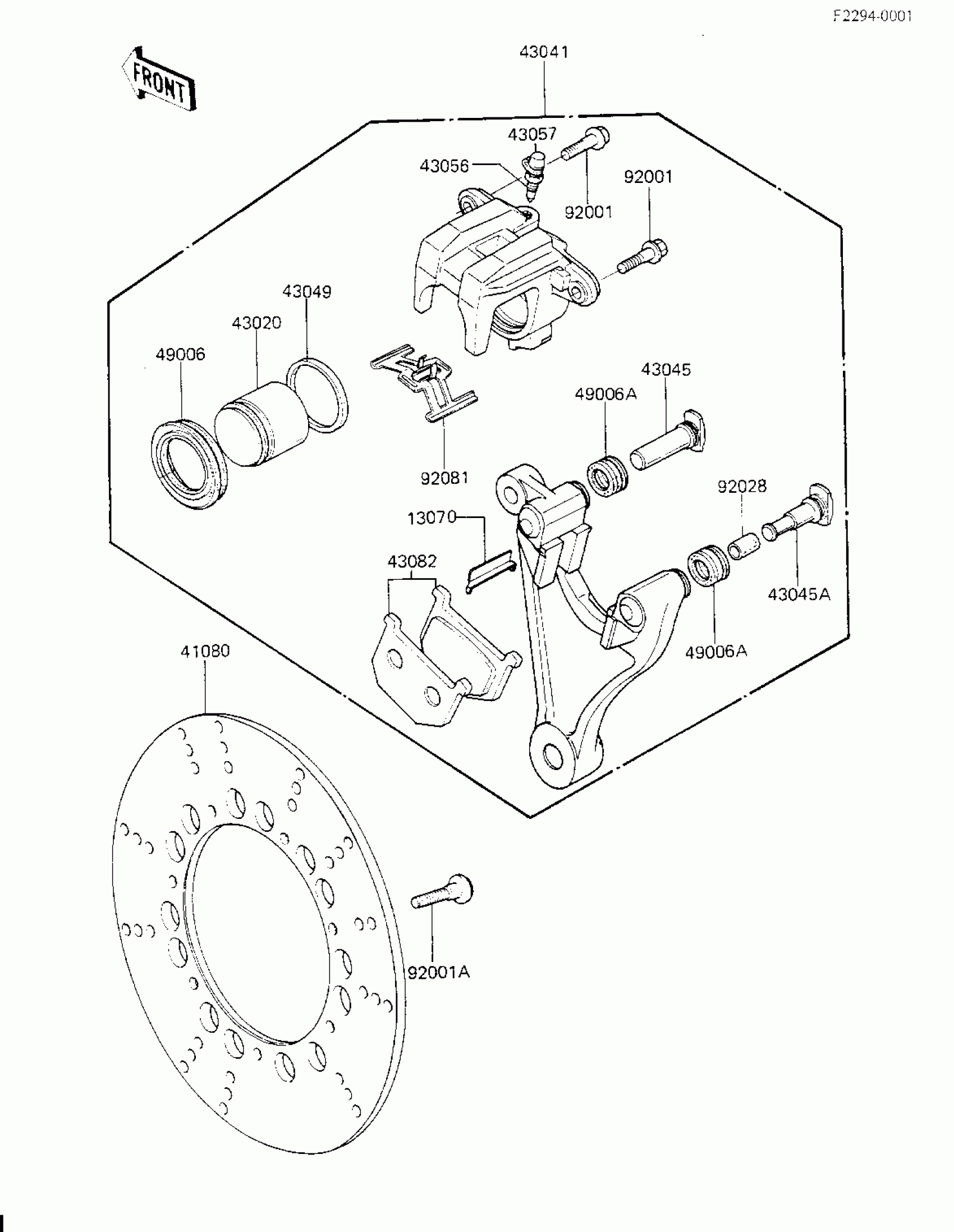

1984 Kawasaki KZ700-A1 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,PAD

13070-1026

1
Out of stock

41080

DISC,RR,SILVER

41080-1131

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1096

1
Out of stock

43041

CALIPER-ASSY,RR

43041-1069

1
Out of stock

43045

SHAFT-CALIPER

43045-1007

1
Out of stock

43045A

SHAFT-CALIPER

43045-1008

1
Out of stock

43049

PACKING,PISTON SEAL

43049-002

1
Out of stock

43056

BREATHER

43056-003

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1025

1
Out of stock

49006

BOOT,PISTON

49006-1043

1
Out of stock

49006A

BOOT,SHAFT

49006-1044

1
Out of stock

92001

BOLT,FLANGED,8X25,BLACK

92001-1510

1
Out of stock

92001A

BOLT,DISC PLATE,8X30

92001-1951

1
Out of stock

92028

BUSHING,7.8X11X15.7

92028-1090

1
Out of stock

92081

SPRING,PAD

92081-1229

1
Out of stock
