1984 Kawasaki KZ700-A1 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

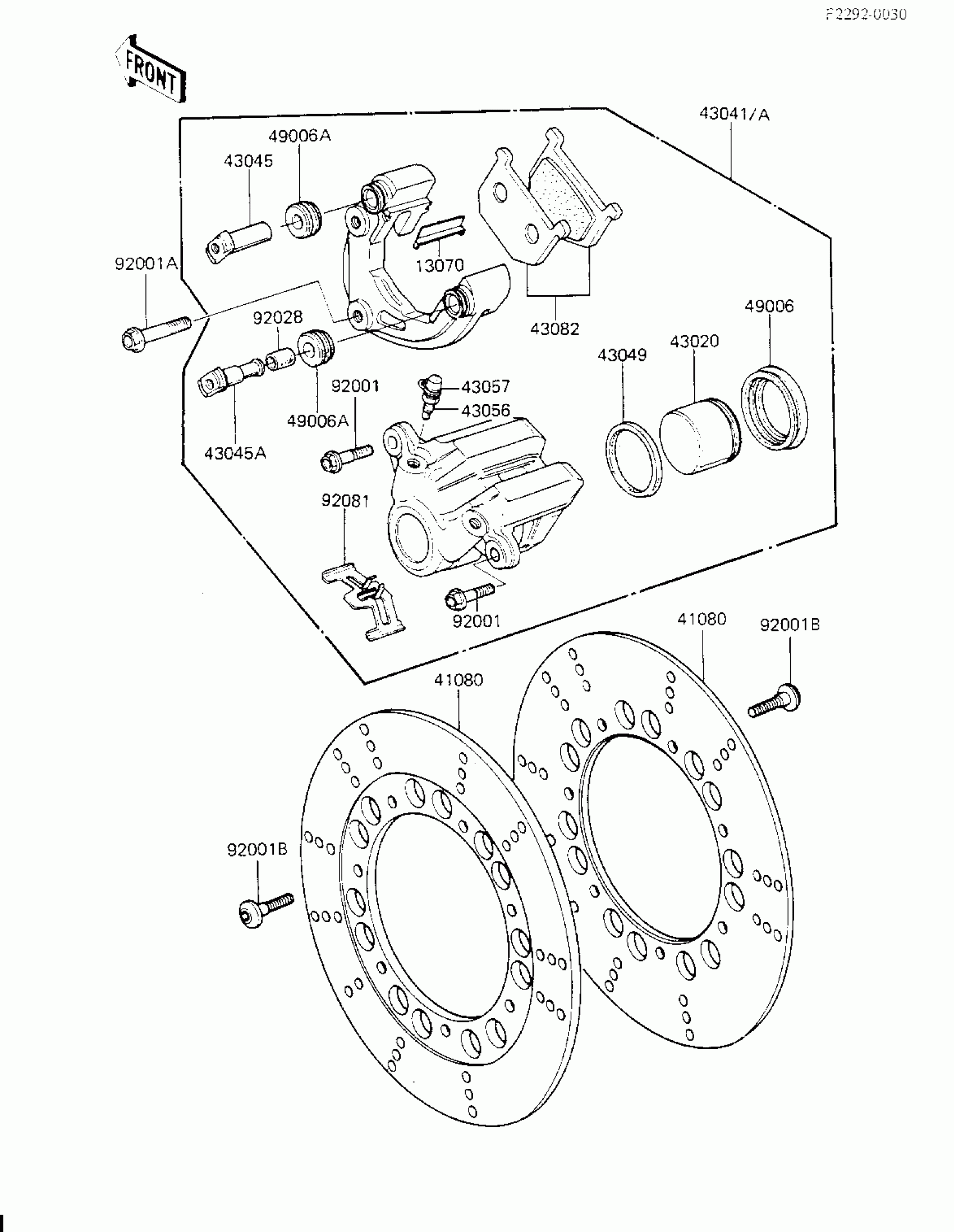

1984 Kawasaki KZ700-A1 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,PAD

13070-1026

1

$8.02

In stock

41080

DISC,FR,SILVER

41080-1130

1

$450.69

In stock

43020

PISTON-COMP-BRAKE

43020-1096

1
Out of stock

43041

CALIPER-ASSY,FR,LH

43041-1080

1

$371.88

In stock

43041A

CALIPER-ASSY,FR,RH

43041-1081

1

$371.88

In stock

43045

SHAFT-CALIPER

43045-1007

1

$21.69

In stock

43045A

SHAFT-CALIPER

43045-1008

1

$21.69

In stock

43049

1

$11.01

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1026

1

$66.78

In stock

49006

BOOT,PISTON

49006-1043

1

$10.97

In stock

49006A

BOOT,SHAFT

49006-1044

1

$6.90

In stock

92001

BOLT,FLANGED,10X41,B

92001-1507

1
Out of stock

92001A

1

$6.97

In stock

92001B

1

$3.72

In stock

92028

BUSHING,7.8X11X15.7

92028-1090

1

$6.41

In stock

92081

SPRING,PAD

92081-1229

1

$19.43

In stock
