1984 Kawasaki KZ700-A1 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

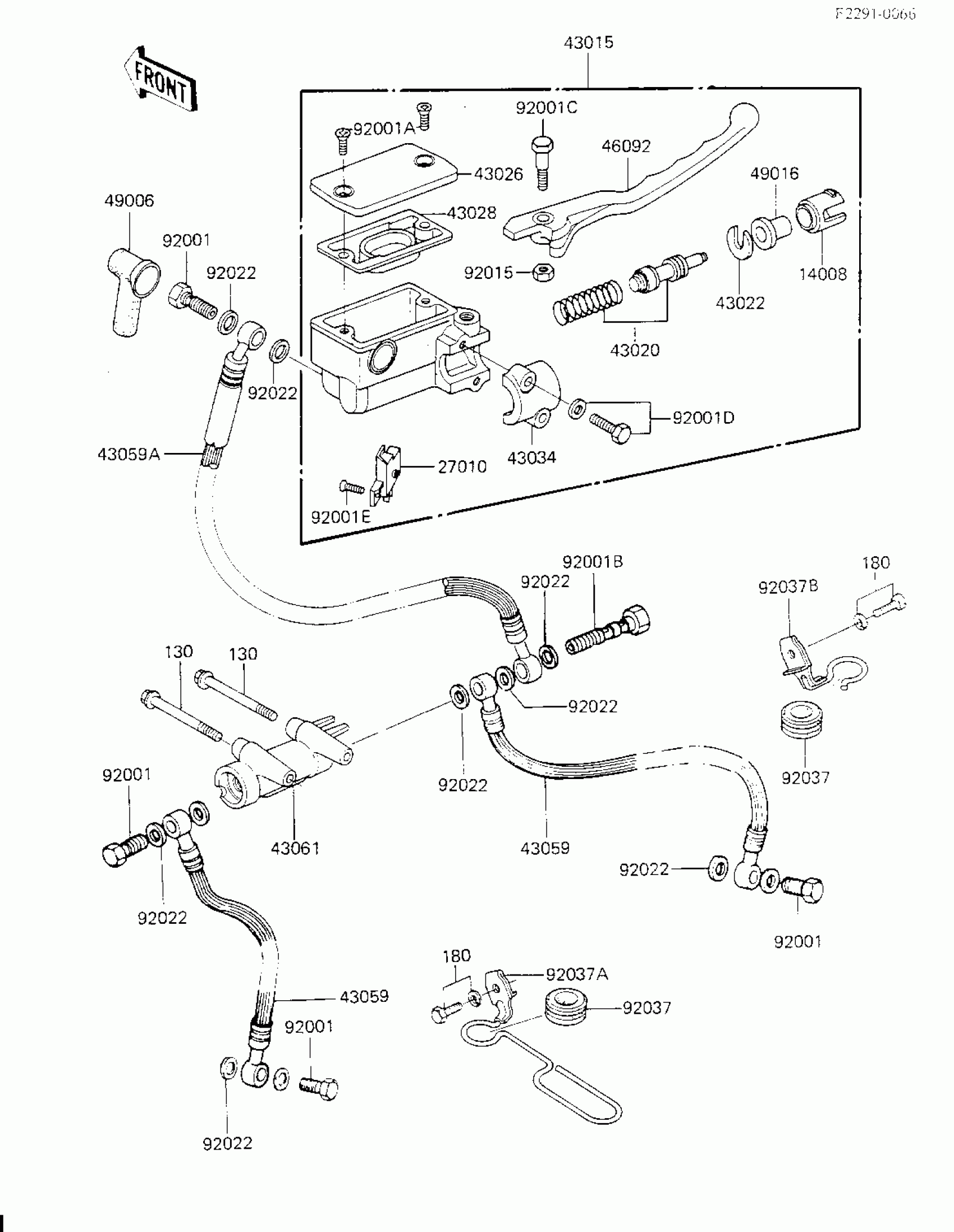

1984 Kawasaki KZ700-A1 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER,PISTON

14008-1035

1
Out of stock

27010

SWITCH,BRAKE

27010-1056

1
Out of stock

43015

CYLINDER-ASSY-MASTER

43015-1085

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1079

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1009

1
Out of stock

43026

CAP-BRAKE,FRONT

43026-1017

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1029

1
Out of stock

43034

HOLDER-BRAKE,MASTER C

43034-1013

1
Out of stock

43059

HOSE-BRAKE,FR,L=520

43059-1189

1
Out of stock

43059A

HOSE-BRAKE

43059-1190

1
Out of stock

43061

JOINT-BRAKE

43061-1004

1
Out of stock

46092

LEVER-GRIP,MASTER CYL

46092-1026

1
Out of stock

49006

BOOT,DUST

49006-1067

1
Out of stock

49016

COVER-SEAL,BRAKE PISTON

49016-1041

1
Out of stock

92001

BOLT,OIL,L=23

92002-1888

1
Out of stock

92001A

SCREW-CSK-CROS,5X12,BLACK

92001-1055

1
Out of stock

92001B

BOLT,OIL,L=37

92002-1909

1
Out of stock

92001C

BOLT,6X37.3,BLACK

92001-1512

1
Out of stock

92001D

BOLT,6X25,W/WASHER,BLACK

92001-1513

1
Out of stock

92001E

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92037

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

92037A

CLAMP,BRAKE HOSE,LH,

92037-1297

1
Out of stock

92037B

CLAMP,BRAKE HOSE,RH,

92037-1298

1
Out of stock

130

BOLT-FLANGED,6X60

130G0660

1
Out of stock

180

BOLT-UPSET-WS

180C0612

1
Out of stock
← Front Brake Rear Brake →
