1984 Kawasaki KZ700-A1 Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

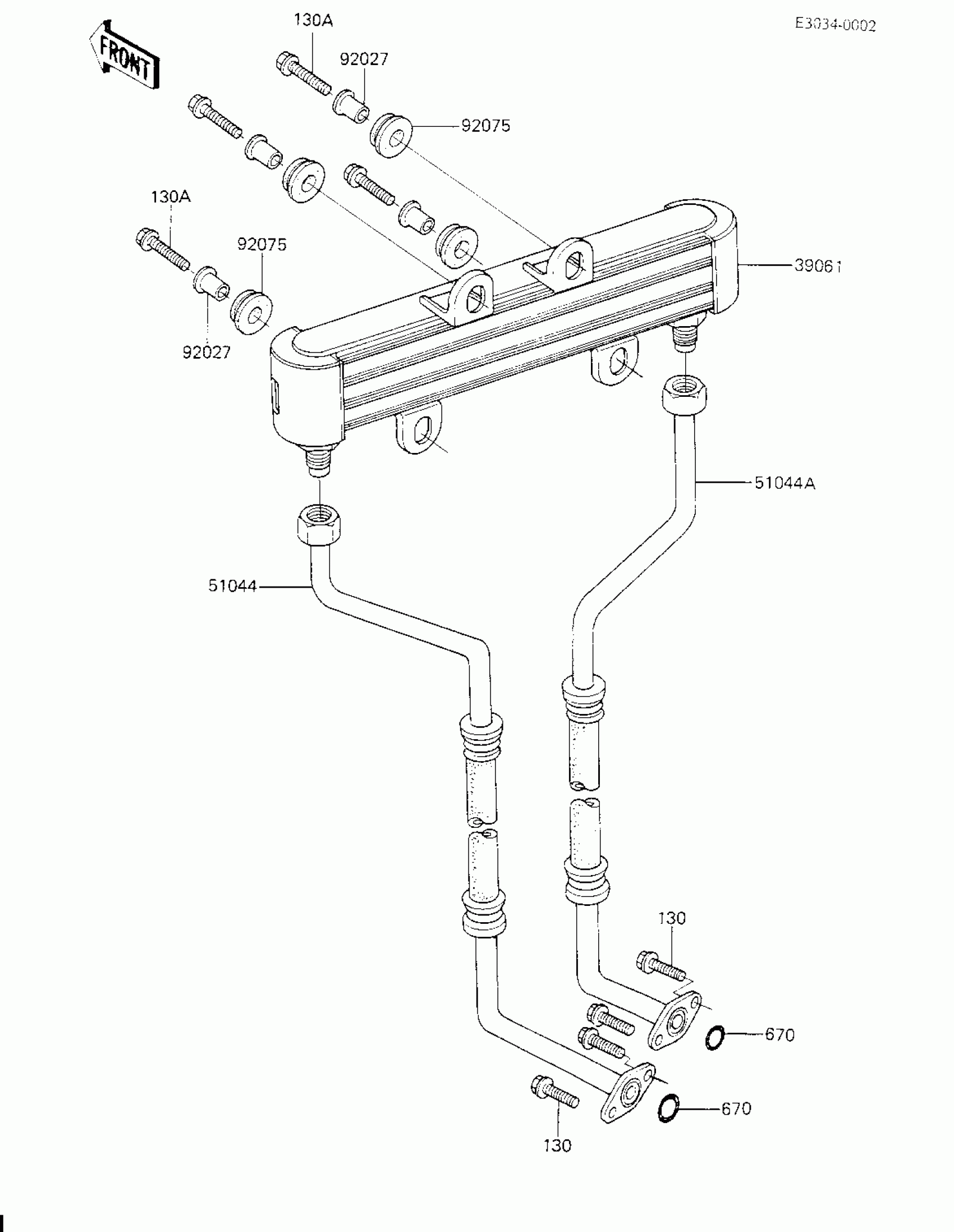

1984 Kawasaki KZ700-A1 Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39061

COOLER,OIL,BLACK

39061-1007-10

1
Out of stock

51044

TUBE-ASSY,OIL COOLER,

51044-1015

1
Out of stock

51044A

TUBE-ASSY,OIL COOLER,

51044-1016

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock
