1984 Kawasaki KZ700-A1 Crankcase Bolt & Stud Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

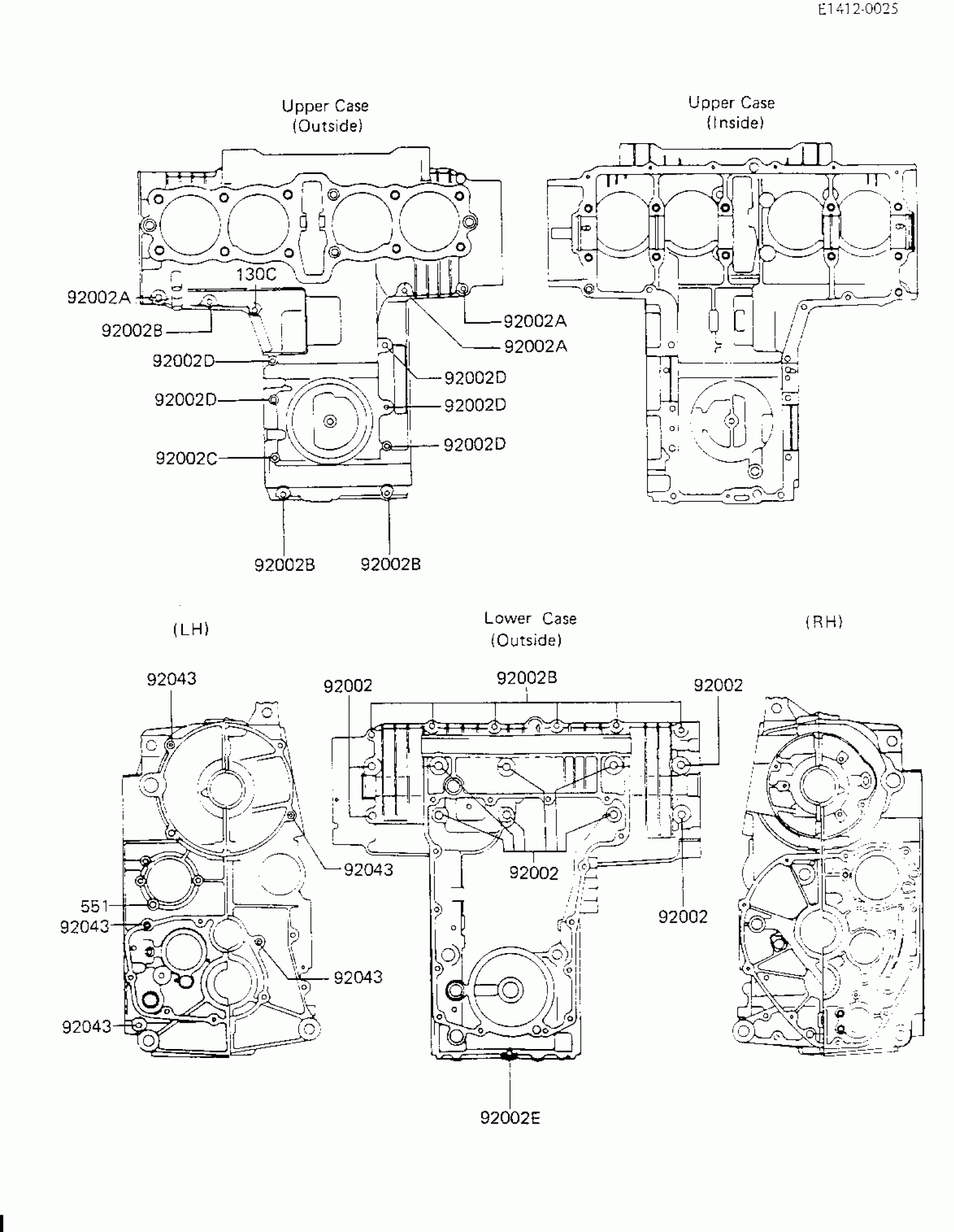

1984 Kawasaki KZ700-A1 Crankcase Bolt & Stud Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,8X95

92002-1077

1

$10.63

In stock

92002A

BOLT,6X50

92002-1079

1

$5.17

In stock

92002B

BOLT,6X40

92002-1080

1

$3.74

In stock

92002C

BOLT,6X115

92150-1140

1

$7.14

In stock

92002D

BOLT,6X100

92002-1141

1
Out of stock

92002E

BOLT,6X105

92002-1142

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

551

PIN-DOWEL,6X14

551A0614

1

$3.53

In stock
