1984 Kawasaki KZ700-A1 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

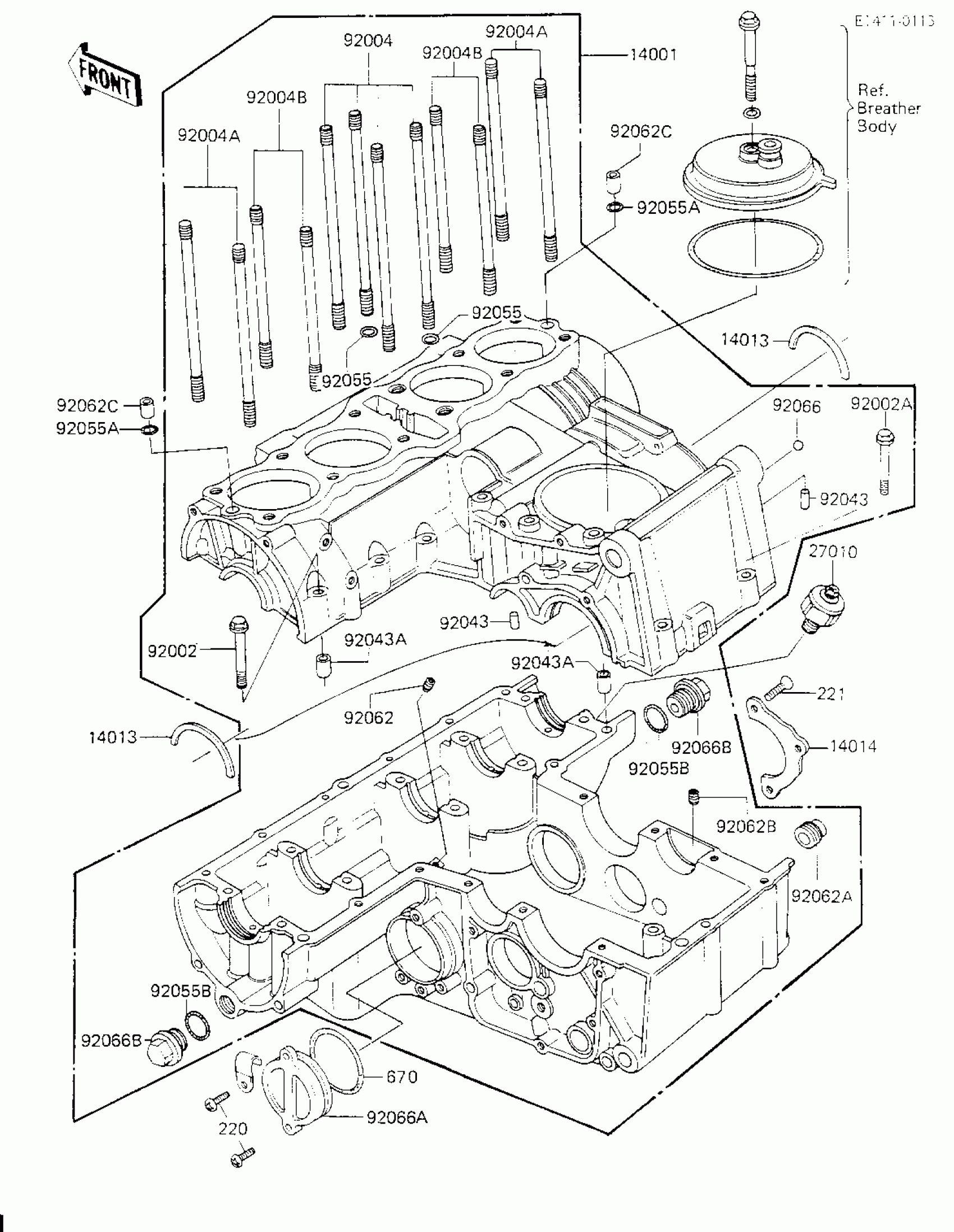

1984 Kawasaki KZ700-A1 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14001

SET-CRANKCASE

14001-5170

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION,SECONDARY SHAFT

14014-1007

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1155

1

$36.57

In stock

92002

BOLT,6X50

92002-1079

1

$5.17

In stock

92002A

BOLT,6X40

92002-1080

1

$3.74

In stock

92004

STUD,10X153

92004-062

1
Out of stock

92004A

STUD,10X133

92004-1004

1
Out of stock

92004B

STUD,10X116

92004-1007

1
Out of stock

92043

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043A

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92055

RING-O,8.8X1.9

92055-099

1

$3.72

In stock

92055A

O RING,10MM

670D2010

1

$1.63

In stock

92055B

RING-O,20X2

92055-1146

1

$6.82

In stock

92062

NOZZLE,BLACK

92062-011

1

$8.37

In stock

92062A

NOZZLE

92062-014

1

$9.56

In stock

92062B

NOZZLE,SILVER

92062-015

1

$3.22

In stock

92062C

NOZZLE

92062-016

1
Out of stock

92066

1

$4.58

In stock

92066A

1

$18.53

In stock

92066B

1

$9.11

In stock

220

1

$4.61

In stock

221

1

$1.98

In stock

670

O RING,46MM

670B3046

1

$4.94

In stock
