1984 Kawasaki KZ700-A1 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

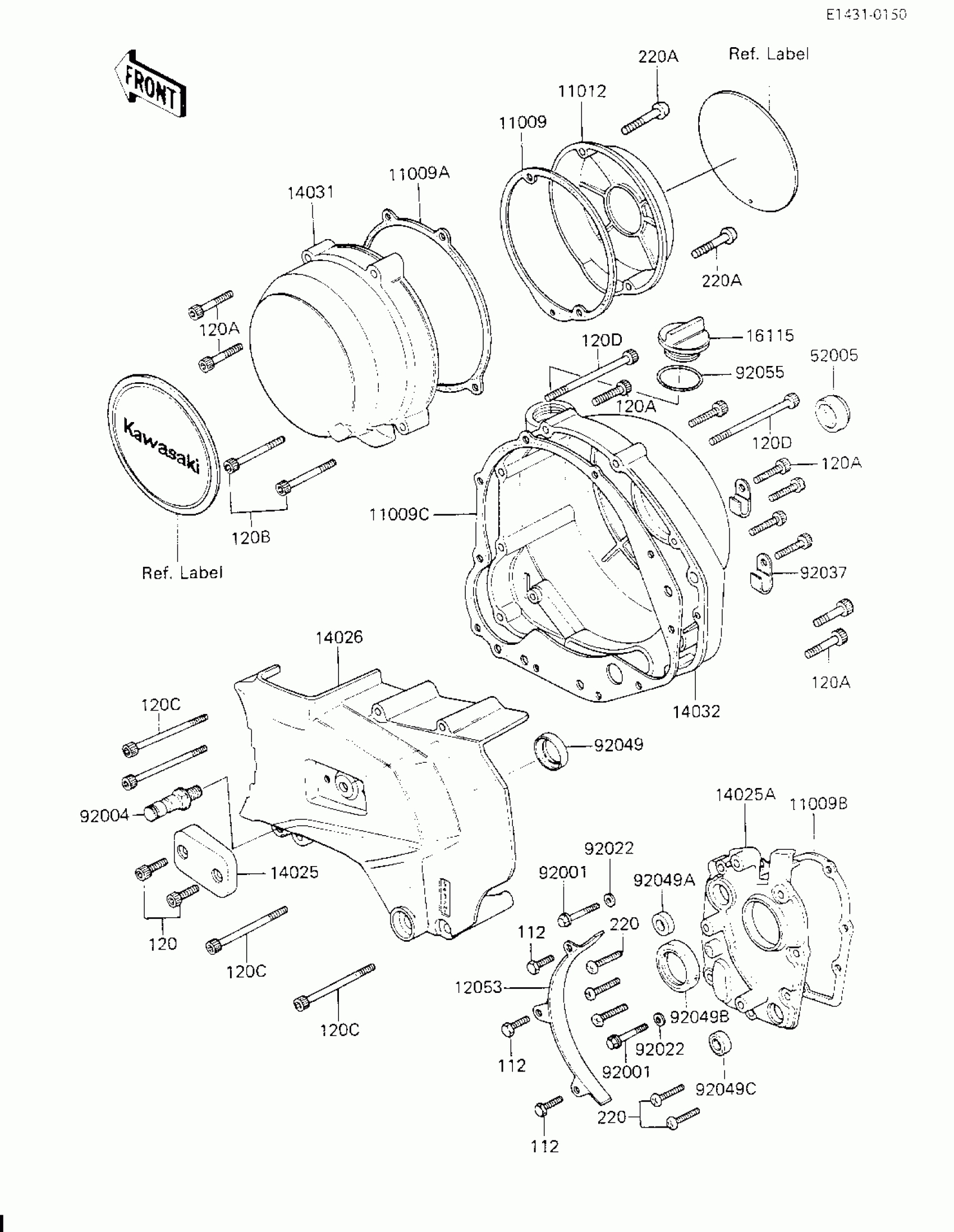

1984 Kawasaki KZ700-A1 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$6.45

In stock

11009A

1

$10.02

In stock

11009B

GASKET,TRANSMISSION COVER

11060-1056

1
Out of stock

11009C

1

$30.41

In stock

11012

CAP,PULSING COIL

11012-1377

1
Out of stock

12053

GUIDE-CHAIN

12053-1006

1

$10.54

In stock

14025

COVER,CLUTCH ADJUSTIN

14025-1249

1
Out of stock

14025A

COVER,MISSION

14025-1486

1
Out of stock

14026

COVER-CHAIN

14026-1081

1
Out of stock

14031

COVER-GENERATOR

14031-1167

1
Out of stock

14032

COVER-CLUTCH

14032-1091

1
Out of stock

16115

CAP-OIL FILLER

16115-013

1

$18.64

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92001

BOLT,HEX HEAD,6X35

92001-164

1

$5.75

In stock

92004

STUD,10MM,CHANGE PED

92004-1044

1
Out of stock

92022

1

$3.13

In stock

92037

1

$3.75

In stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1003

1
Out of stock

92049A

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049B

SEAL-OIL,SC325210

92050-024

1
Out of stock

92049C

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

112

BOLT-UPSET 6X14

112B0614

1
Out of stock

120

BOLT-SOCKET

120Z0614

1
Out of stock

120A

BOLT-SOCKET,6X30

120Z0630

1
Out of stock

120B

BOLT-SOCKET,6X40

120Z0640

1
Out of stock

120C

BOLT-SOCKET

120Z0670

1
Out of stock

120D

BOLT-SOCKET

120Z0680

1
Out of stock

220

1

$4.61

In stock

220A

1

$4.07

In stock
