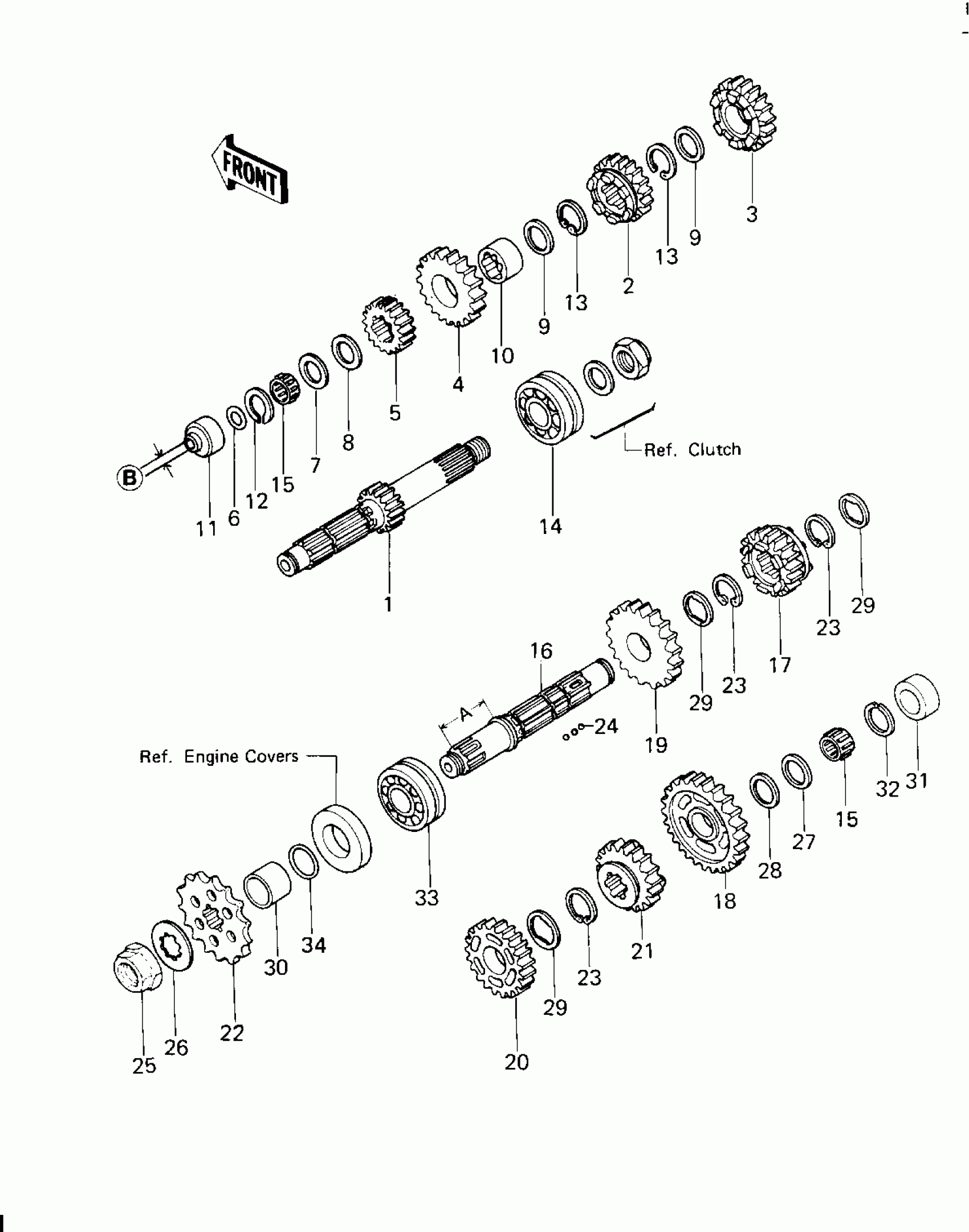

Kawasaki KZ650-F1 TRANSMISSION Diagram

#

Description
Price

1

SHAFT,DRIVE

13127-051

Unavailable

1

SHAFT-TRANSMISSION INPUT,15T

13127-1018

Unavailable

2

3RD GEAR,DRIVE SHAFT

13129-1032

Unavailable

3

4TH GEAR,DRIVE SHAFT

13129-1044

Unavailable

4

TOP GEAR,DRIVE SHAFT

13129-1045

Unavailable

5

GEAR,INPUT 2ND,19T

13130-041

Unavailable

6

O RING,7MM

670B1507

$0.98

6

O RING,8MM

670B1508

$1.00

7

WASHER,20.5X30X1,STEEL

92022-112

Unavailable

7

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

7

WASHER,20.3X30X0.7,STEEL

92022-1026

Unavailable

8

WASHER THRUST

92022-113

Unavailable

9

WASHER,25.3X30X1

92022-161

$8.10

10

BUSHING,INPUT TOP GEAR

92028-1007

$30.25

11

BUSHING,DRIVE SHAFT

92028-179

Unavailable

11

BUSHING,DRIVE SHAFT

92028-1032

$94.77

12

RING-SNAP,20MM

92033-015

$3.25

13

RING-SNAP,24MM

92033-026

$6.70

15

BEARING-NEEDLE,VS20/14A

92046-1030

$23.88

15

BEARING-NEEDLE,VS20/14A

92046-1030

$23.88

16

SHAFT,OUTPUT

13128-1012

Unavailable

17

TOP GEAR,OUTPUT SHAFT

13129-1033

Unavailable

18

GEAR,OUTPUT LOW,35T

13129-1046

Unavailable

19

GEAR,OUTPUT 2ND,31T

13129-1047

Unavailable

20

GEAR,OUTPUT 3RD,28T

13129-1048

Unavailable

21

GEAR,OUTPUT 4TH,26T

13129-1049

Unavailable

22

ENGINE SPROCKET,16T

13144-063

$93.60

22

SPROCKET-OUTPUT,17T(#530)

13144-1009

Unavailable

23

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

24

BALL-STEEL,5/32

600A0500

$0.68

25

NUT,20MM

92015-1254

$11.31

26

WASHER

92200-1065

$4.97

27

WASHER,20.5X30X1,STEEL

92022-112

Unavailable

27

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

28

WASHER THRUST

92022-113

Unavailable

29

WASHER,TOOTHED,30.5X38X1

92024-069

$5.37

30

COLLAR,ENG SPROCKET

92027-288

$40.09

31

BUSHING,26X34X16.6

92028-180

$29.37

32

RING-SNAP,20MM

92033-015

$3.25

33

BEARING-BALL,83993SH2-CS

92045-035

$74.98

34

RING-O

92055-035

$3.81
