1980 Kawasaki KZ650-F1 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

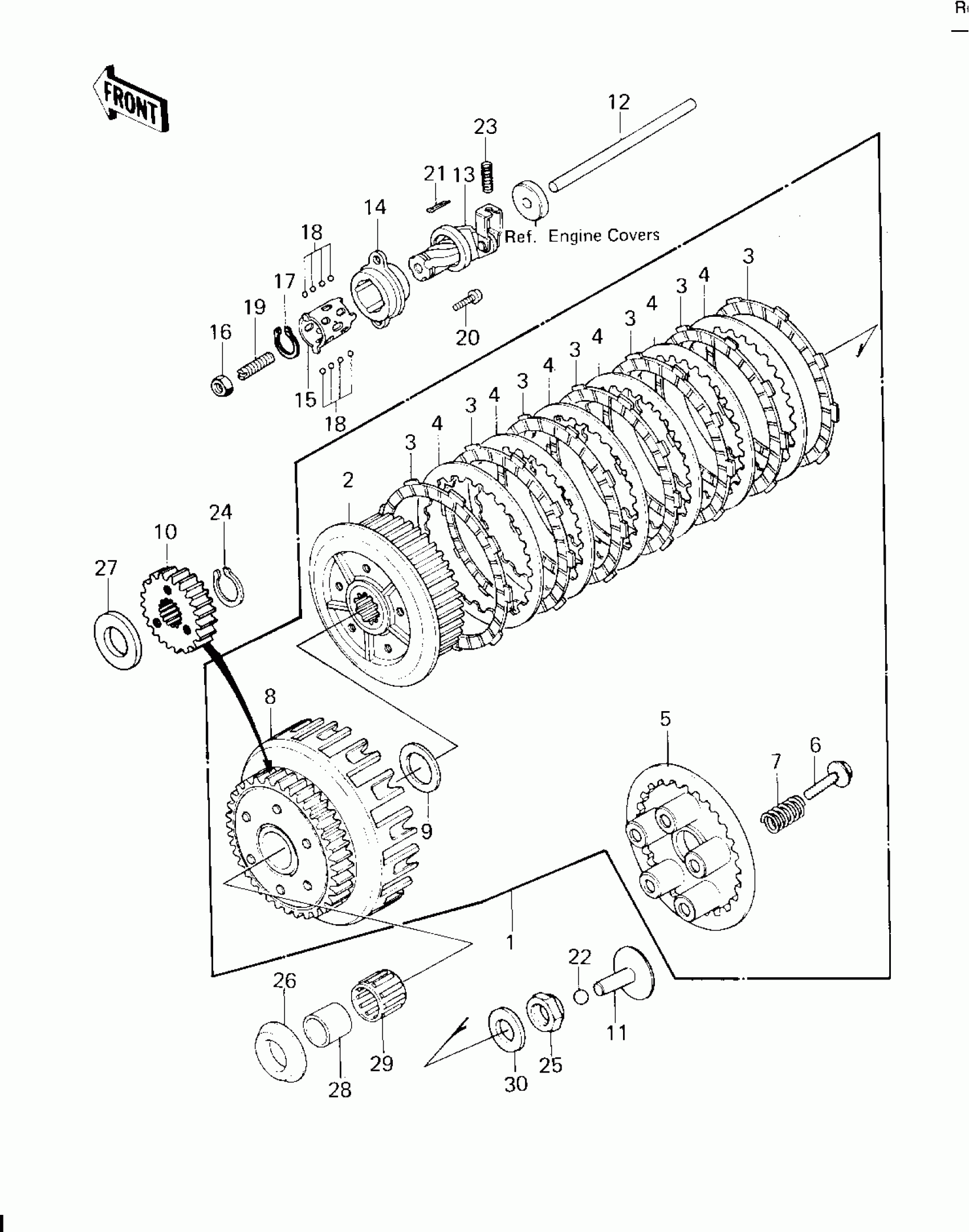

1980 Kawasaki KZ650-F1 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH-ASSY

13081-1043

1
Out of stock

1

CLUTCH-ASSY

13081-1043

1
Out of stock

2

HUB-CLUTCH

13087-043

1
Out of stock

3

PLATE,CLUTCH FRICTION

13088-030

1
Out of stock

4

PLATE,CLUTCH STEEL

13089-022

1
Out of stock

5

PLATE,CLUTCH SPRING

13187-006

1
Out of stock

6

BOLT,FLANGED,6X18

92001-1066

1
Out of stock

7

SPRING,CLUTCH

92081-1033

1
Out of stock

8

HOUSING,CLUTCH

13095-1022

1
Out of stock

8

HOUSING,CLUTCH

13095-1022

1
Out of stock

9

SPACER,25.5X47X2.5

92026-022

1
Out of stock

10

GEAR,SECONDARY SHAFT,29T

13121-037

1
Out of stock

11

PUSHER,CLUTCH SPRG P

13116-022

1
Out of stock

12

ROD,CLUTCH PUSH

13116-035

1
Out of stock

12

ROD,CLUTCH PUSH

13116-1007

1
Out of stock

13

INNER,CLUTCH RELEASE

13102-027

1
Out of stock

14

OUTER,CLUTCH RELEASE

13118-011

1
Out of stock

15

RETAINER

13197-004

1
Out of stock

16

NUT-HEX-SMALL,8MM

318B0800

1
Out of stock

17

CIRCLIP-TYPE-C,15MM

480J1500

1
Out of stock

18

BALL,STEEL,1/8"

600A0400

1
Out of stock

19

SCREW,SLOTTED,8X25

92014-014

1
Out of stock

20

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

21

PIN-COTTER,1.6X15

550D1615

1
Out of stock

22

BALL-STEEL,3/8"

600A1200

1
Out of stock

23

SPRING,CLUTCH RELEASE

92081-069

1
Out of stock

24

CIRCLIP-TYPE-C,22MM

480J2200

1
Out of stock

25

NUT,20MM

92015-1555

1
Out of stock

26

SPACER,THRUST,T=5.5

92026-116

1
Out of stock

27

COLLAR,23X46X4.5

92027-263

1
Out of stock

28

BUSHING,25X32X23.6

92028-178

1
Out of stock

29

BEARING-NEEDLE,KTV323723

92046-028

1
Out of stock

30

WASHER

92125-002

1
Out of stock
