1980 Kawasaki KZ650-F1 Accelerator Pump Diagram

← All diagrams

Find the part on the Accelerator Pump diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

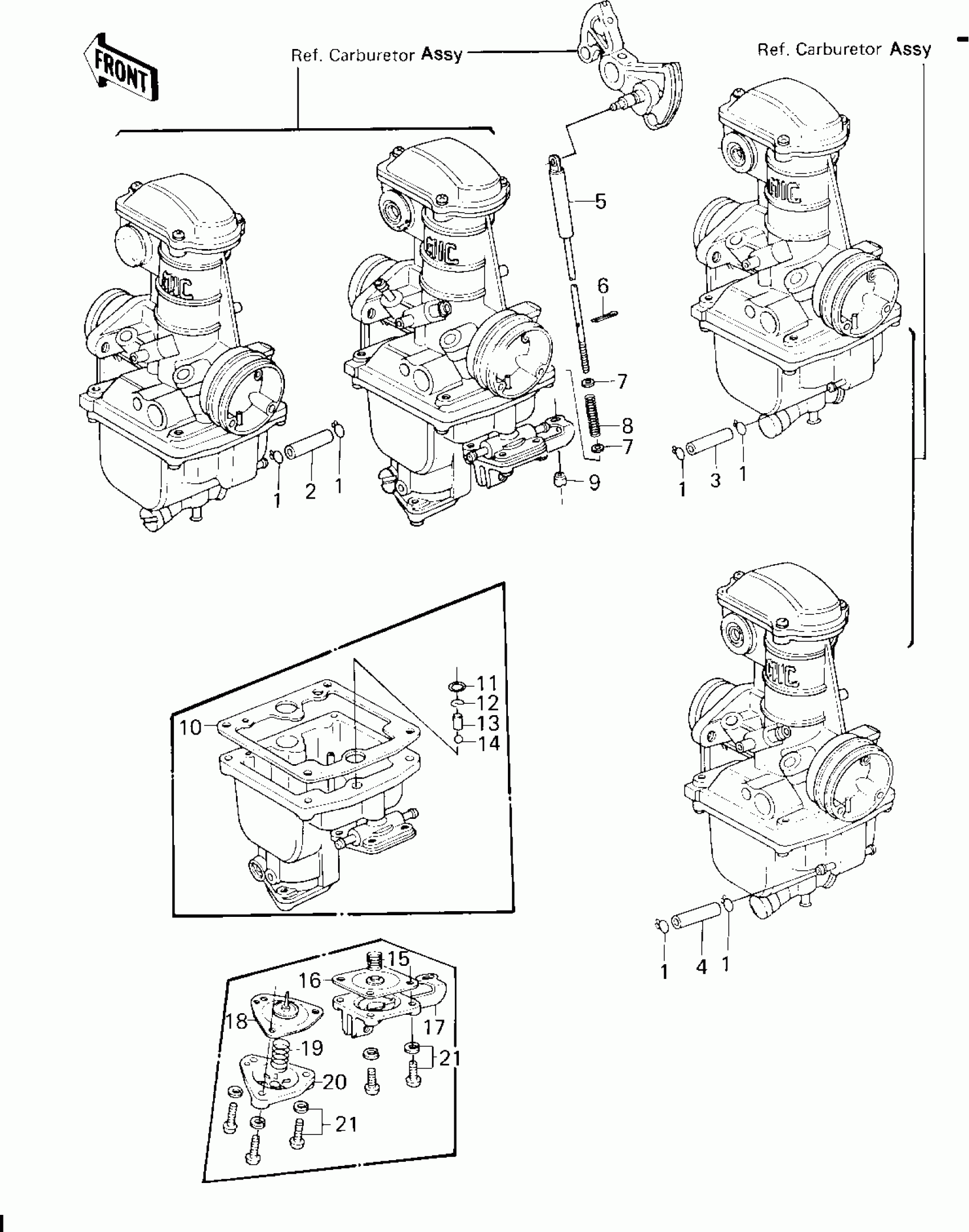

1980 Kawasaki KZ650-F1 Accelerator Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLAMP,TUBE

92037-1124

1
Out of stock

2

TUBE,3.5X7.5X47.5

92059-1072

1
Out of stock

3

TUBE,3.5X7.5X64.5

92059-1071

1
Out of stock

4

TUBE,3.5X7.5X47.5

92059-1072

1
Out of stock

5

ROD ASSY,PUMP

46102-1007

1
Out of stock

6

COTTER PIN,1.0X6

550D1006

1
Out of stock

7

WASHER,PUMP ROD

92022-1138

1
Out of stock

8

SPRING,PUMP ROD

92081-1138

1
Out of stock

9

NUT,PUMP ROD

92015-1075

1
Out of stock

10

GASKET,FLOAT CHAMBER

11009-1562

1
Out of stock

11

"O" RING,CHECK VALVE

92055-1059

1
Out of stock

12

CLAMP,SPRING,CHECK VL

92037-1123

1
Out of stock

13

WEIGHT,PUMP,CHECK VLV

13042-1004

1
Out of stock

14

BALL,STEEL,CHECK VALV

92140-1003

1
Out of stock

15

SPRING,PUMP DIAPHRAGM

92081-1139

1
Out of stock

16

DIAPHRAGM,PUMP

43028-1012

1
Out of stock

17

COVER ASSY,PUMP

14025-1139

1
Out of stock

18

DIAPHRAGM,SENSOR

43028-1010

1
Out of stock

19

SPRING,SENSOR DIAPHRA

92081-1137

1
Out of stock

20

COVER,SENSOR

14025-1121

1
Out of stock

21

SCREW-PAN-WS-CROS

223B0414

1
Out of stock
