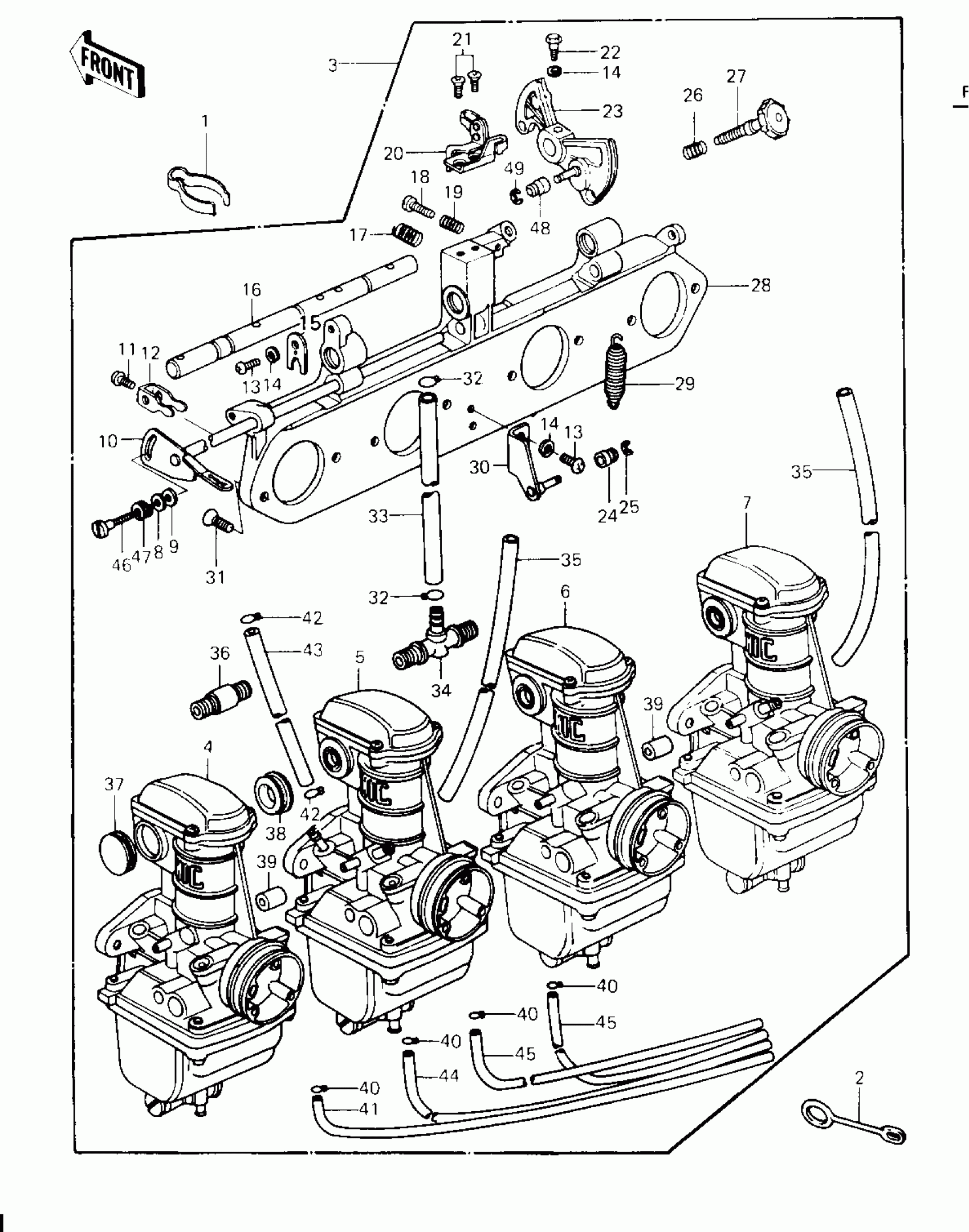

Kawasaki KZ650-F1 CARBURETOR ASSY Diagram

#

Description
Price

1

CLAMP,AIR VENT HOSE

92037-1092

$7.08

2

CLAMP,OVER FLOW PIPE

92037-134

$11.03

3

CARBURETOR ASSY

16001-1208

$1,012.27

3

CARBURETOR ASSY

16001-1069

$1,137.51

4

CARBURETOR,L.H,OUT

16001-1070

$301.42

5

CARBURETOR,L.H,INSIDE

16001-1071

$370.07

6

CARBURETOR,R.H,INSIDE

16001-1072

$301.64

7

CARBURETOR,R.H,OUT

16001-1073

$370.07

8

WASHER PLAIN 5MM

410B0500

Unavailable

9

WASHER,PLAIN,NYLON

16039-019

Unavailable

10

SHAFT,STARTER PLUNGE

16041-021

$54.71

11

SCREW,PAN HEAD,5X7

16046-007

Unavailable

12

LEVER,STARTER PLUNGE

13168-1026

Unavailable

13

SCREW-PAN-CROS

220B0514

Unavailable

14

WASHER SPRING 5MM

461F0500

Unavailable

15

PLATE,SHAFT STOPPER

16055-012

Unavailable

16

SHAFT,CARB CONNECTIO

16041-017

Unavailable

17

SPRING,CABLE PULLY

16040-022

Unavailable

18

SCREW

16021-032

$5.75

19

SPRING,THROTTLE ADJST

16022-010

Unavailable

20

BRACKET,THROTTLE CAB

16077-017

$59.49

21

SCREW CNTSNK HD 5X10

221B0510A

$2.79

22

BOLT,HEX HEAD,5X14

16067-006

Unavailable

23

PULLEY,THROTTLE CABLE

16068-015

$67.07

24

RING

16073-016

Unavailable

25

CIRCLIP 3MM

482K3000

Unavailable

26

SPRING,THROTTLE STOP

16022-017

Unavailable

27

SCREW,THROTTLE STOP

16021-1010

$33.67

28

HOLDER,CARBURETOR

16065-049

$114.86

29

SPRING,THROTTLE PULL

92081-1028

Unavailable

30

BRACKET,THROTTLE CABL

16077-016

$14.64

31

SCREW,6X14

16033-029

Unavailable

32

CLAMP,TUBE

92037-1184

$1.09

33

TUBE,7.5X12.5X225

92059-1123

Unavailable

34

FITTING

92005-1010

Unavailable

35

HOSE,AIR VENT,5X8X250

92059-1045

Unavailable

36

FITTING

92005-1009

Unavailable

37

CAP,RUBBER

16039-042

Unavailable

38

GROMMET,CARBURETOR

92071-104

Unavailable

39

HOSE,6X11.5X16

92059-141

Unavailable

40

CLAMP,OVERFLOW HOSE

92037-173

Unavailable

41

HOSE,FUEL OVERFLOW

92059-147

Unavailable

42

CLAMP,TUBE

92037-072

$5.51

43

TUBE,5.3X10.5X140

92059-1019

Unavailable

44

HOSE,FUEL OVERFLOW

92059-134

Unavailable

44

HOSE,FUEL OVERFLOW

92059-147

Unavailable

45

HOSE,FUEL OVERFLOW

92059-134

Unavailable

46

SCREW

16046-005

Unavailable

47

SPRING,F

16040-009

Unavailable

48

RING

16073-016

Unavailable

49

CIRCLIP 3MM

482K3000

Unavailable
