Description

Price

1

TOP,MIXING CHAMBER

16005-027

$21.92

2

SCREW-PAN-WS-CROS

223B0414

$1.16

3

WASHER SPRING 4MM

461F0400

Unavailable

4

GASKET,CHAMBER TOP

16019-031

$44.37

5

NUT,5MM

16003-013

$9.12

6

WASHER SPRING 5MM

461F0500

Unavailable

7

WASHER,PLAIN

16039-016

Unavailable

8

SCREW,SLOTTED

16046-012

Unavailable

9

SEAT-SPRING

16057-002

Unavailable

10

SPRING

16040-026

Unavailable

11

BOLT,HEX HEAD,5X14

16067-006

Unavailable

12

LEVER,THROTTLE

39075-1001

Unavailable

13

SCREW,PAN HEAD,3X14

16033-031

Unavailable

14

BRACKET,THROTTLE VALV

39184-1001

$36.31

15

CLAMP,E-TYPE

16008-010

$7.02

16

JET NEEDLE,5CL30

16009-1048

Unavailable

17

VALVE,THROTTLE,CA1.75

16025-1025

$73.15

18

CIRCLIP

16076-003

Unavailable

19

COLLAR

16073-014

Unavailable

20

CAP,STARTER PLUNGER

16039-015

$5.15

21

CAP,STARTER PLUNGER

16012-015

Unavailable

22

O RING,9MM

670B1509

$2.72

23

SPRING,STARTER PLUG

16013-008

Unavailable

24

PLUNGER,STARTER

16016-021

Unavailable

25

NEEDLE JET,AO-5

16017-1034

Unavailable

26

PIPE,BLEED

49122-1006

Unavailable

26

PIPE,BLEED

16047-005

Unavailable

27

"0" RING,MAIN JET COV

16038-016

$2.23

28

MAIN JET,#A97.5R

92063-1035

Unavailable

28

MAIN JET,#A100

92063-1033

Unavailable

28

MAIN JET,#A105R

92063-1042

Unavailable

28

MAIN JET NO 92.5R

92063-068

Unavailable

28

JET-MAIN,#A95R

92063-1031

Unavailable

29

WASHER FLOAT VLV SEAT

16029-004

$2.97

30

FLOAT VALVE ASSY

16030-1001

$61.27

31

JET-PILOT,#A15

92064-1018

$19.25

32

FLOAT

16031-031

$176.39

33

PIN,FLOAT

16032-003

$5.95

34

SCREW PAN HEAD 4X16

220B0416

Unavailable

35

SCREW,GUIDE

16049-007

Unavailable

36

SCREW,PILOT ADJUSTIN

16014-1020

$17.07

37

SPRING,PILOT AIR SCREW

16022-007

$7.97

38

PLATE,JET NEEDLE

13169-1107

Unavailable

39

COLLAR,THROTTLE VALVE

92027-1103

$7.53

40

WASHER,THROTTLE VALVE

92022-1024

$5.25

41

SPRING,JET NEEDLE

92081-1072

Unavailable

42

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

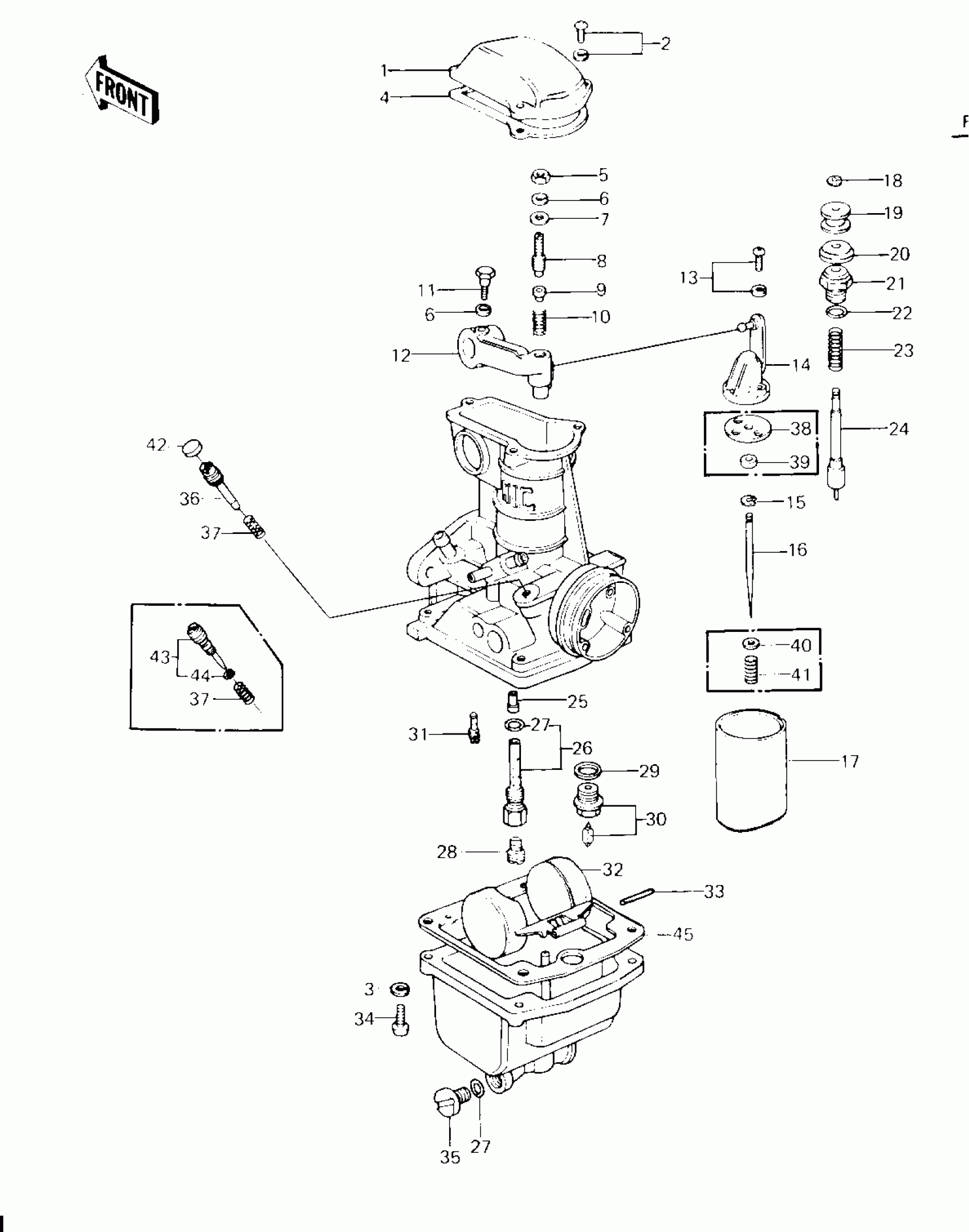

Kawasaki KZ650-F1 CARBURETOR PARTS Diagram

TOP,MIXING CHAMBER

SCREW-PAN-WS-CROS

WASHER SPRING 4MM

GASKET,CHAMBER TOP

NUT,5MM

WASHER SPRING 5MM

WASHER,PLAIN

SCREW,SLOTTED

SEAT-SPRING

SPRING

BOLT,HEX HEAD,5X14

LEVER,THROTTLE

SCREW,PAN HEAD,3X14

BRACKET,THROTTLE VALV

CLAMP,E-TYPE

JET NEEDLE,5CL30

VALVE,THROTTLE,CA1.75

CIRCLIP

COLLAR

CAP,STARTER PLUNGER

CAP,STARTER PLUNGER

O RING,9MM

SPRING,STARTER PLUG

PLUNGER,STARTER

NEEDLE JET,AO-5

PIPE,BLEED

PIPE,BLEED

"0" RING,MAIN JET COV

MAIN JET,#A97.5R

MAIN JET,#A100

MAIN JET,#A105R

MAIN JET NO 92.5R

JET-MAIN,#A95R

WASHER FLOAT VLV SEAT

FLOAT VALVE ASSY

JET-PILOT,#A15

FLOAT

PIN,FLOAT

SCREW PAN HEAD 4X16

SCREW,GUIDE

SCREW,PILOT ADJUSTIN

SPRING,PILOT AIR SCREW

PLATE,JET NEEDLE

COLLAR,THROTTLE VALVE

WASHER,THROTTLE VALVE

SPRING,JET NEEDLE

PLUG,PILOT AIR SCREW,6.9X2
