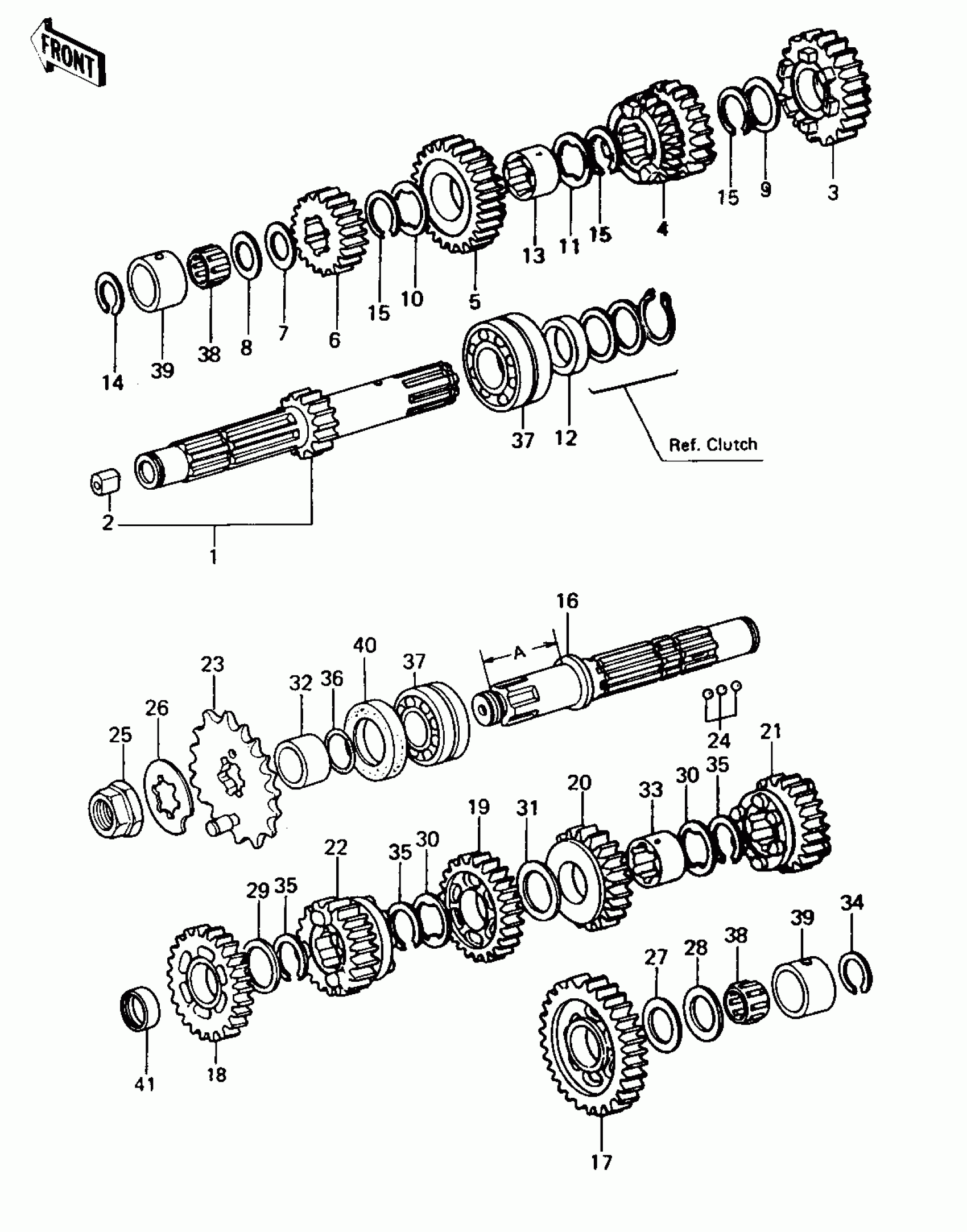

Kawasaki KZ440-B1 TRANSMISSION ('80 B1) Diagram

#

Description
Price

1

SHAFT,DRIVE,13T

13127-1004

Unavailable

2

BUSHING,DRIVE SHAFT

92028-155

Unavailable

3

GEAR,INPUT5TH,23T

13129-1277

Unavailable

4

3RD-4TH GEAR,DRV SHFT

13129-1054

Unavailable

5

TOP GEAR,DRV SHAFT

13129-1055

Unavailable

6

2ND GEAR,DRV SHAFT

13129-1062

Unavailable

7

WASHER,20.5X30X1,STEEL

92022-112

$6.75

8

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

9

WASHER,25.3X30X0.5

92022-159

$8.37

10

WASHER,TOOTHED,25.5X32X1

92024-033

$8.03

11

WASHER,TOOTHED,22.5X31X0.5

92024-038

$4.67

12

COLLAR

92027-289

Unavailable

13

BUSHING,OUTPUT 3RD GR

92028-1002

$45.12

14

RING-SNAP,20MM

92033-015

$3.25

15

RING-SNAP,24MM

92033-026

$6.70

16

SHAFT,OUTPUT

13128-1015

Unavailable

17

LOW GEAR,OUTPUT SHAFT

13129-1056

Unavailable

18

2ND GEAR,OUTPUT,28T

13129-1172

Unavailable

19

3RD GEAR,OUTPUT SHAFT

13129-1058

Unavailable

20

4TH GEAR,OUTPUT SHAFT

13129-1059

Unavailable

21

5TH GEAR,OUTPUT SHAFT

13129-1060

Unavailable

22

TOP GEAR,OUTPUT SHAFT

13129-1061

Unavailable

23

ENGINE SPROCKET

13144-1003

Unavailable

24

BALL-STEEL,5/32

600A0500

$0.68

25

NUT,20MM

92015-1254

$11.31

26

WASHER,SPLINE

92022-1083

Unavailable

27

WASHER,20.5X30X1,STEEL

92022-112

$6.75

28

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

29

WASHER,25.3X30X0.5

92022-159

$8.37

30

WASHER,TOOTHED,22.5X31X0.5

92024-038

$4.67

31

SPACER,30X38X1.0

92026-079

$8.63

32

COLLAR,ENG SPROCKET

92027-288

$40.09

33

BUSHING,OUTPUT GEAR

92028-1268

$29.44

34

RING-SNAP,20MM

92033-015

$3.25

35

RING-SNAP,24MM

92033-026

$6.70

36

RING-O

92055-035

$3.81

37

BEARING,B,5205ANX4PX

92045-031

$68.94

38

BEARING-NEEDLE,20R2513P

92046-044

$21.78

39

RACE,OUT & DRV SHAFT

92048-1001

$14.64

40

SEAL-OIL,SC325210

92050-024

$6.23

41

BUSHING,2ND GEAR

92028-1177

$20.54
