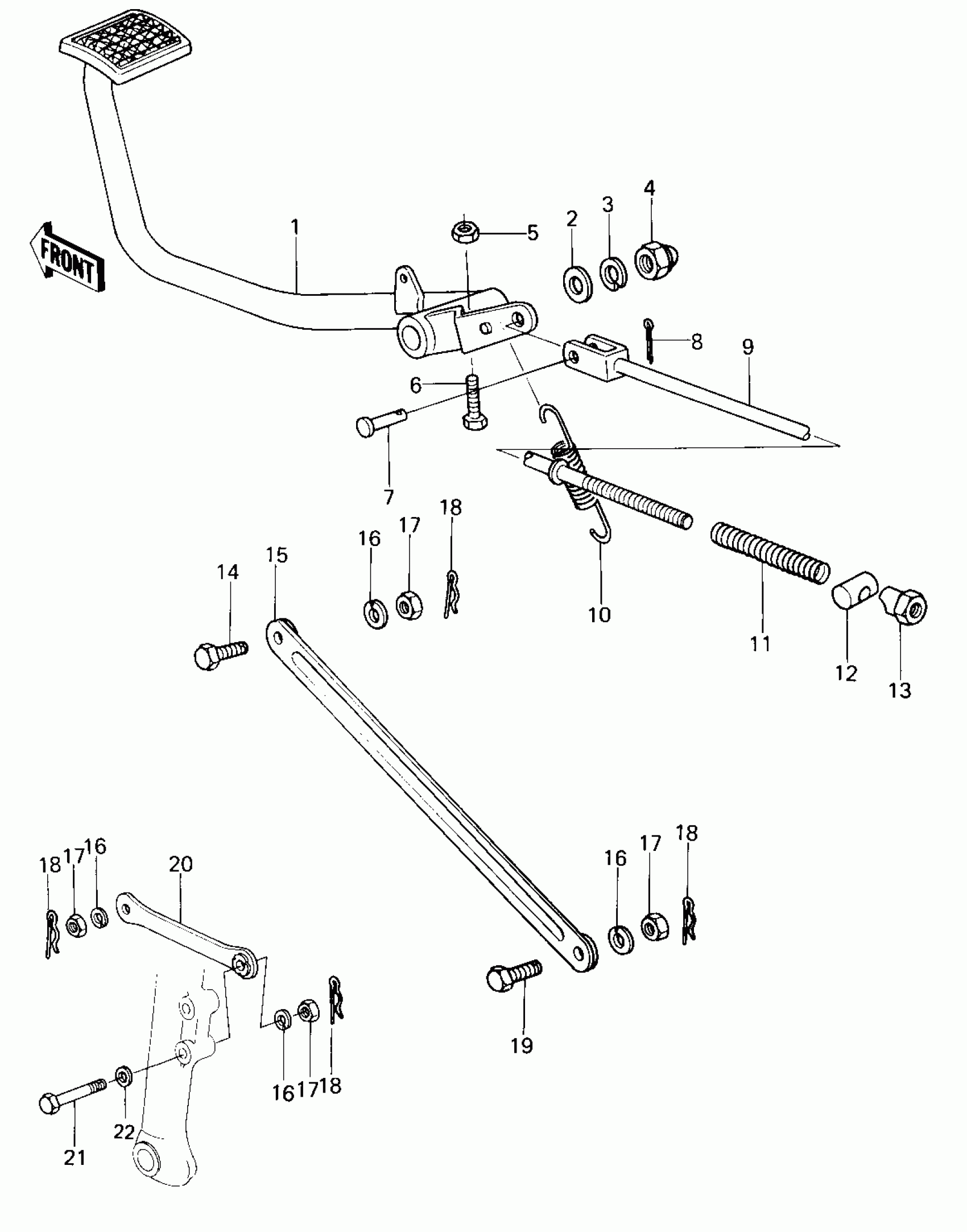

Kawasaki KZ440-B1 BRAKE PEDAL/TORQUE LINK ('80 B1) Diagram

#

Description
Price

1

PEDAL,BRAKE

43001-1010

$193.15

2

WASHER,8.5X20X1.6

92022-1561

$3.29

3

WASHER SPRING 8MM

461F0800

Unavailable

4

NUT,CAP AND LOCK,8MM

92019-013

$11.31

5

NUT 6MM

311B0600

Unavailable

6

BOLT-UPSET,6X20

112G0620

Unavailable

7

PIN,BRAKE ROD FITTING

92043-090

Unavailable

8

PIN COTTER 2.5X16

550D2516

$2.27

9

ROD,BRAKE

43011-026

$17.34

10

SPRING,BRAKE PEDAL

43005-029

Unavailable

11

SPRING,BRAKE ROD

43012-001

$3.54

12

PIN,BRAKE ROD

92043-065

$4.23

13

NUT,BRAKE ROD

92015-042

$4.67

14

BOLT,10X25

92003-017

Unavailable

15

TORQUE LINK REAR BRK

43007-016

Unavailable

16

WASHER SPRING 10MM

461F1000

Unavailable

17

NUT-HEX-FINE,10MM

315B1000

Unavailable

18

PIN-SNAP,8MM

554A0800

Unavailable

19

BOLT,10X35

92003-034

$12.58

20

ROD,TORQUE

43007-1004

$12.78

21

BOLT,10X62

92001-1070

$2.69
