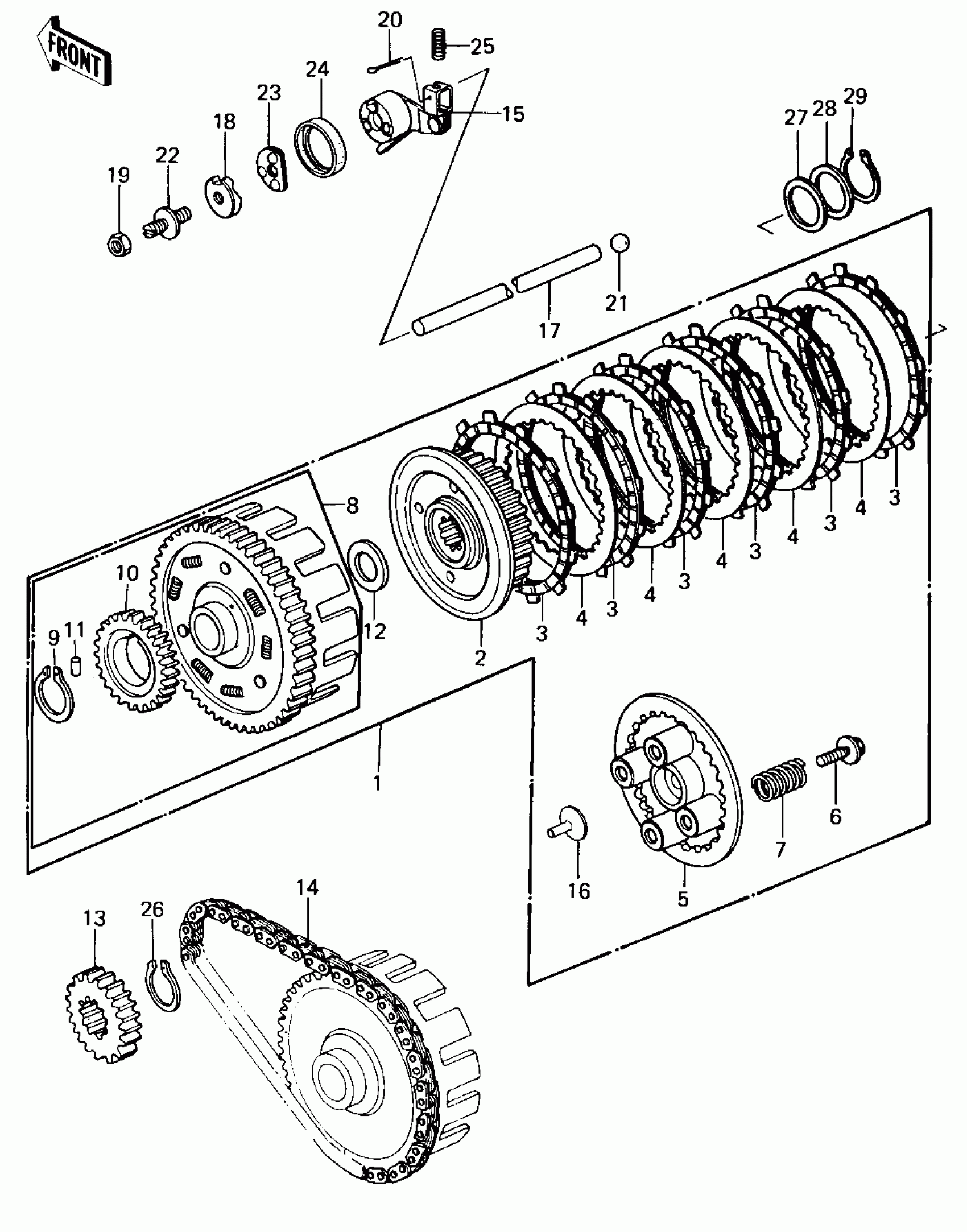

Kawasaki KZ440-B1 CLUTCH ('80 B1) Diagram

#

Description
Price

1

CLUTCH-ASSY

13081-1019

Unavailable

2

HUB,CLUTCH

13087-040

Unavailable

3

PLATE,FRICTION

13088-1001

Unavailable

4

PLATE-CLUTCH,T=2.0

13089-026

$9.73

5

PLATE,CLUTCH SPRING

13187-1003

Unavailable

6

BOLT,FLANGED,6X18

92001-1066

$4.67

7

SPRING,CLUTCH

92081-1033

$5.64

8

HOUSING,CLUTCH

13095-1008

Unavailable

9

CIRCLIP, 38MM

480J3800

$4.75

10

GEAR,OIL PUMP,34T

59051-1001

$50.29

11

PIN, DOWELL, 6X6

610A0606

$2.10

12

WASHER,CLUTCH THRUST

92022-288

$12.12

13

SPROCKET,PRIMARY

13121-030

Unavailable

14

CHAIN,PRIMARY DRIVE

13122-005

Unavailable

15

RELEASE, CLUTCH

13102-1004

Unavailable

16

PUSHER,CLTCH SPRG PLT

13116-029

Unavailable

17

ROD,PUSH,CLUTCH

13116-1017

Unavailable

18

CAM-RELEASE,CLUTCH

13119-1003

$15.92

19

NUT-HEX-SMALL,8MM

318B0800

$0.54

20

PIN-COTTER,1.6X15

550D1615

$1.80

21

BALL-STEEL,3/8"

600A1200

$1.14

22

SCREW,8MM

92009-1009

Unavailable

23

BEARING,BALL,CLUTCH

92045-1001

$8.82

24

SEAL-OIL,CLUTCH RELEASE

92049-1003

$8.29

25

SPRING,CLUTCH RETURN

92081-1058

Unavailable

26

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

27

WASHER,25.3X32X0.5

92022-225

$4.18

28

WASHER,CLUTCH TRUST

92022-302

Unavailable

29

CIRCLIP-TYPE-C,24MM

480J2400

$4.65
