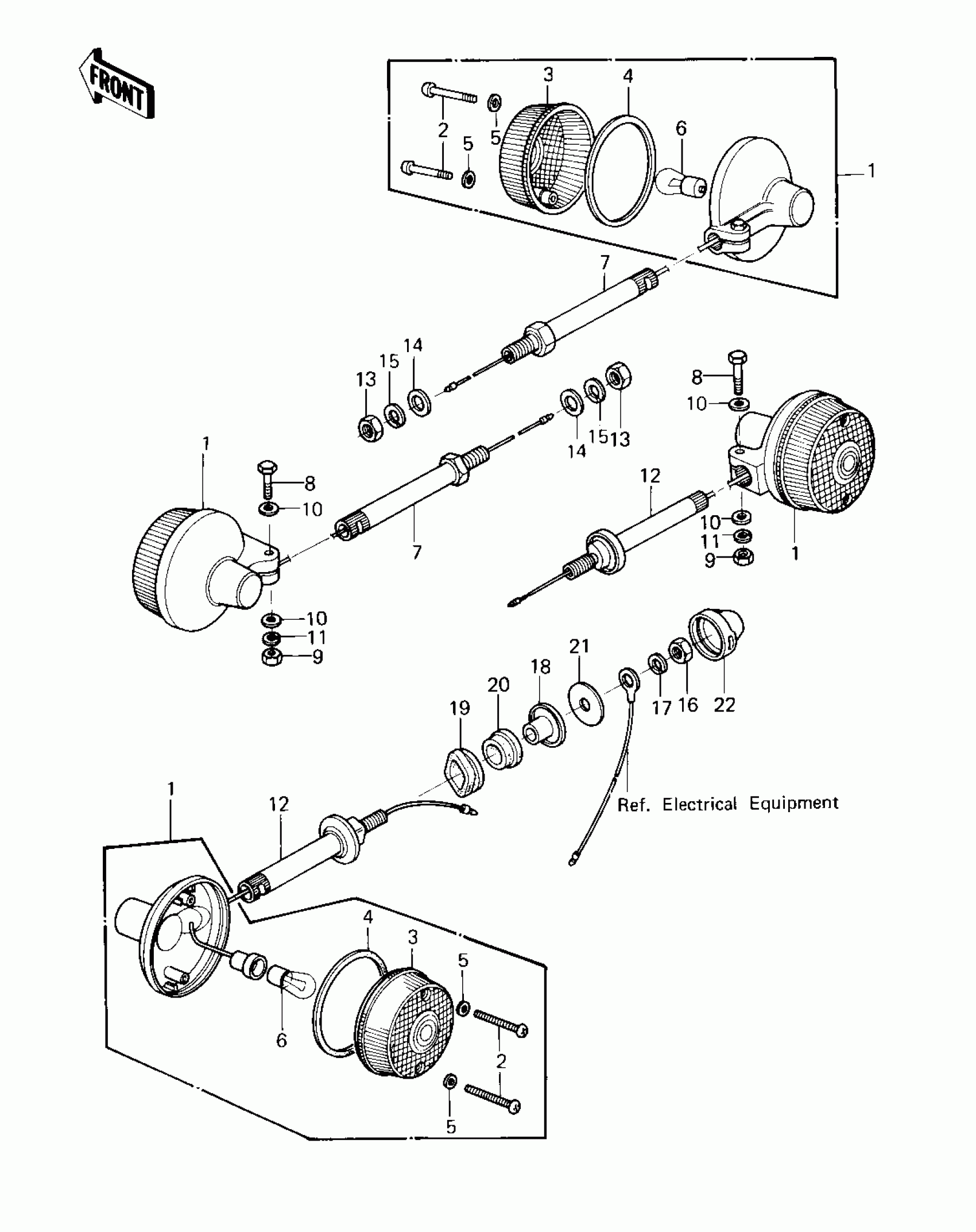

Kawasaki KZ250 TURN SIGNALS ('80 D1) Diagram

#

Description
Price

1

LAMP-SIGNAL

23040-1024

Unavailable

2

SCREW-PAN HEAD,4X20

220E0420A

$2.25

3

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$8.79

4

GASKET,SIGNAL LAMP

23050-003

$4.39

5

WASHER,PLAIN,4MM

23058-002

$1.77

6

BULB,12V 32CP(23W)

92069-055

$3.95

7

BRACKET,SIGNAL LAMP

23051-1024

$33.35

8

BOLT-UPSET

112G0630

Unavailable

9

NUT 6MM

311B0600

Unavailable

10

WASHER PLAIN 6MM

411B0600

Unavailable

11

WASHER SPRING 6MM

461F0600

Unavailable

12

BRACKET-SIGNAL LAMP

23051-1014

$39.78

13

NUT-HEX-FINE,10MM

315B1000

Unavailable

14

WASHER-PLAIN,10MM

411D1000

$4.25

15

WASHER SPRING 10MM

461F1000

Unavailable

16

NUT-HEX-FINE,10MM

315B1000

Unavailable

17

WASHER SPRING 10MM

461F1000

Unavailable

18

COLLAR

92027-147

$11.53

19

DAMPER,LAMP

92075-128

$4.42

20

DAMPER RUBBER,SIG LM

92075-158

$4.15

21

WASHER,PLAIN

92022-327

$2.86

22

RUBBER CAP

92073-036

$5.03
