1980 Kawasaki KZ250 Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1980 Kawasaki KZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

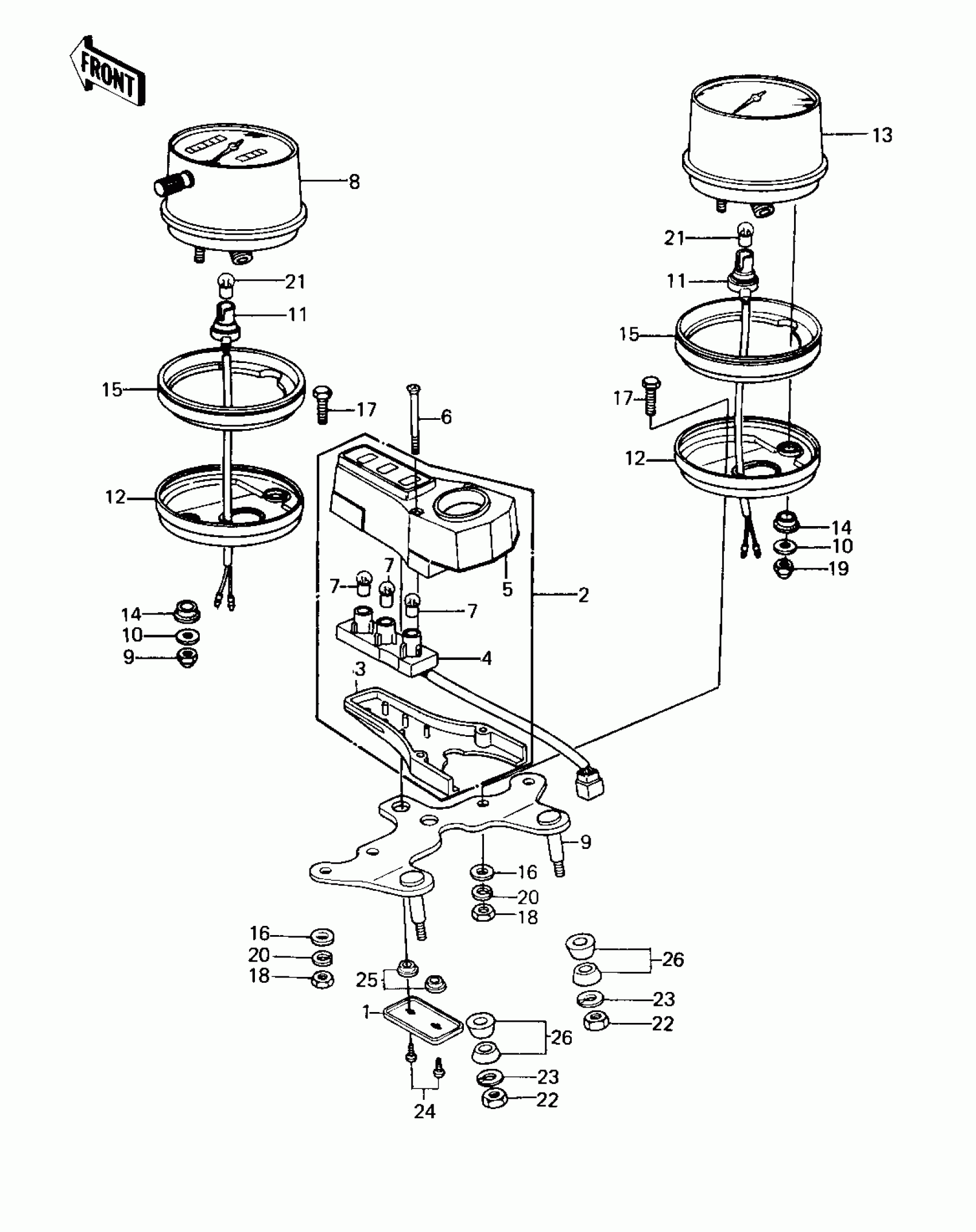

1980 Kawasaki KZ250 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE,PILOT LAMP

13169-1136

1
Out of stock

2

LAMP ASSY,PILOT

23016-1017

1
Out of stock

3

COVER,METER BRACKET

14025-1101

1
Out of stock

4

SOCKET ASSY,INDICATOR

25011-056

1
Out of stock

5

COVER,INDICATOR LAMP

25023-1018

1
Out of stock

6

SCREW-CSK-RD-CROS,4X45

222C0445

1
Out of stock

7

BULB 12V 3W

92069-018

1
Out of stock

8

SPEEDOMETER,MPH

25005-1060

1
Out of stock

8

SPEEDOMETER.ASSY,KPH

25005-1072

1
Out of stock

9

BRACKET,METER

25008-1013

1
Out of stock

10

WASHER,5.2X16X1.2

25009-004

1
Out of stock

11

SOCKET ASSY

25010-022

1
Out of stock

12

COVER,METER

25012-025

1
Out of stock

13

TACHOMETER ASSY

25015-1016

1
Out of stock

14

DAMPER,METER

25019-013

1
Out of stock

15

SHOCK DAMPER,SPEEDMET

25019-031

1
Out of stock

16

WASHER PLAIN 6MM

411B0600

1
Out of stock

17

BOLT,HEX HEAD,6X14

92003-204

1
Out of stock

18

NUT

92015-078

1
Out of stock

19

NUT-CAP,5MM

322N0500

1
Out of stock

20

WASHER-SPRING,6MM,BLACK

461K0600

1
Out of stock

21

BULB 12V 3W

92069-018

1
Out of stock

22

NUT 6MM

311B0600

1
Out of stock

23

WASHER SPRING 6MM

461F0600

1
Out of stock

24

SCREW,TAPPING,4X10

92009-1040

1
Out of stock

25

DAMPER,8MM

92075-1138

1
Out of stock

26

DAMPER RUBBER,METER

92075-248

1
Out of stock
