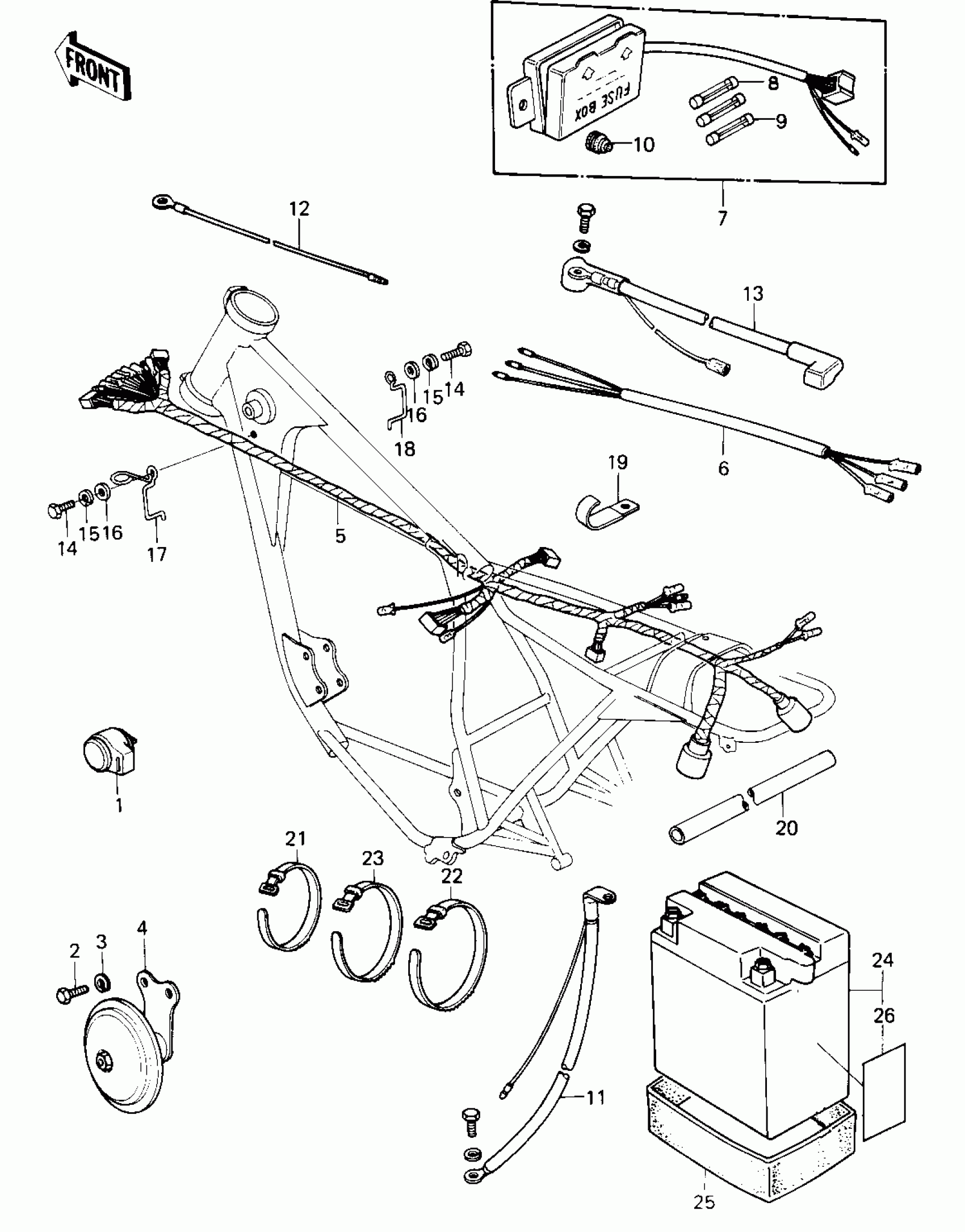

Find the part on the Chassis Electrical Equipment diagram for your 1980 Kawasaki KZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KZ250 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

2

BOLT-UPSET,6X12

112G0612

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

HORN

27003-1348

1
Out of stock

5

WIRING HARNESS,MAIN

26001-1129

1
Out of stock

6

WIRING HARNESS,REAR

26002-041

1
Out of stock

7

FUSE-ASSY

26004-035

1
Out of stock

8

FUSE,20A,L=25

26006-005

1
Out of stock

9

FUSE,10A,L=25

26006-003

1
Out of stock

10

DAMPER,FUSE

92075-279

1
Out of stock

11

WIRE-LEAD,BATTERY GROUND

26010-052

1
Out of stock

12

WIRE-LEAD,L=285

26011-095

1
Out of stock

13

WIRE,MAGNETIC SWITCH

26011-1035

1
Out of stock

14

BOLT-UPSET,6X12

112G0612

1
Out of stock

15

WASHER SPRING 6MM

461F0600

1
Out of stock

16

WASHER PLAIN 6MM

411B0600

1
Out of stock

17

CLAMP

92037-202

1
Out of stock

18

CLAMP

92037-203

1
Out of stock

19

CLAMP

92037-113

1
Out of stock

20

TUBE,8X9X200

92059-1150

1
Out of stock

21

BAND,L=123

92072-030

1
Out of stock

22

BAND,L=218

92072-032

1
Out of stock

23

BAND,L=186

92072-056

1
Out of stock

24

YUA BAT 12N10-3A-2

26012-1035

1
Out of stock

25

BAND,BATTERY

92072-1020

1
Out of stock

26

LABEL, BATTERY CAUSON

56022-157

1
Out of stock
