1980 Kawasaki KZ250 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1980 Kawasaki KZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

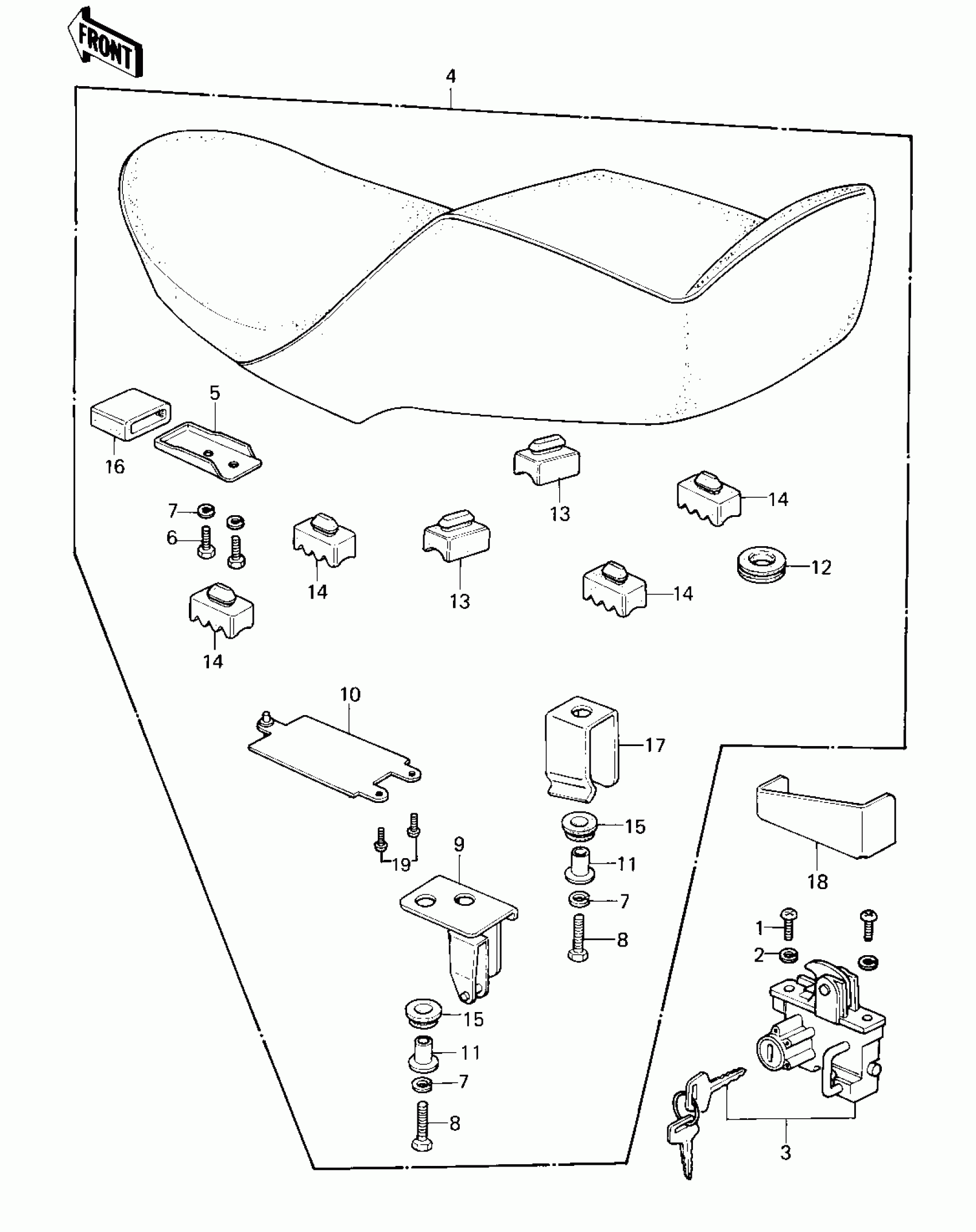

1980 Kawasaki KZ250 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

LOCK-ASSY,SEAT&HELMET

27016-5028

1
Out of stock

4

SEAT-ASSY

53001-1121

1
Out of stock

5

BRACKET,SEAT

11034-1135

1
Out of stock

6

BOLT-UPSET,6X12

112G0612

1
Out of stock

7

WASHER SPRING 6MM

461F0600

1
Out of stock

8

BOLT-UPSET

112G0625

1
Out of stock

9

HOOK,SEAT

27012-1015

1
Out of stock

10

CASE,MANUAL

32099-011

1
Out of stock

11

COLLAR,L=12

92027-1062

1
Out of stock

12

GROMMET

92071-056

1
Out of stock

13

DAMPER

92075-099

1
Out of stock

14

DAMPER

92075-1007

1
Out of stock

15

DAMPER,RUBBER

92075-1123

1
Out of stock

16

DAMPER,SEAT

92075-219

1
Out of stock

17

SPRING,SEAT

92081-1205

1
Out of stock

18

GUARD,SEAT

55020-1042

1

$7.47

In stock

19

SCREW,TAPPING,5X8

92009-1043

1
Out of stock
