1980 Kawasaki KZ250 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1980 Kawasaki KZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

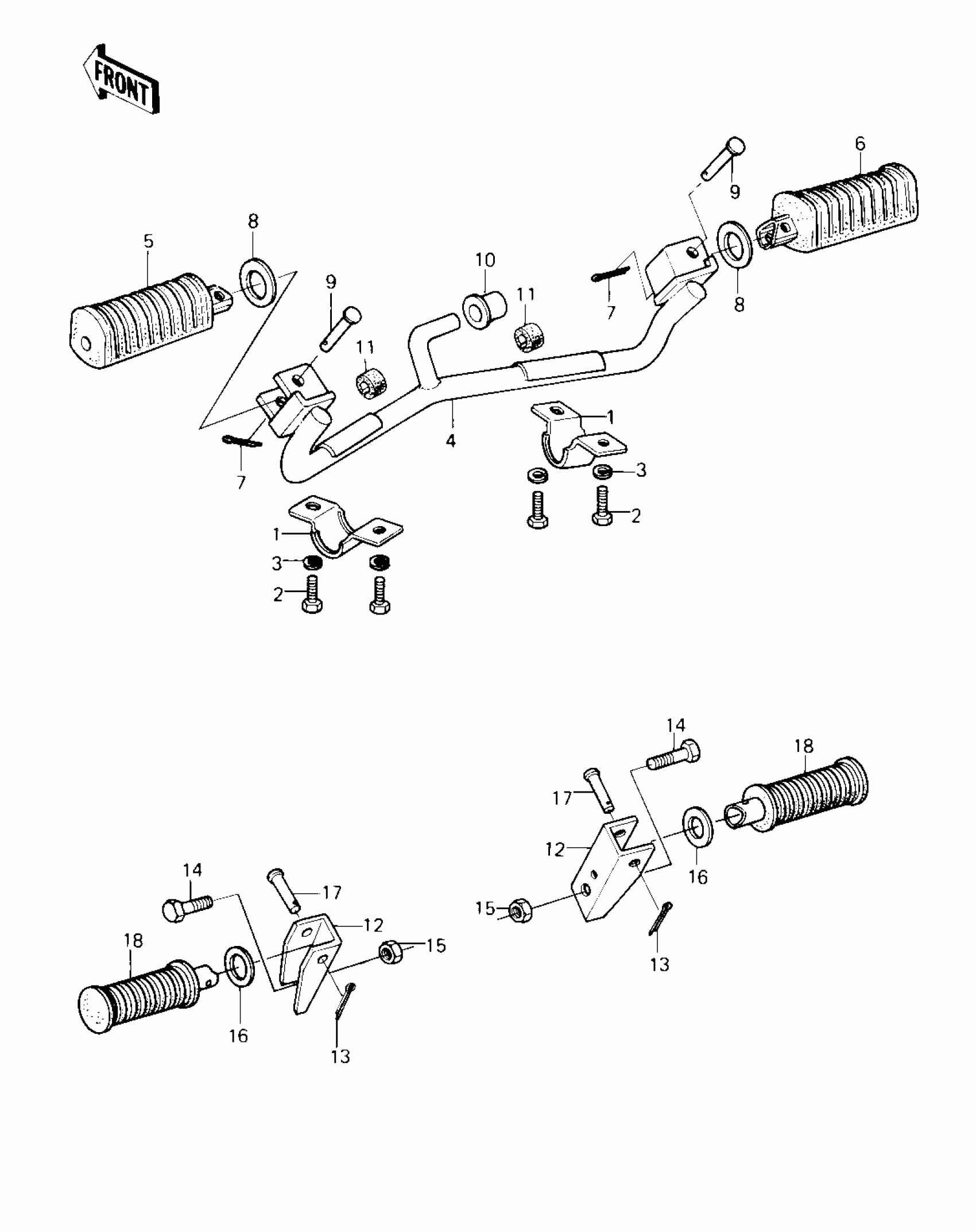

1980 Kawasaki KZ250 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,FOOTREST

13091-1003

1
Out of stock

2

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

3

WASHER SPRING 8MM

461F0800

1
Out of stock

4

BAR,FOOT REST

34003-1058

1
Out of stock

5

STEP-ASSY,FR,LH

34027-1106

1
Out of stock

6

STEP-ASSY,FR,RH

34027-1107

1
Out of stock

7

PIN COTTER 2.5X16

550D2516

1
Out of stock

8

WASHER,25X36X2.3

92022-250

1
Out of stock

9

PIN,8X35.5

92043-115

1
Out of stock

10

DAMPER,RUBBER

92075-1029

1
Out of stock

11

DAMPER,RUBBER

92075-306

1
Out of stock

12

HOLDER,REAR FOOTREST

34003-1025

1
Out of stock

13

PIN-COTTER,2.0X12

550D2012

1
Out of stock

14

BOLT,HEX HEAD,10X40

92003-213

1
Out of stock

15

NUT,LOCK,10MM

92019-021

1
Out of stock

16

WASHER-PLAIN (OPT)

92022-199

1
Out of stock

17

PIN,6X28

92043-1464

1
Out of stock

18

RUBBER,FOOTREST

92076-027

1
Out of stock
