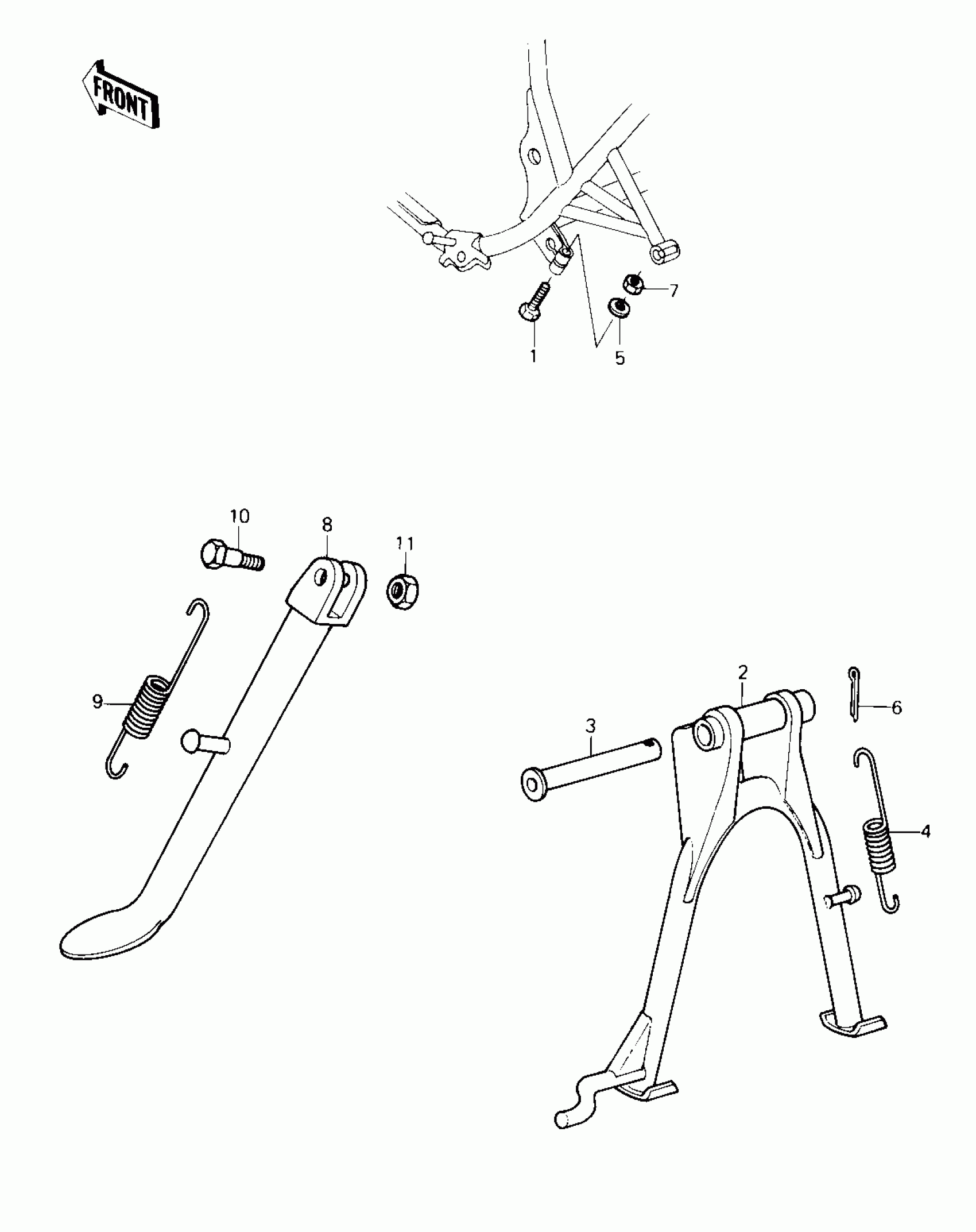

Kawasaki KZ250 STANDS ('80 D1) Diagram

#

Description
Price

1

BOLT 6X35

110R0635

Unavailable

2

STAND-MAIN

34011-1024

$102.02

3

SHAFT MAIN STAND

34019-011

Unavailable

4

SPRING,STAND,CNT

34023-016

$15.59

5

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

6

PIN-COTTER,3.0X30

550D3030

$1.80

7

NUT,LOCK,6MM

92019-008

$3.12

8

STAND-SIDE

34024-1039

Unavailable

9

SPRING,STAND

34025-005

$6.43

10

BOLT,SIDE STAND

92003-157

$7.54

11

NUT,LOCK,10MM

92019-021

$4.59
