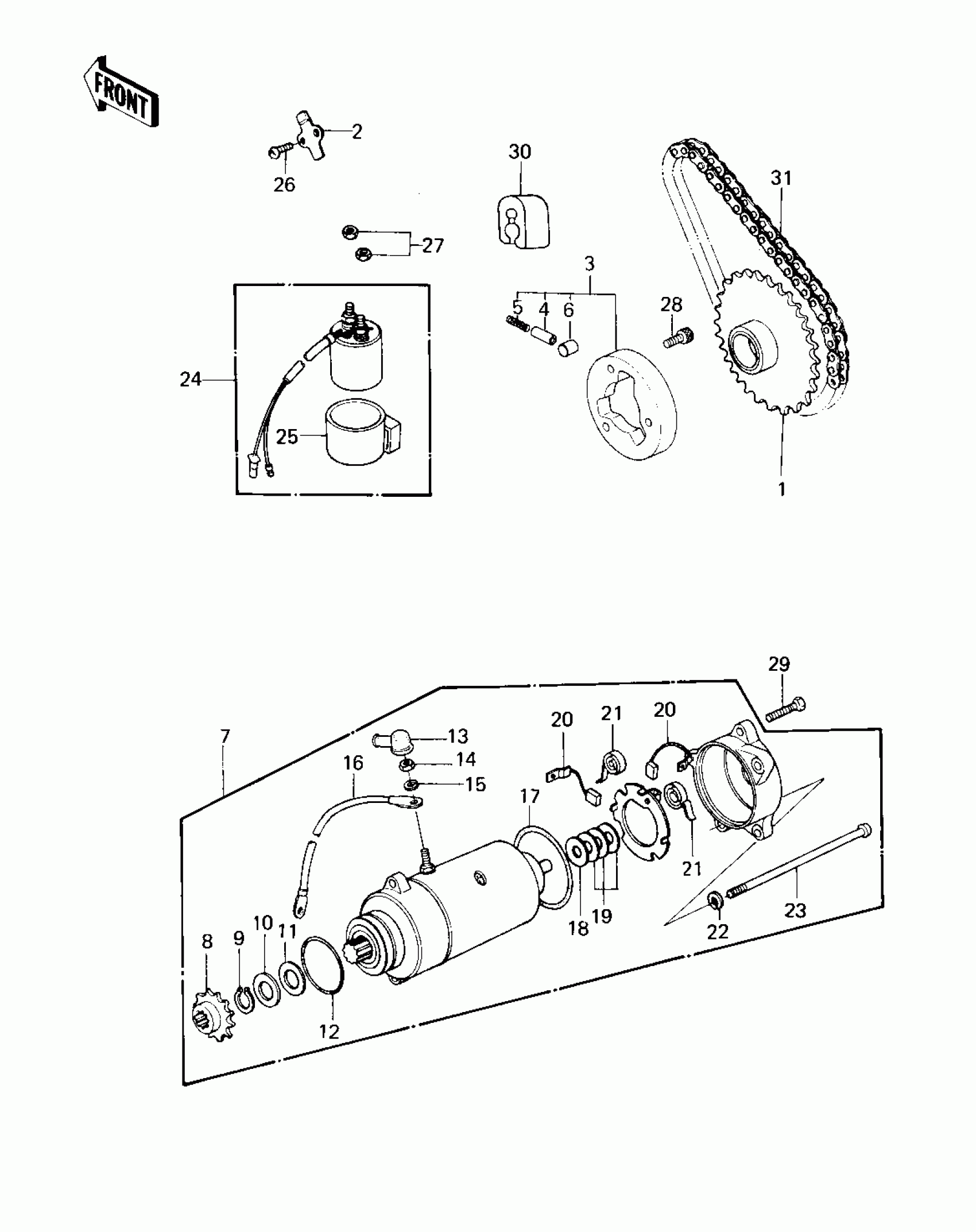

Kawasaki KZ250 STARTER MOTOR/STARTER CLUTCH ('80 D1) Diagram

#

Description
Price

1

SPROCKET,STARTER

12046-1023

Unavailable

2

PLATE

13169-1010

Unavailable

3

CLUTCH-ASSY-ONEWAY

13193-1006

$182.70

4

PIN

92043-087

$9.70

5

SPRING

92081-110

$3.63

6

ROLLER,15X14.4

92122-001

$8.82

7

STARTER-ELECTRIC

21163-1036

Unavailable

8

SPROCKET,STARTER MOTO

12046-1004

Unavailable

9

RING-SNAP,13MM

92033-037

$9.71

10

WASHER,PLAIN,14MM

21025-008

Unavailable

11

WASHER PLAIN 14MM

21025-009

Unavailable

12

RING-O,42.8MM

21027-005

Unavailable

13

CAP,STARTING MOTOR

21017-020

$7.85

14

NUT 6MM

312B0600

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16

WIRE-LEAD,STARTER MOT

26011-1201

$49.47

17

"0" RING,62MM

21027-006

Unavailable

18

WASHER,THRUST,T=1.6

21025-010

Unavailable

19

WASHER,9.1X18X0.2

21025-011

Unavailable

20

BRUSH CARBON

21039-004

$42.48

21

SPRING CARBON BRUSH

21040-004

Unavailable

22

WASHER SPRING 6MM

461F0600

Unavailable

23

SCREW,PAN HEAD,6X130

92001-1046

Unavailable

24

SWITCH ASSY,MAGNETIC

21164-005

$162.87

25

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

26

SCREW-PAN-CROS,6X14

220B0614

$1.14

27

NUT-HEX,6MM

311G0600

Unavailable

28

BOLT-SOCKET,8X16

120P0816

Unavailable

29

BOLT,FLANGED,6X25

130G0625

Unavailable

30

CLAMP,CABLE

92037-1049

$2.81

31

CHAIN,DYNAMO

92057-1009

$50.46
