1980 Kawasaki KZ250 Carburetor Diagram

← All diagrams

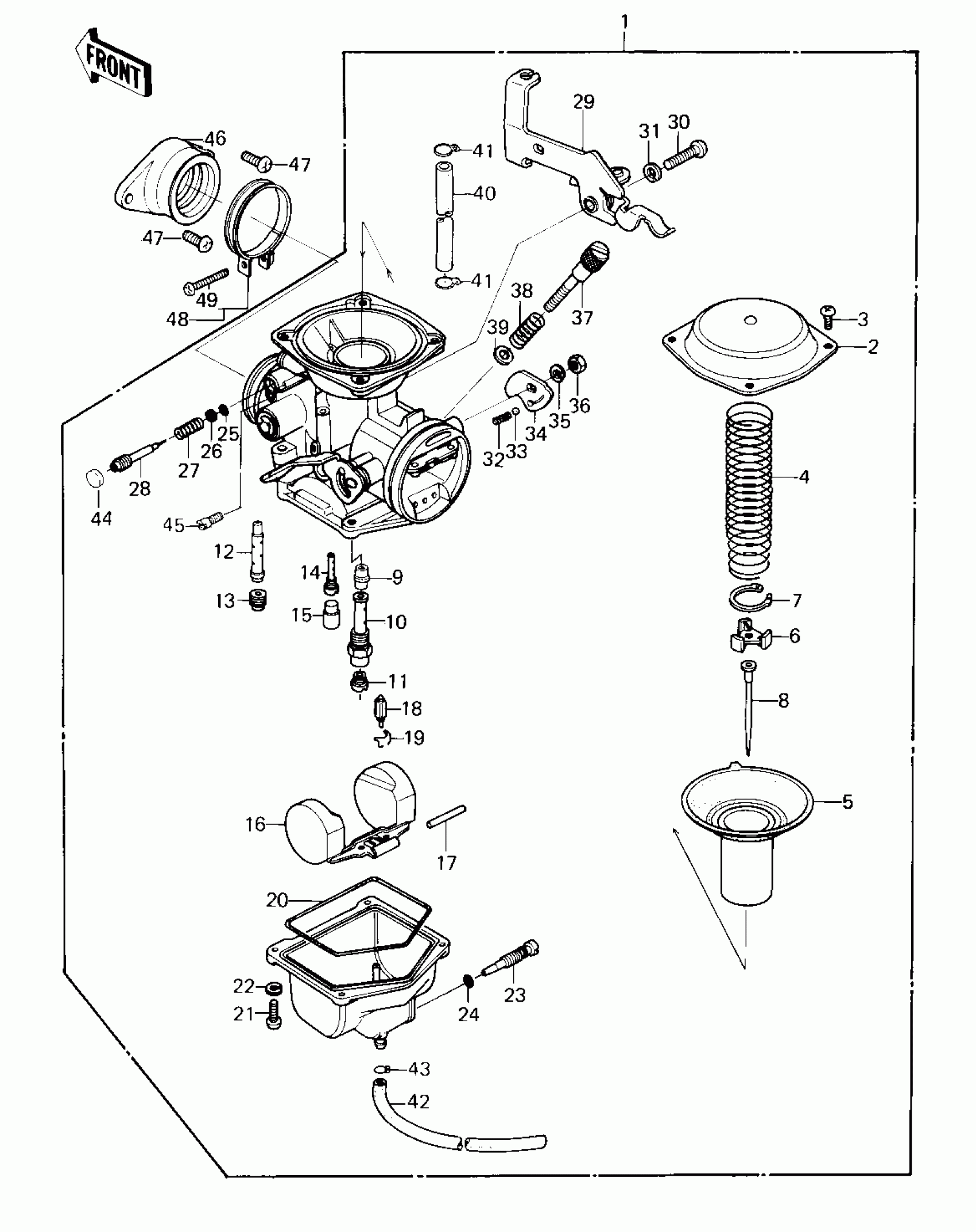

Find the part on the Carburetor diagram for your 1980 Kawasaki KZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KZ250 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY

16001-1160

1
Out of stock

2

TOP-CHAMBER,MIXING

16005-1001

1
Out of stock

3

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

4

SPRING

92081-1001

1
Out of stock

5

VACUUM,VALVE

16126-1042

1
Out of stock

6

SEAT-SPRING,THROTTLE VALVE

16007-1001

1
Out of stock

7

CLAMP

92037-1005

1
Out of stock

8

JET NEEDLE,N05A

16009-1054

1
Out of stock

9

NEEDLE JET

16017-1052

1
Out of stock

10

HOLDER,NEEDLE JET,N413-02E00

13091-1050

1
Out of stock

11

JET-MAIN,#98

92063-1005

1
Out of stock

11

JET-MAIN,#92

92063-1004

—
Out of stock

11

JET-MAIN,#95

92063-1001

—
Out of stock

11

JET-MAIN,#100

92063-1006

—
Out of stock

11

JET-MAIN,#102

92063-1090

—
Out of stock

12

NOZZLE,MAIN

92062-1001

1
Out of stock

13

MAIN JET,PRI,#68

92063-1050

1
Out of stock

14

JET-PILOT,#35

92064-1001

1
Out of stock

15

CAP,RUBBER

16012-1001

1
Out of stock

16

FLOAT

16031-1001

1
Out of stock

17

PIN,FLOAT

92043-1002

1
Out of stock

18

VALVE-FLOAT

16030-1007

1
Out of stock

19

CLAMP,FLOAT VALVE

16044-007

1
Out of stock

20

O RING,FLOAT CHAMBER

16019-024

1
Out of stock

21

SCREW-PAN-CRSOSS,4X1

220B0412

1
Out of stock

22

WASHER SPRING 4MM

461F0400

1
Out of stock

23

SCREW,DRAIN,M6X1.0

92009-1095

1
Out of stock

24

RING-O

92055-1053

1
Out of stock

25

RING-O,PILOT ADJUST

92055-1002

1
Out of stock

26

WASHER,PLAIN

92022-1003

1
Out of stock

27

SPRING,PILOT ADJUST SCREW

92081-1002

1
Out of stock

28

SCREW-PILOT AIR

16014-1029

1
Out of stock

29

BRACKET,THROTTLE CABLE

11034-1826

1
Out of stock

30

SCREW-PAN-CROS,5X25

220B0525

1
Out of stock

31

WASHER SPRING 5MM

461F0500

1
Out of stock

32

SPRING

92081-1004

1
Out of stock

33

BALL,STEEL,1/8"

600A0400

1
Out of stock

34

CAM,CHOKE LINK

13169-1303

1
Out of stock

35

WASHER SPRING 5MM

461F0500

1
Out of stock

36

NUT-HEX

311B0500

1
Out of stock

37

SCREW,THROTTLE STOP

16021-1031

1
Out of stock

38

SPRING,STOP SCREW

92081-1062

1
Out of stock

39

WASHER,PLAIN

92022-1209

1
Out of stock

40

TUBE,5.3X10.5X200

92059-1001

1
Out of stock

41

CLAMP,TUBE

92037-1682

1
Out of stock

42

HOSE,FUEL OVERFLOW

92059-1046

1
Out of stock

43

CLAMP,TUBE

92037-1142

1
Out of stock

44

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

1
Out of stock

45

SCREW,PLUG

92009-1004

1
Out of stock

46

HOLDER,CARBURETOR

16065-1028

1
Out of stock

47

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

48

CLAMP,CARBURETOR

92037-1021

1
Out of stock

49

SCREW PAN HEAD 5X30

220B0530

1
Out of stock
