1981 Kawasaki KZ1300-A3 Rear Brake Diagram

← All diagrams

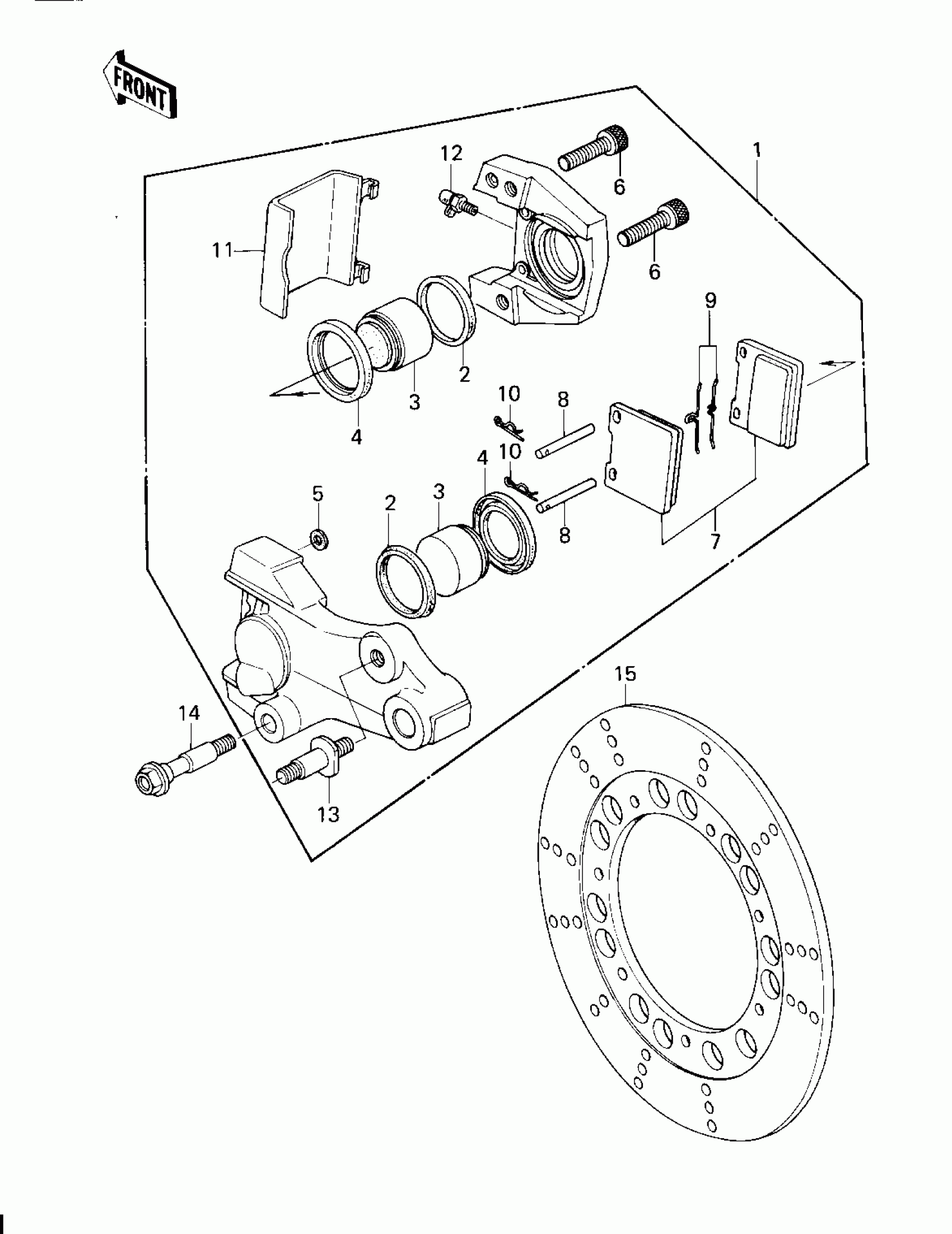

Find the part on the Rear Brake diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,REAR

43041-1018

1

$443.25

In stock

2

1

$11.01

In stock

3

PISTON,BRAKE

43020-1011

1

$111.19

In stock

4

DUST SEAL,PISTON

43054-004

1

$16.17

In stock

5

1

$4.88

In stock

6

BOLT,TIE,10X45

92001-1071

1

$6.56

In stock

7

PAD SET

43082-1002

1
Out of stock

8

SHAFT-CALIPER

43045-007

1

$5.15

In stock

9

SPRING

43086-002

1
Out of stock

10

CLAMP,PAD

43084-003

1

$3.43

In stock

11

CAP

43024-004

1
Out of stock

12

BLEEDER SET

43085-001

1

$22.74

In stock

13

STUD

92004-1020

1
Out of stock

14

BOLT,REAR CALIPER

92001-1132

1
Out of stock

15

DISC,RR,SILVER

41080-1124

1

$713.95

In stock
