1981 Kawasaki KZ1300-A3 Front Master Cylinder Diagram

← All diagrams

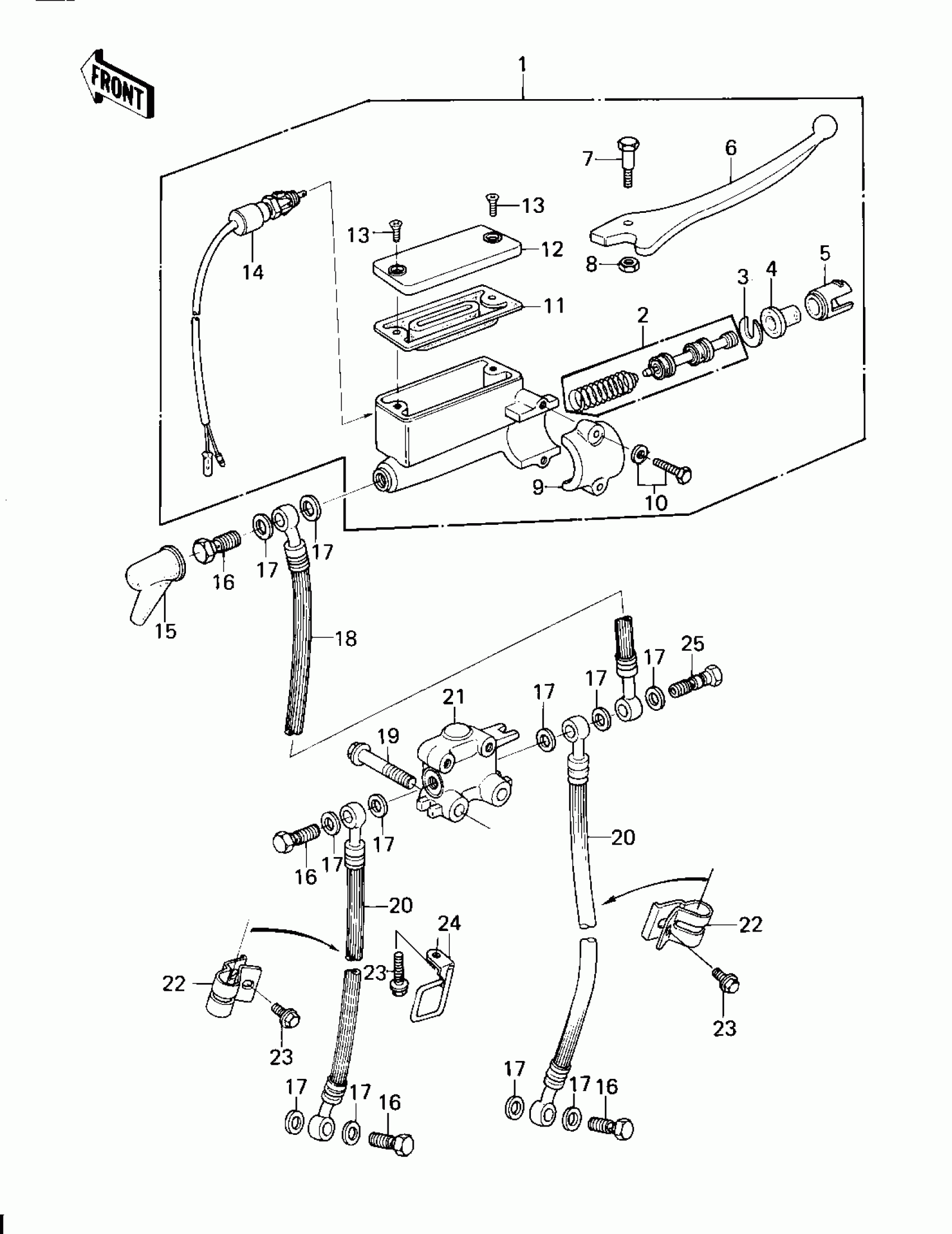

Find the part on the Front Master Cylinder diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,FRONT

43015-1060

1
Out of stock

2

PISTON-COMP-BRAKE

43020-1023

1
Out of stock

3

STOPPER-BRAKE,PISTON

43022-1001

1
Out of stock

4

COVER-SEAL,BRAKE PISTON

49016-1010

1
Out of stock

5

LINER,PISTON

14008-1007

1
Out of stock

6

LEVER,FRONT BRAKE

46092-1004

1
Out of stock

7

BOLT,FR BRAKE LEVER

92001-1056

1
Out of stock

8

NUT 6MM

312B0600

1
Out of stock

9

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

10

BOLT,6X25,W/WASHER

43033-003

1
Out of stock

11

DIAPHRAGM,MASTER CYLINDER

43028-1008

1
Out of stock

12

CAP,OIL CUP

43026-1012

1
Out of stock

13

SCREW-CSK-CROS,5X12,BLACK

92001-1055

1
Out of stock

14

SWITCH,BRAKE

27010-1028

1
Out of stock

15

BOOT,DUST

49006-1041

1
Out of stock

15

BOOT,DUST

49006-1041

1
Out of stock

16

BOLT,OIL,L=23

92002-1888

1
Out of stock

17

WASHER,10.5X15X1.5

43067-001

1
Out of stock

18

HOSE,BRAKE

43059-1042

1
Out of stock

19

BOLT-FLANGED,8X45

130G0845

1
Out of stock

20

HOSE-BRAKE,L=570

43059-1175

1
Out of stock

21

JOINT-BRAKE

43061-1001

1
Out of stock

22

BRACKET,BRAKE HOSE

11034-1284

1
Out of stock

23

BOLT-FLANGED,6X8

130B0608

1
Out of stock

24

BRACKET,SPEED CABLE

11034-1285

1
Out of stock

25

BOLT,OIL,L=37

92002-1909

1
Out of stock
← Front Brake Rear Brake →
