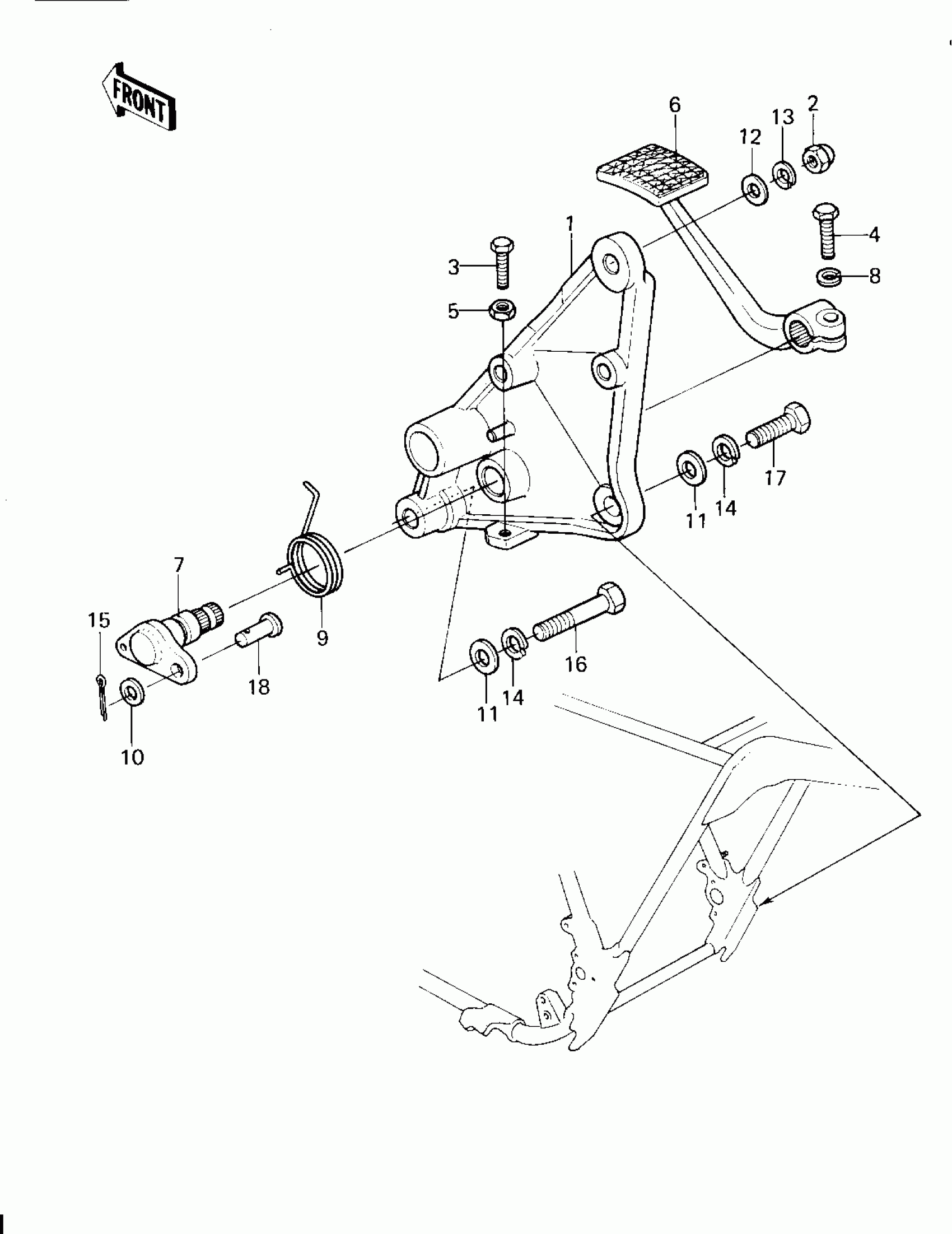

Kawasaki KZ1300-A3 BRAKE PEDAL Diagram

#

Description
Price

1

BRACKET,BRAKE PEDAL

11034-1263

Unavailable

2

NUT-CAP-SMALL,8MM

323N0800

$4.08

3

BOLT 6X22

112B0622

Unavailable

4

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

5

NUT 6MM

311B0600

Unavailable

6

PEDAL,BRAKE

43001-1024

$136.05

7

SHAFT,BRAKE

43004-1006

$56.36

8

WASHER SPRING 8MM

461F0800

Unavailable

9

SPRING,BRAKE PEDAL RT

92081-1088

$8.39

10

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

11

WASHER PLAIN 10MM

410B1000

Unavailable

12

WASHER PLAIN 8MM

411B0800

Unavailable

13

WASHER SPRING 8MM

461F0800

Unavailable

14

WASHER SPRING 10MM

461F1000

Unavailable

15

PIN-COTTER,2.0X20

550D2020

Unavailable

16

BOLT-HEX HEAD,10X46

92007-029

Unavailable

17

BOLT,HEX HEAD,10X25

92007-045

Unavailable

18

PIN,6X17

92043-107

Unavailable
