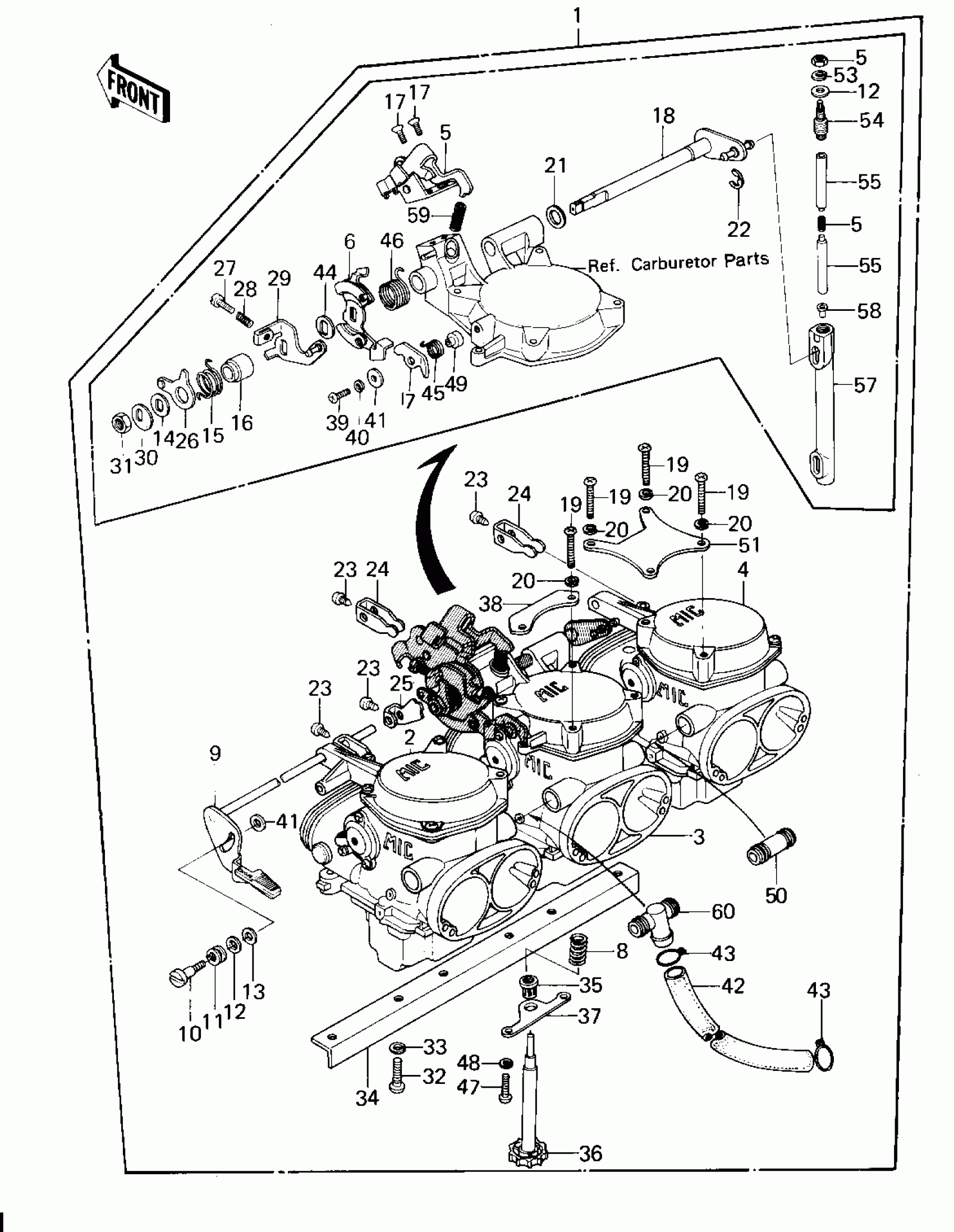

Kawasaki KZ1300-A3 CARBURETOR ASSY Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1094

$1,417.11

1

CARBURETOR ASSY

16001-1211

$1,437.33

2

CARBURETOR,L.H.

16001-1188

$668.68

2

CARBURETOR,L.H

16001-1247

$497.51

3

CARBURETOR,CENTER

16001-1189

$668.68

3

CARBURETOR,CENTER

16001-1248

$520.67

4

CARBURETOR,R.H.

16001-1190

$735.59

4

CARBURETOR,R.H

16001-1249

$520.67

5

BRACKET,THRTTL PULLY

39184-1002

$55.22

6

PULLY,THROTTLE CABLE

13236-1016

Unavailable

7

LEVER,THRTTL STP SCRW

13168-1043

Unavailable

8

SPRING,THRTL STP SCRW

92081-1155

Unavailable

9

SHAFT,STARTER PLUNGER

16041-1006

$57.44

10

SCREW

16046-005

Unavailable

11

SPRING,F

16040-009

Unavailable

12

WASHER,PLAIN

16039-020

Unavailable

13

WASHER,PLAIN,DURACON

92022-1147

Unavailable

14

WASHER,PLAIN

92022-1148

Unavailable

15

SPRING,CHOCK LINK

92081-1157

$7.93

16

COLLAR,CHOCK LINK

92027-1201

$7.64

17

SCREW CNTSNK HD 5X10

221B0510A

$2.79

18

SHAFT,THROTTLE LEVER

16041-1007

$64.63

19

SCREW PAN HEAD 5X30

220B0530

Unavailable

20

WASHER SPRING 6MM

461F0600

Unavailable

21

WASHER,PLAIN,DURACON

92022-1149

Unavailable

22

CIRCLIP,ROCKER ARM

92037-1139

$3.04

23

SCREW,PAN HEAD,5X7

16046-007

Unavailable

24

LEVER,STARTER PLUNGER

13168-1044

Unavailable

25

CAM,CHOCK LINK

13168-1045

Unavailable

26

LEVER,CHOCK LINK

13236-1017

Unavailable

27

ADJUSTER,THROTTLE LEV

16021-020

Unavailable

28

SPRING,ADJUSTER SCREW

92081-1160

$3.54

29

LEVER,THROTTLE

13236-1018

Unavailable

30

WASHER,LOCK

92022-1151

$3.37

31

NUT,8 M/M

315G0800

$2.56

32

SCREW PAN HEAD 6X12

220B0612

Unavailable

33

WASHER SPRING 6MM

461F0600

Unavailable

34

PLATE,STAY

16065-1021

$40.51

35

BUSHING

92028-1071

Unavailable

36

SCREW,THROTTLE STOP

16021-1013

$73.07

37

BRACKET,THRT STP SCRW

11034-1514

Unavailable

38

STAY,CARBURETOR HEAD

16065-1022

$11.08

39

SCREW PAN HEAD 4X16

220B0416

Unavailable

40

WASHER SPRING 4MM

461F0400

Unavailable

41

WASHER,PLAIN

92022-1152

$3.49

42

TUBE,7.5X12.5X225

92059-1123

Unavailable

43

CLAMP,TUBE

92037-1184

$1.09

44

WASHER,PLAIN

92022-1153

$3.49

45

SPRING,THRT STP LEVER

92081-1161

Unavailable

46

SPRING,THRTTL PULLY

92081-1162

Unavailable

47

SCREW-PAN-CROS

220B0518

Unavailable

48

WASHER SPRING 5MM

461F0500

Unavailable

49

WASHER

92022-1203

$4.80

50

NIPPLE,FUEL

92005-1018

Unavailable

51

STAY,CARBURETOR HEAD

16065-1023

$13.58

52

NUT,5MM

16003-013

$9.12

53

WASHER SPRING 5MM

461F0500

Unavailable

54

SCREW

45007-1002

$10.32

55

PIN

46102-1008

$6.90

56

SPRING

16040-026

Unavailable

57

ROD THROTTLE

16149-1006

$25.98

58

SEAT-SPRING

16057-002

Unavailable

59

SPRING,CABLE PULLY

16040-022

Unavailable

60

FITTING,FUEL HOSE

92005-1019

Unavailable
