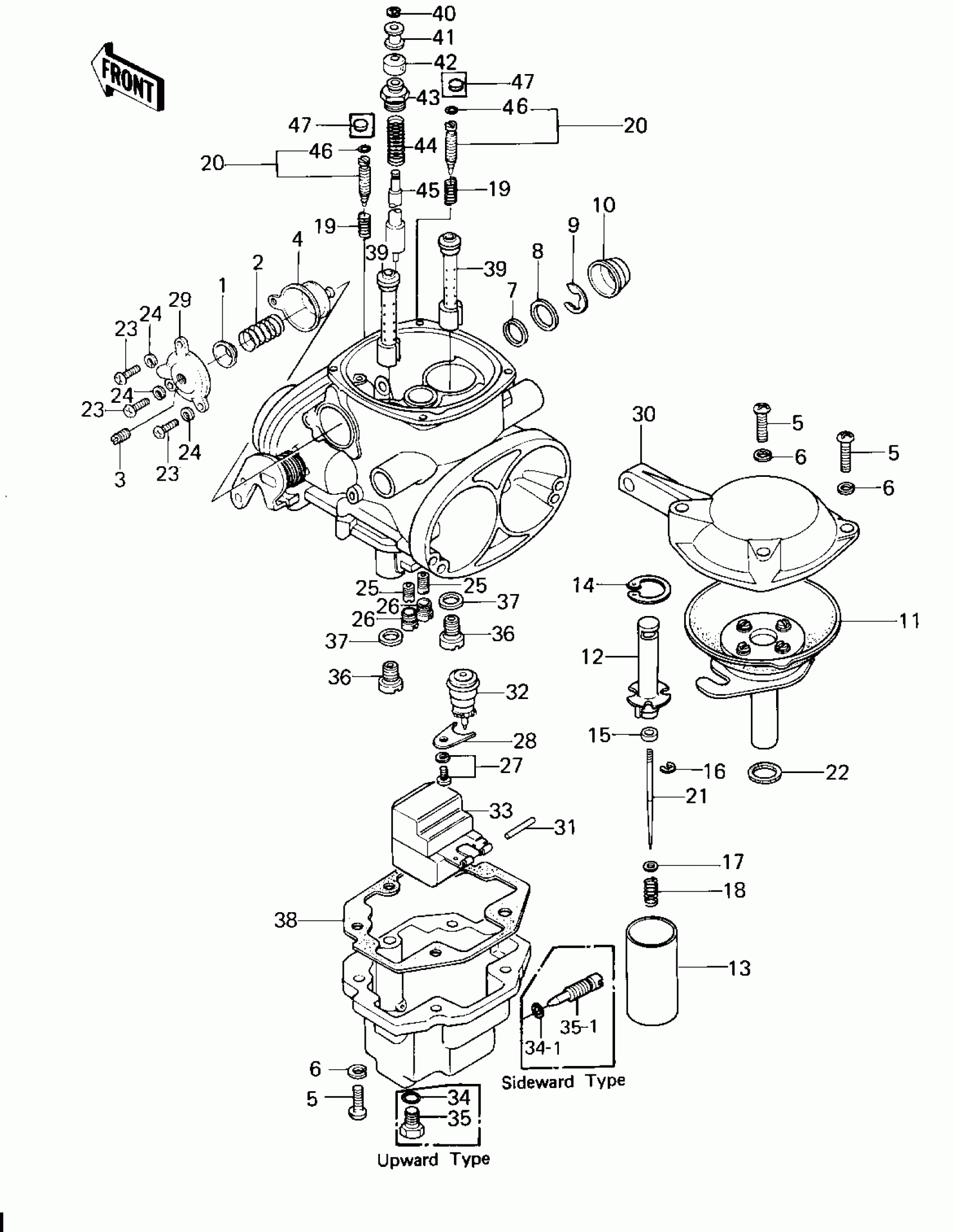

Kawasaki KZ1300-A3 CARBURETOR PARTS Diagram

#

Description
Price

1

RETAINER,DPHRGM SPRNG

43027-1004

$10.73

2

SPRING,RICHER DPHRGM

92081-1156

$4.12

3

SCREW,SLOTTED

45007-1001

$4.44

4

DIAPHRAGM,RICHER

43028-1017

Unavailable

4

DIAPHRAGM,RICHER

43028-1017

Unavailable

5

SCREW PAN HEAD 5X16

220B0516A

$1.49

6

WASHER SPRING 5MM

461F0500

Unavailable

7

OIL SEAL

92093-1027

Unavailable

8

WASHER,PLAIN

92022-1150

$4.12

9

CIRCLIP

92037-1140

$2.53

10

CAP,STEEL

39031-1002

$5.66

11

DIAPHRAGM ASSY,VACUUM

43028-1014

Unavailable

12

HOLDER,PISTON VALVE

13091-1056

Unavailable

13

VALVE,PISTON

16025-1029

$71.20

14

CIRCLIP

92033-1009

Unavailable

15

RING,JET NEEDLE

92027-1115

Unavailable

16

CLAMP,E-TYPE

16008-014

$9.34

17

WASHER,JET NEEDLE

92022-1123

$8.75

18

SPRING,JET NEEDLE

92081-1126

$8.19

19

SPRING,PILOT SCREW

16022-016

$6.94

20

SCREW,PILOT ADJUSTING

16014-1016

$34.33

21

JET NEEDLE,5P2

16009-1035

$18.25

21

JET NEEDLE,5P4

16009-1050

$23.12

22

WASHER,PLAIN,DURACON

92022-1155

Unavailable

23

SCREW PAN HEAD 4X10

220B0410

Unavailable

24

WASHER SPRING 4MM

461F0400

Unavailable

25

PILOT JET,#42.5

92064-1024

Unavailable

26

SCREW,HOLE PLUG

92066-1044

$10.83

27

SCREW-CLAMP

16033-014

Unavailable

28

PLATE, LOCK

13169-1190

Unavailable

29

COVER,COASTING RICHER

14025-1158

Unavailable

30

TOP,MXNG CHAMBER,L.H.

14025-1159

Unavailable

30

TOP,MXNG CHAMBER,CENT

14025-1160

Unavailable

30

TOP,MXNG CHAMBER,R.H.

14025-1161

Unavailable

31

PIN,FLOAT

16032-003

$5.95

32

FLOAT VALVE ASSY

16030-1005

Unavailable

33

FLOAT

16031-1006

Unavailable

34

"0" RING,MAIN JET COV

16038-016

$2.23

34-1

RING-O

92055-044

$7.90

35

BOLT,HEX HEAD,DRAIN

92066-1045

Unavailable

35-1

PLUG,DRAIN

92066-1064

$9.41

36

MAIN JET,#110R

92063-1038

$15.59

36

MAIN JET,#A105R

92063-1042

$12.27

36

JET-MAIN NO 107.5R

92063-073

$14.88

36

JET-MAIN NO 115R

92063-076

$11.70

37

WASHER,MAIN JET

16034-001

$3.43

38

GASKET,FLOAT CHAMBER

11009-1148

Unavailable

39

NEEDLE JET,Y-8

16017-1038

$52.90

40

CIRCLIP

16076-003

Unavailable

41

COLLAR

16073-014

Unavailable

42

RUBBER CAP,STARTER PL

16036-017

Unavailable

43

CAP,STARTER PLUNGER

16012-1005

$21.81

44

SPRING,STARTER PLUNGR

92081-1163

$3.49

45

PLUNGER,STARTER

16016-1005

$57.39

46

GASKET,"O"RING

16038-022

$5.61

47

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85
