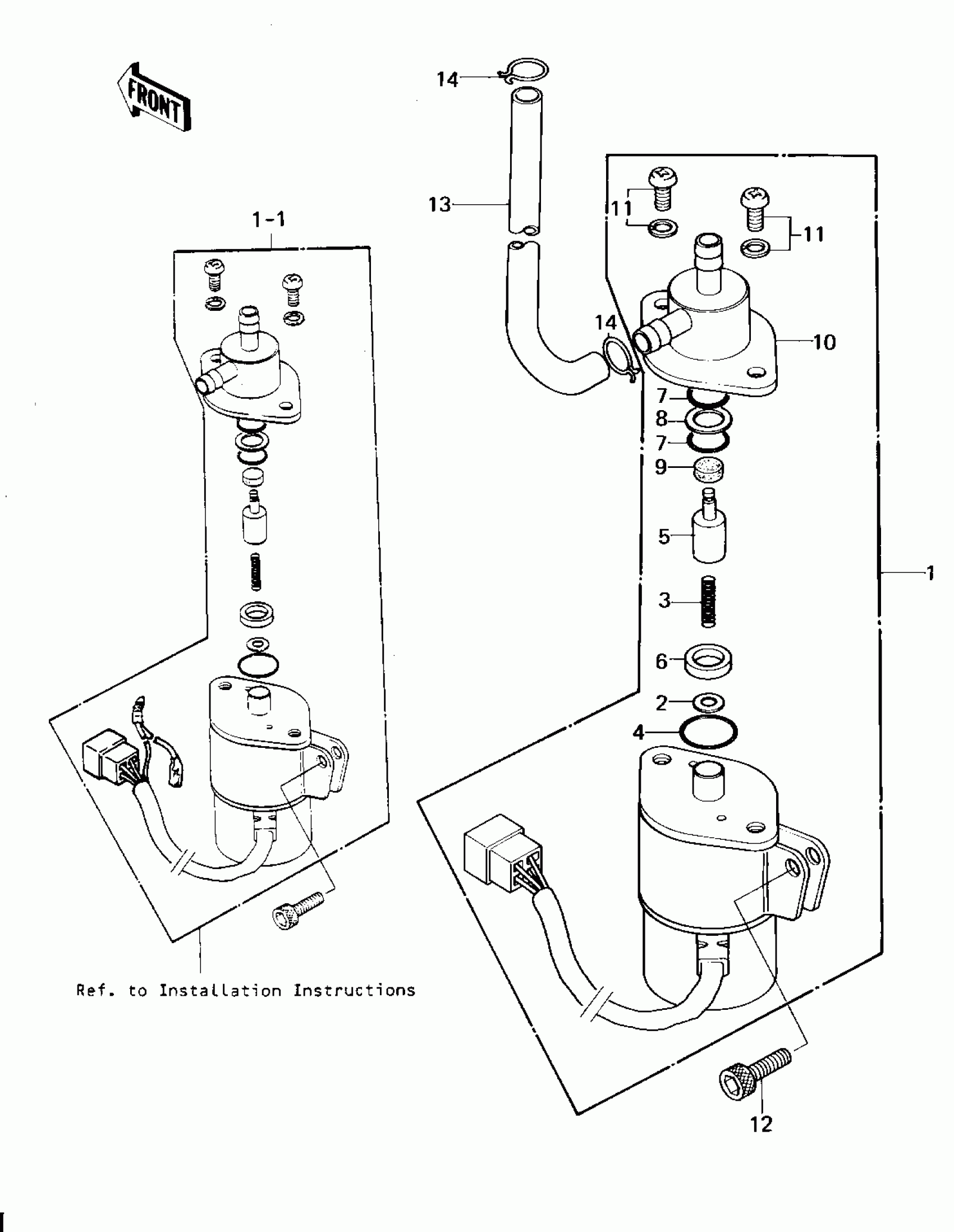

Kawasaki KZ1300-A3 FUEL SOLENOID VALVE Diagram

#

Description
Price

1

VALVE ASSY,FUEL

49116-1001

Unavailable

1

VALVE-ASSY,FUEL

49116-1008

Unavailable

1-1

VALVE-ASSY,FUEL

49116-1008

Unavailable

2

SPACER

92026-1056

$2.19

3

SPRING

92081-1170

$3.10

4

"0" RING

92055-1064

$5.22

5

PLUNGER

16016-1007

$14.46

6

COLLAR

43058-1012

$2.78

7

"0" RING

92055-1065

$2.49

8

SPACER

92026-1057

$2.78

9

VALVE

16126-1016

$3.93

10

BODY,VALVE

16131-1003

$12.37

11

SCREW,PAN HEAD

92009-1071

$1.90

12

BOLT-SOCKET,6X14

120P0614

Unavailable

13

TUBE,FUEL7.5X12.5X230

92059-1083

Unavailable

14

CLAMP,FUEL TUBE

92037-1141

$2.42
