1978 Kawasaki KZ1000 LTD Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1978 Kawasaki KZ1000 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

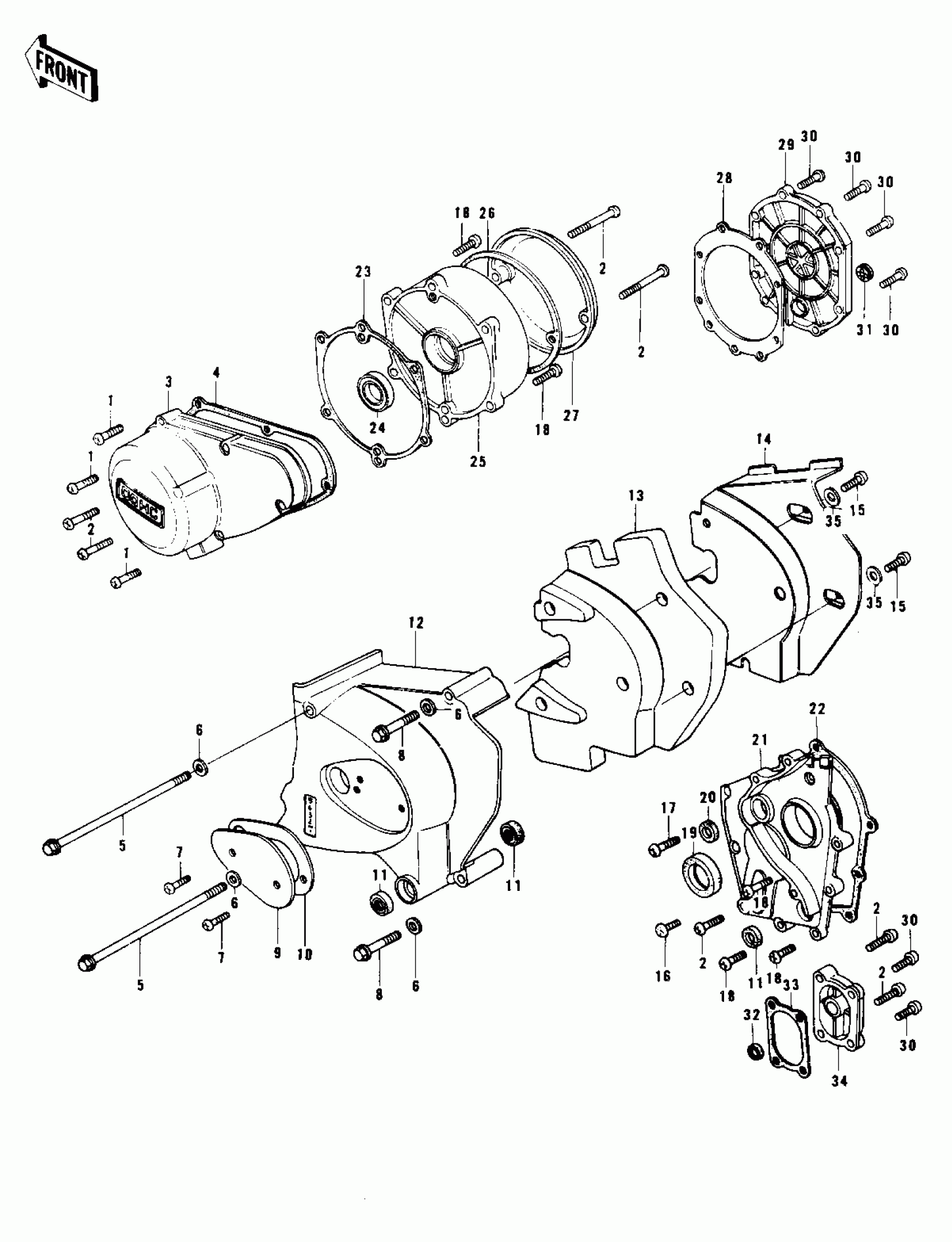

1978 Kawasaki KZ1000 LTD Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

2

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

3

COVER,L.H ENGINE

14031-100-80

1
Out of stock

4

GASKET,GENERATOR COVER

11060-1075

1
Out of stock

5

BOLT-UPSET,6X125

112G06125

1
Out of stock

6

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

7

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

8

BOLT,6X70

110G0670

1
Out of stock

9

COVER,OIL PUMP

14026-012

1
Out of stock

10

GASKET,OIL PUMP,COVER

14045-015

1
Out of stock

11

SEAL-OIL,SB12205

92049-004

1
Out of stock

12

COVER,FRONT CHAIN

14026-039-80

1
Out of stock

13

COVER,FRONT CHAIN

92075-314

1
Out of stock

14

COVER,SOUND ARRESTER

14024-012

1
Out of stock

15

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

16

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

17

SCREW PAN HEAD 6X28

220B0628

1
Out of stock

18

SCREW PAN HEAD 6X22

220B0622

1
Out of stock

19

SEAL-OIL,SC325210

92050-024

1
Out of stock

20

OIL SEAL,TC7187

92050-048

1
Out of stock

21

COVER,TRANSMISSION

14025-1106

1
Out of stock

22

GASKET,MISSION COVER

14058-004

1
Out of stock

23

GASKET,RH ENGINE COVER

11060-1071

1
Out of stock

24

OIL SEAL,S25407R

92050-047

1
Out of stock

25

COVER,R.H ENGINE

14032-083

1
Out of stock

26

GASKET,POINT CAP

14050-006

1
Out of stock

27

COVER,BREAKER POINT

14027-023-80

1
Out of stock

28

GASKET,CLUTCH

14046-024

1
Out of stock

29

COVER,CLUTCH

14032-121

1
Out of stock

30

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

31

GAUGE,OIL LEVEL

52015-004

1
Out of stock

32

SEAL-OIL,SC22325

92049-1048

1
Out of stock

33

GASKET,KICK COVER

14046-025

1
Out of stock

34

COVER,KICK SHAFT,BAR

14032-075-2H

1
Out of stock

35

WASHER PLAIN 6MM

411B0600

1
Out of stock
