1978 Kawasaki KZ1000 LTD Crankcase Bolt & Stud Pattern ('77-'78 B Diagram

← All diagrams

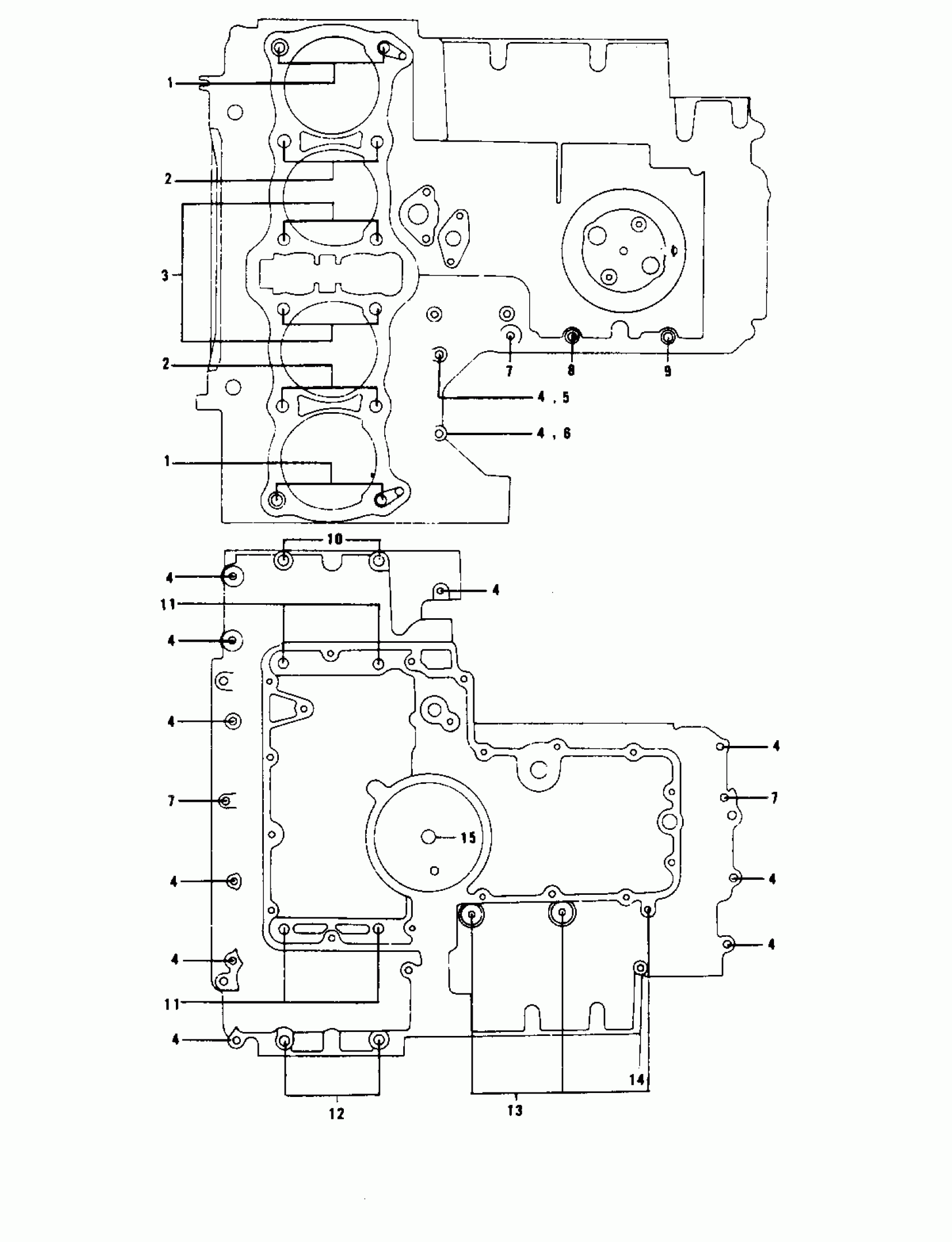

Find the part on the Crankcase Bolt & Stud Pattern ('77-'78 B diagram for your 1978 Kawasaki KZ1000 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Kawasaki KZ1000 LTD Crankcase Bolt & Stud Pattern ('77-'78 B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STUD,10X158

92004-1003

1
Out of stock

2

STUD,10X133

92004-1004

1
Out of stock

3

STUD,10X167

92004-1002

1
Out of stock

4

BOLT,HEX HEAD,6X41

92003-109

1
Out of stock

5

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

6

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

7

BOLT,HEX HEAD,6X54

92003-110

1
Out of stock

8

BOLT,HEX HEAD,6X99

92003-111

1
Out of stock

9

BOLT,HEX HEAD,6X116

92003-113

1
Out of stock

10

BOLT-FLANGED,8X95

130P0895

1
Out of stock

11

BOLT,HEX HEAD,8X72

92003-107

1
Out of stock

12

BOLT,HEX HEAD,8X81

92003-108

1
Out of stock

13

BOLT-FLANGED,6X95

130G0695

1
Out of stock

14

BOLT-FLANGED,6X70

130G0670

1
Out of stock

15

RING-O,OD=18

92055-048

1
Out of stock
