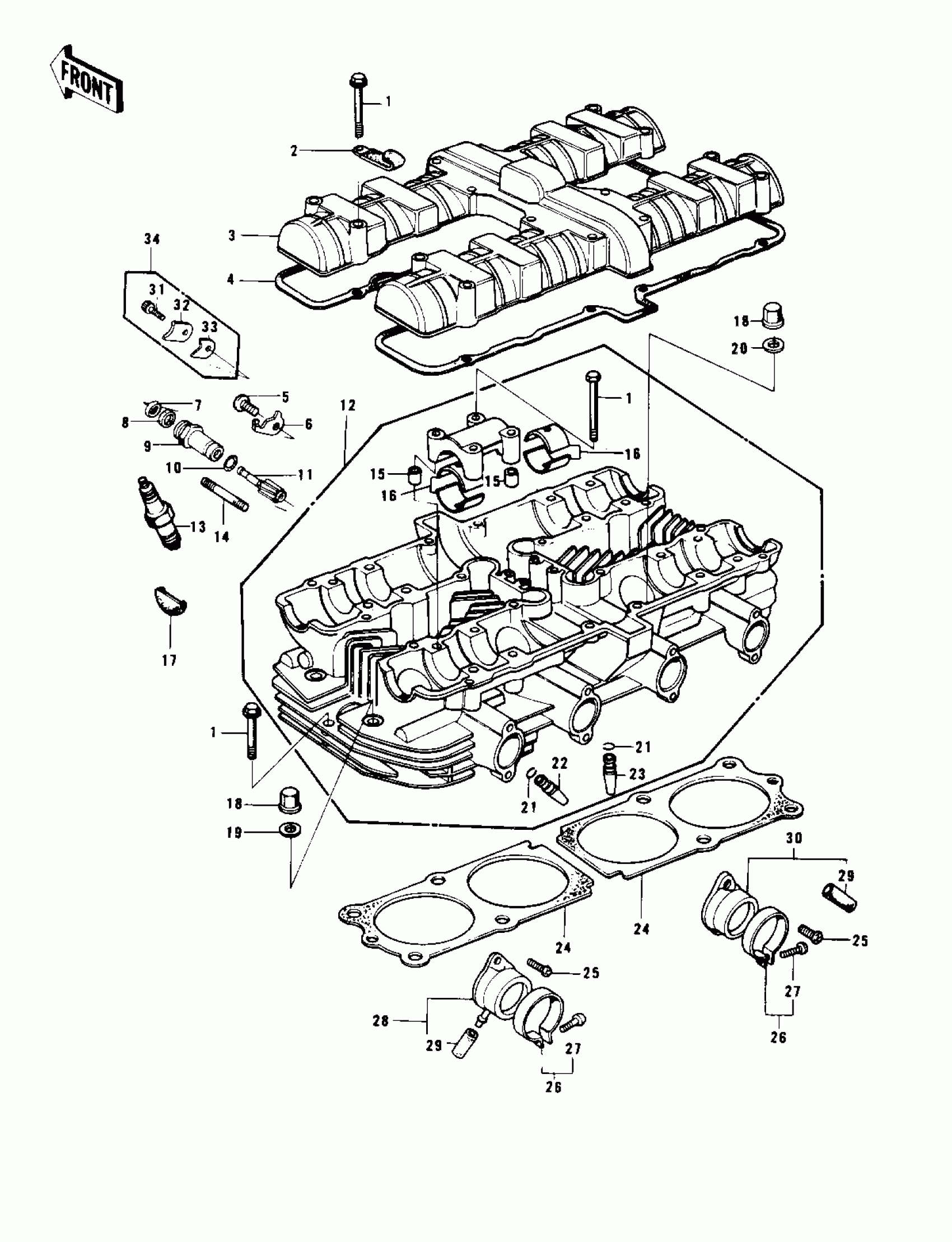

Kawasaki KZ1000 LTD CYLINDER HEAD/COVER ('77-'78 B1/B2) Diagram

#

Description
Price

1

BOLT,FLANGED,6X45

92003-092

$5.79

2

CLAMP,WIRING HARNESS

21126-008

$3.60

3

COVER,CYLINDER HEAD

11022-012-2H

Unavailable

4

GASKET,CYL HEAD COVE

11023-006

Unavailable

5

SCREW PAN HEAD 6X10

220B0610

Unavailable

6

PLATE,STOPPER

13169-015

Unavailable

7

GASKET,TACHOMETER GEAR

92065-103

$3.11

8

SEAL-OIL

92050-075

$8.66

9

GUIDE,TACHOMETER GEAR

92087-010

$22.76

10

RING-O,10MM

92055-1149

$4.93

11

GEAR,TACHOMETER,10T

13223-011

Unavailable

12

CYLINDER HEAD,BARREL

11002-1011-2H

Unavailable

13

SPARK PLUG B8ES

B8ES

$2.80

14

STUD,8X30

92004-1069

$5.74

15

PIN,DOWEL,6.3X8X14

92042-007

$4.31

16

BUSHING,CAMSHAFT

13034-030

$17.90

17

PLUG,CAM SHAFT

92066-017

Unavailable

18

NUT,FLANGED CAP,10MM

92015-076

$10.39

19

WASHER,PLAIN,10MM

92022-215

$9.34

20

WASHER-PLAIN,10MM

411B1000

Unavailable

21

RING-SNAP,VALVE GUIDE

92036-023

$0.48

22

GUIDE-VALVE,INTAKE

12013-009

$22.09

23

UNAVAILABLE IN PRICE BOOK

12013-040

Unavailable

24

GASKET,CYLINDER HEAD

11004-076

Unavailable

25

SCREW PAN HEAD 6X18

220B0618

$2.79

26

CLAMP,HOLDER

92037-077

$9.55

27

SCREW,PAN HEAD

92011-037

Unavailable

28

UNAVAILABLE IN PRICE BOOK

16066-029

Unavailable

29

PLUG,12X25

92068-006

$3.25

30

HOLDER-R.H CARBRETOR

16065-028

$102.45

31

BOLT-SOCKET,6X14

120P0614

Unavailable

32

HOLDER,TACHOMETER2.3T

13091-1008

$3.81

33

HOLDER,TACHOMETR,3.2T

13091-1009

$3.25

34

HOLDER SET,TACHOMETER

13091-5001

Unavailable
