1983 Kawasaki KZ1000-J3 Front Wheel/hub Diagram

← All diagrams

Find the part on the Front Wheel/hub diagram for your 1983 Kawasaki KZ1000-J3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

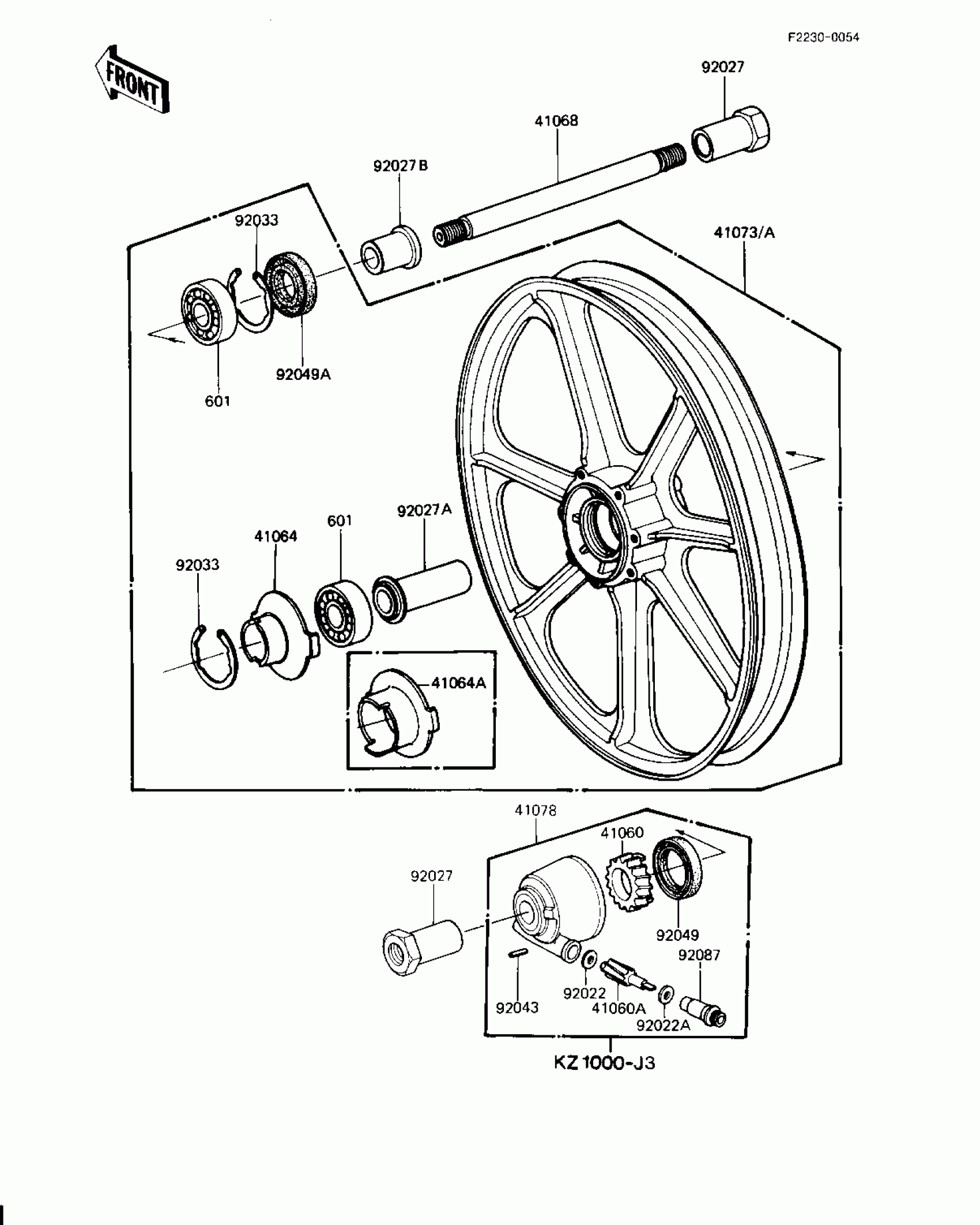

1983 Kawasaki KZ1000-J3 Front Wheel/hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41060

1

$43.35

In stock

41060A

GEAR-METER SCREW,9T

41060-1016

1
Out of stock

41064

1

$11.81

In stock

41068

AXLE,FRONT

41068-1031

1
Out of stock

41073

WHEEL-ASSY,FR,SOLID,

41073-1139-21

1

$1,037.73

In stock

41078

CASE-ASSY-METER GEAR,F.BLACK

41078-1024

1
Out of stock

92022

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

92022A

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

92027

COLLAR,FRONT AXLE

41069-031

1

$32.52

In stock

92027A

COLLAR,L=55

92027-1223

1

$14.71

In stock

92027B

COLLAR,L=30

92027-1225

1

$16.49

In stock

92035

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92043

PIN,SPRING

41082-001

1

$3.53

In stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL,BJN22425

92049-1058

1
Out of stock

92087

BUSHING-METER GEAR

92087-1002

1

$22.34

In stock

601

1

$25.71

In stock
