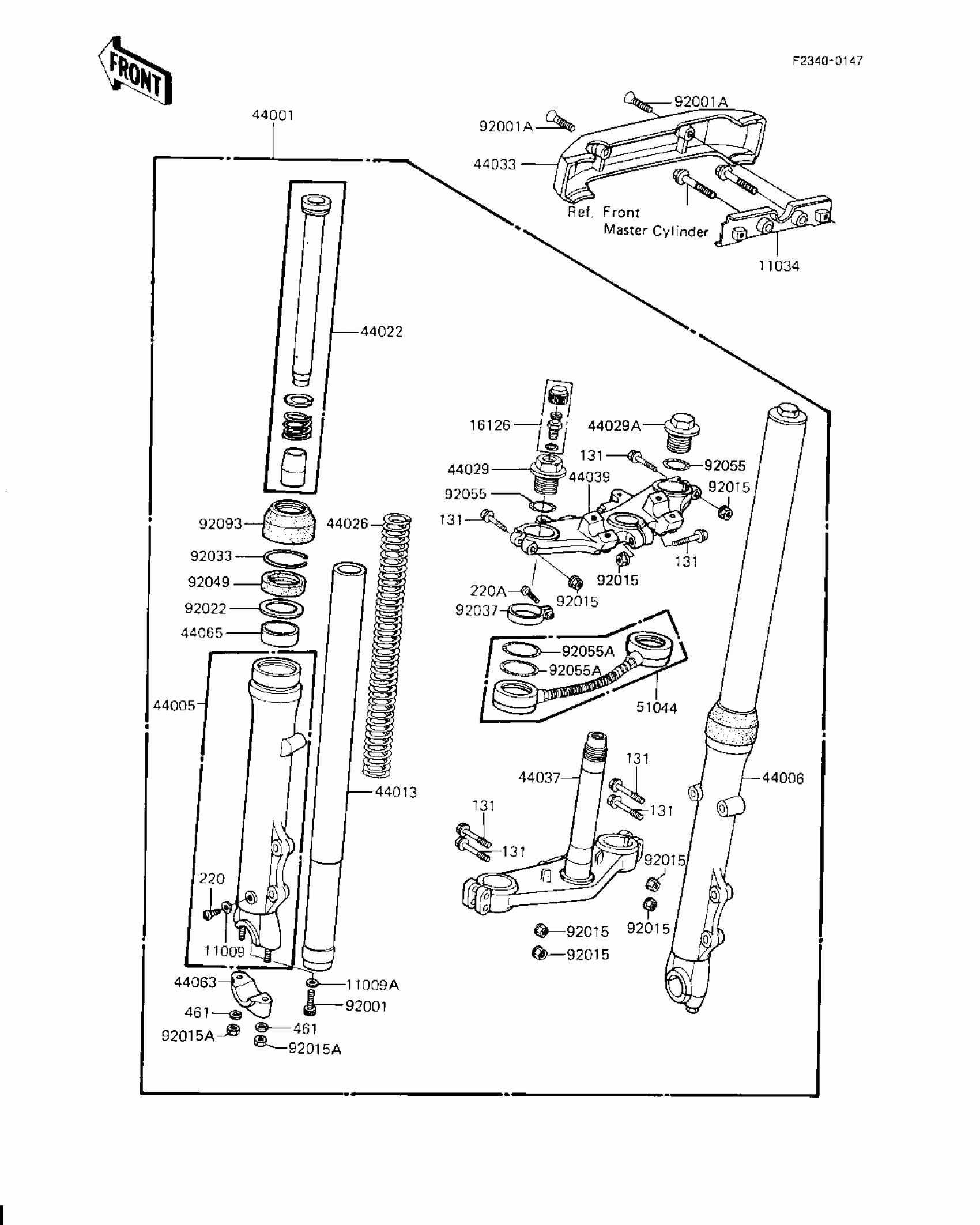

Kawasaki KZ1000-J3 FRONT FORK (KZ1000-J3) (CANADA) Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

44045-002

$3.95

11009A

GASKET

44045-057

$3.71

11034

BRACKET,FORK COVER

11034-1842

Unavailable

16126

VALVE,AIR

16126-1052

$31.36

44001

FORK-FRONT (Canada)

44001-1409

Unavailable

44005

TUBE,LH,FORK OUTER

44005-1094

Unavailable

44006

TUBE,RH,FORK OUTER

44006-1094

$314.39

44013

PIPE-FORK INNER (Canada)

44013-1115

Unavailable

44022

CYLINDER-FORK

44022-1044

$113.90

44026

SPRING-FRONT FORK (Canada)

44026-1193

Unavailable

44029

SEAT-FORK SPRING,LH

44029-1044

Unavailable

44029A

SEAT-FORK SPRING,RH

44029-1045

Unavailable

44033

COVER,FORK

44033-1053

Unavailable

44037

HOLDER-FORK UNDER

44037-1072

$470.70

44039

HOLDER-FORK UPPER

44039-1070

$224.35

44063

HOLDER-FRONT AXLE

44063-1006

$44.66

44065

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$21.02

51044

TUBE-ASSY,AIR,FORK (Canada)

51044-1028

Unavailable

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

92001A

SCREW-CSK-RD-CROS

222C0518

$4.15

92015

NUT,FLANGED,8MM

92015-1022

$0.48

92015A

NUT,LOCK,8MM

92015-1124

$4.10

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.39

92033

RING-SNAP,FORK

92033-1047

$4.84

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$17.88

92055

RING-O,FORK TOP CAP

92055-1051

$4.85

92055A

RING-O,ROD

92055-1369

$7.71

92093

SEAL

92093-1051

$41.67

131

BOLT-FLANGED,8X55

130G0855

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
