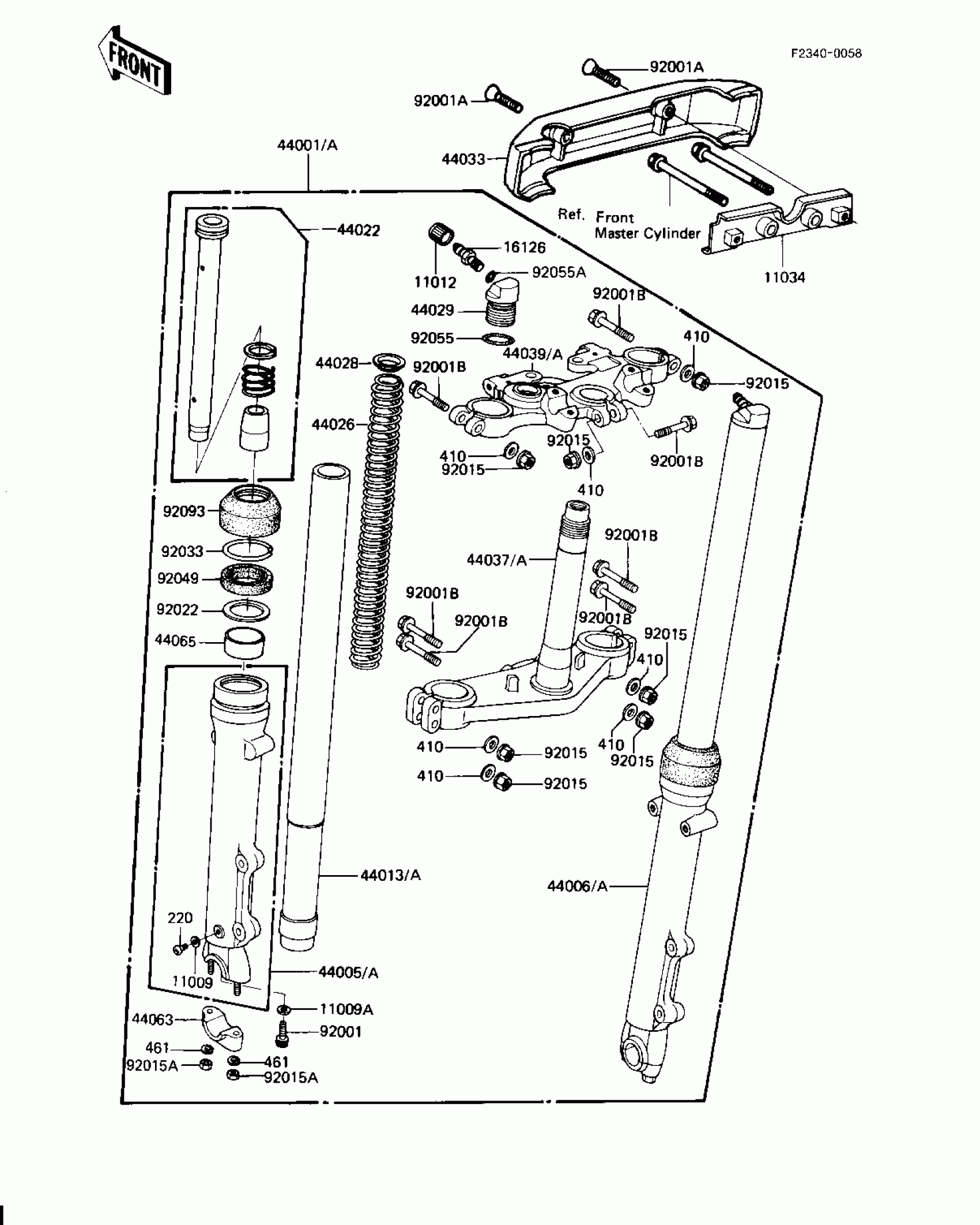

Kawasaki KZ1000-J3 FRONT FORK (KZ1000-J1/J2) Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

44045-002

$3.95

11009A

GASKET

44045-057

$3.71

11012

CAP,AIR VALVE

11012-1241

Unavailable

11034

BRACKET,FORK COVER

11034-1842

Unavailable

16126

VALVE,AIR

16126-1052

$31.36

44001

FORK-FRONT

44001-1167

$1,278.88

44005

TUBE,LH,FORK OUTER

44005-1059

$271.00

44006

TUBE,RH,FORK OUTER

44006-1059

$229.69

44013

PIPE-FORK INNER

44013-1046

$307.09

44022

CYLINDER-FORK

44022-1044

$113.90

44026

SPRING-FRONT FORK

44026-1103

$46.37

44028

GUIDE-FORK SPRING

44028-1004

$10.83

44029

SEAT-FORK SPRING

44029-1021

$116.39

44033

COVER,FORK

44033-1053

Unavailable

44037

HOLDER-FORK UNDER

44037-1055

$442.76

44039

HOLDER-FORK UPPER

44039-1035

$275.06

44063

HOLDER-FRONT AXLE

44063-1006

$44.66

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

92001A

SCREW-CSK-RD-CROS

222C0518

$4.15

92001B

BOLT,FLANGED,8X57

92001-1358

Unavailable

92015

NUT,FLANGED,8MM

92015-1022

$0.48

92015A

NUT,LOCK,8MM

92015-1124

$4.10

92033

RING-SNAP,FORK

92033-1047

$4.84

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$17.88

92055

RING-O,FORK TOP CAP

92055-1051

$4.85

92055A

"0" RING,AIR VALVE

92055-1094

$0.98

92093

SEAL

92093-1051

$41.67

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable
