2000 Kawasaki KX80 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2000 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

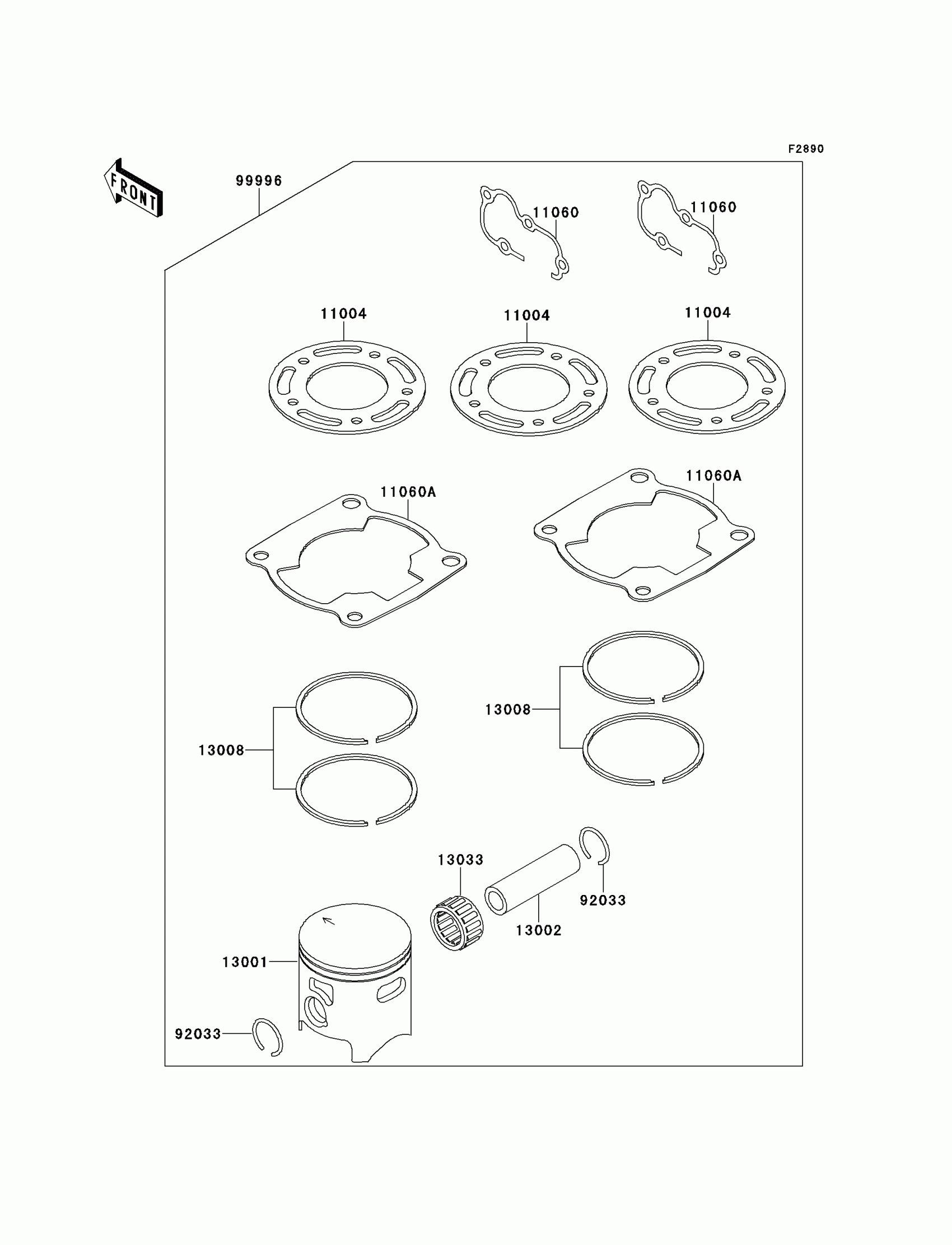

2000 Kawasaki KX80 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1213

1

$41.91

In stock

11060

1

$4.63

In stock

11060A

1

$6.01

In stock

13001

PISTON-ENGINE

13001-1497

1

$78.23

In stock

13002

PIN-PISTON

13002-1079

1

$15.27

In stock

13008

RING-SET-PISTON

13008-1100

1
Out of stock

13033

BEARING-SMALL END,14R1818AP-1

13033-1053

1
Out of stock

92033

RING-SNAP

92033-1050

1

$2.27

In stock

99996

KIT,ENGINE TOP END,KX80-W/Y

99996-1238

1
Out of stock
