1988 Kawasaki KX80 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

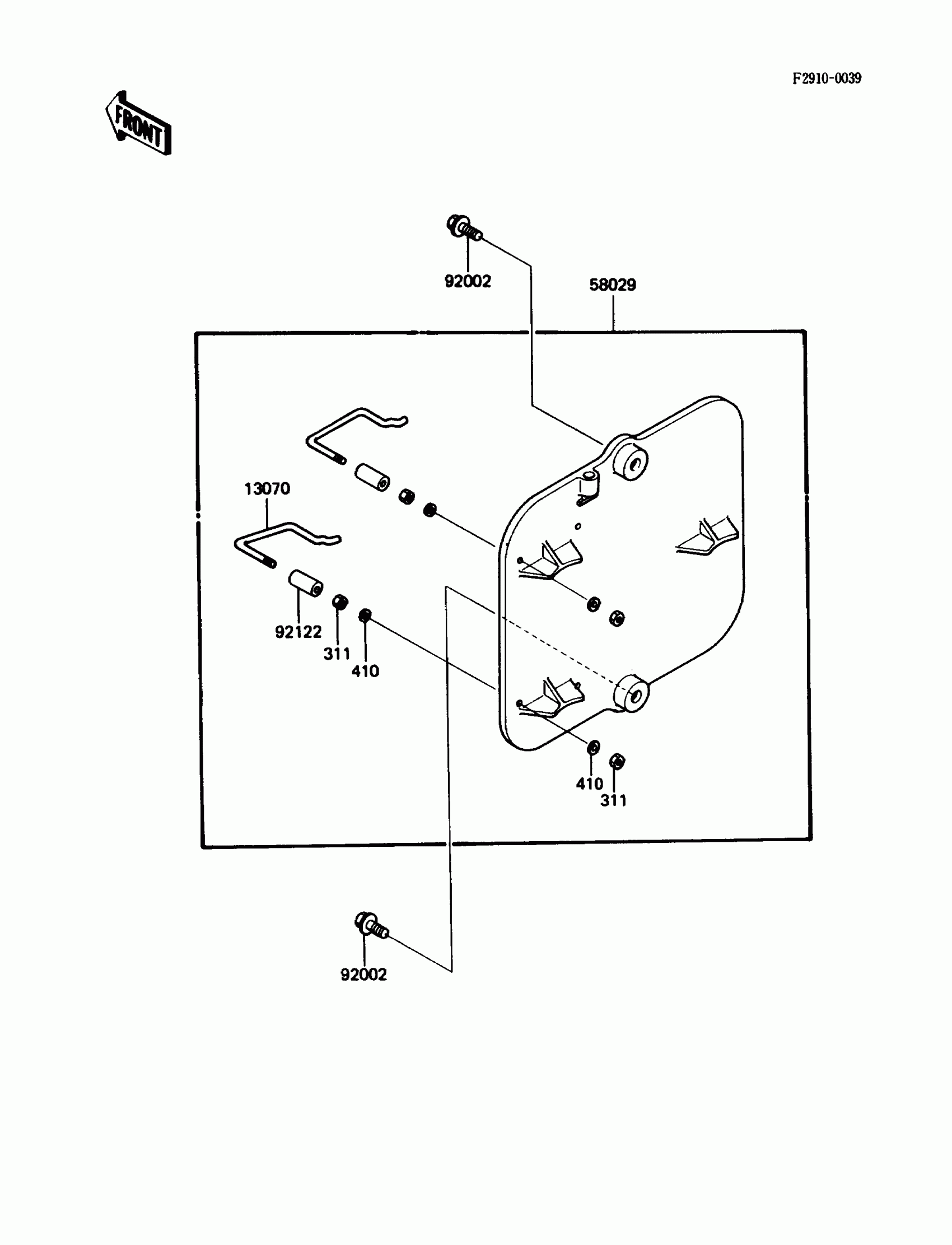

1988 Kawasaki KX80 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,CABLE

13070-1031

1
Out of stock

58029

PLATE-NUMBER,L.GREEN

58029-5014-6W

1
Out of stock

92002

BOLT,6X14

92002-1460

1

$4.02

In stock

92122

ROLLER,CABLE GUIDE

92122-1011

1
Out of stock

311

NUT-HEX

311B0300

1

$0.46

In stock

410

WASHER-PLAIN-SMALL,3MM

410B0300

1
Out of stock
