2000 Kawasaki KX80 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2000 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

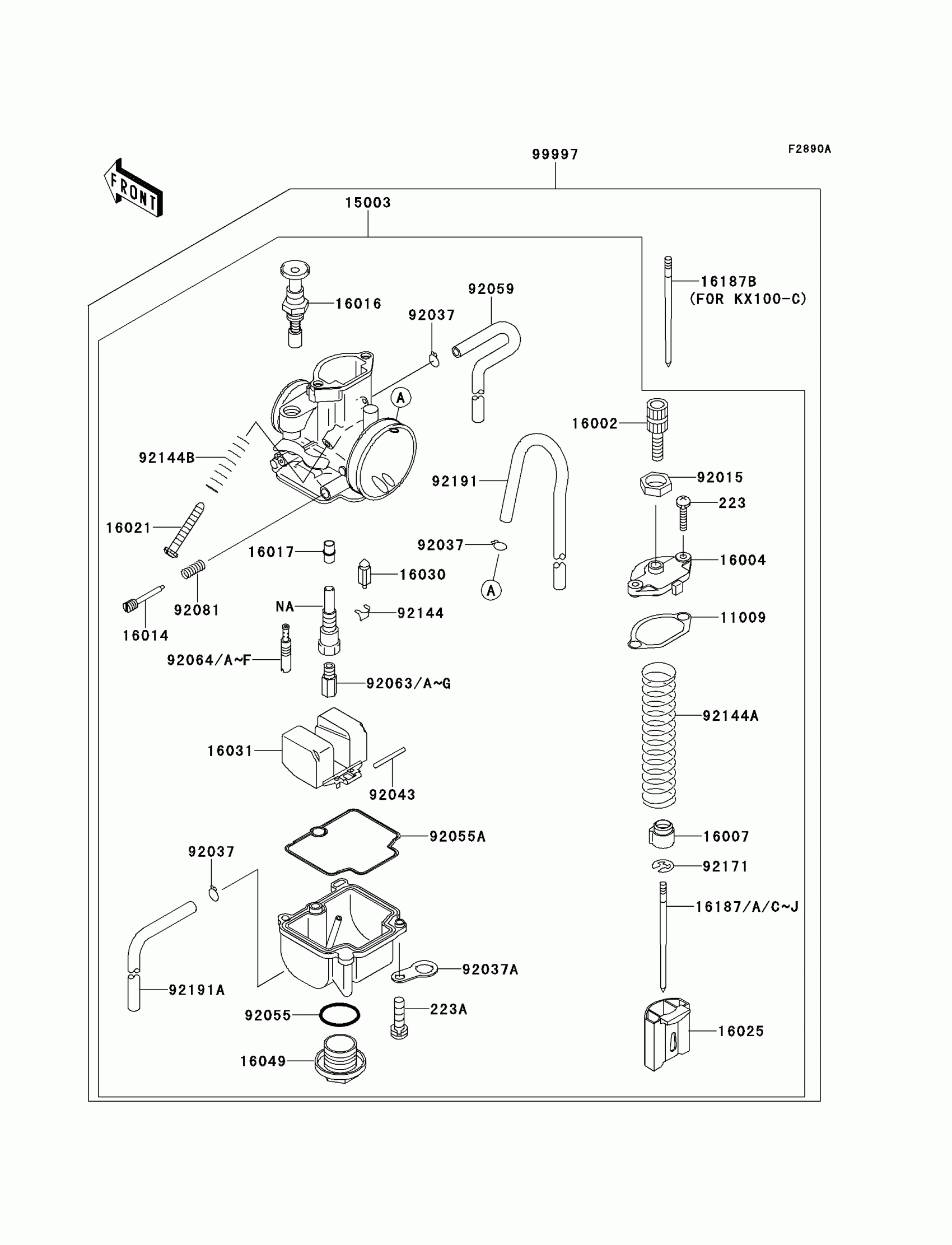

2000 Kawasaki KX80 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,MIXING CHAMBER

11009-1759

1
Out of stock

15003

CARBURETOR-ASSY

15003-1616

1
Out of stock

16002

ADJUSTER-CABLE

16002-1056

1
Out of stock

16004

CAP-CHAMBER,MIXING

16004-1065

1
Out of stock

16007

SEAT-SPRING,THROTTLE VALVE

16007-1155

1
Out of stock

16014

SCREW-PILOT AIR

16014-1058

1
Out of stock

16016

PLUNGER,STARTER

16016-1075

1
Out of stock

16017

JET-NEEDLE

16017-1423

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1161

1
Out of stock

16025

VALVE-THROTTLE,CA3.5

16025-1220

1
Out of stock

16030

VALVE-FLOAT

16030-1064

1
Out of stock

16031

FLOAT

16031-1065

1
Out of stock

16049

COVER-MAIN JET

16049-1051

1
Out of stock

16187

NEEDLE-JET,NADA 2.355

16187-1144

1
Out of stock

16187A

NEEDLE-JET,NADB 2.365

16187-1145

1
Out of stock

16187B

NEEDLE-JET,NADC 2.375

16187-1146

1
Out of stock

16187C

NEEDLE-JET,NADD 2.385

16187-1147

1
Out of stock

16187D

NEEDLE-JET,NADE 2.395

16187-1148

1
Out of stock

16187E

NEEDLE-JET,NAEA 2.355

16187-1149

1
Out of stock

16187F

NEEDLE-JET,NAEB 2.365

16187-1150

1
Out of stock

16187G

NEEDLE-JET,NAEC 2.375

16187-1151

1
Out of stock

16187H

NEEDLE-JET,NAEC 2.375

16187-1151

1
Out of stock

16187I

NEEDLE-JET,NAED 2.385

16187-1152

1
Out of stock

16187J

NEEDLE-JET,NAEE 2.395

16187-1153

1
Out of stock

92015

NUT,CABLE ADJUST LOCK

92015-1574

1
Out of stock

92037

CLAMP,TUBE

92037-1396

1
Out of stock

92037A

CLAMP,HOSE

92037-1969

1
Out of stock

92043

PIN,FLOAT

92043-1207

1
Out of stock

92055

RING-O,MAIN JET COVER

92055-1167

1
Out of stock

92055A

RING-O,FLOAT CHAMBER

92055-1389

1
Out of stock

92059

TUBE,4X7X360

92059-1941

1
Out of stock

223

SCREW-PAN-WS-CROS

223C0414

1
Out of stock

223A

SCREW-PAN-WS-CROS,4X16

223C0416

1
Out of stock

92063

JET-MAIN,#130

92063-1336

1
Out of stock

92063A

JET-MAIN,#132

92063-1337

1
Out of stock

92063B

JET-MAIN,#135

92063-1338

1
Out of stock

92063C

JET-MAIN,#138

92063-1359

1
Out of stock

92063D

JET-MAIN,#140

92063-1360

1
Out of stock

92063E

JET-MAIN,#142

92063-1361

1
Out of stock

92063F

JET-MAIN,#145

92063-1362

1
Out of stock

92063G

JET-MAIN,#148

92063-1363

1
Out of stock

92064

JET-PILOT,#52

92064-1130

1
Out of stock

92064A

JET-PILOT,#38

92064-1139

1
Out of stock

92064B

JET-PILOT,#40

92064-1140

1
Out of stock

92064C

JET-PILOT,#42

92064-1141

1
Out of stock

92064D

JET-PILOT,#45

92064-1142

1
Out of stock

92064E

JET-PILOT,#48

92064-1143

1
Out of stock

92064F

JET-PILOT,#50

92064-1144

1
Out of stock

92081

SPRING,ADJUST SCREW

92081-1555

1
Out of stock

92144

SPRING,FLOAT VALVE

92144-1178

1
Out of stock

92144A

SPRING,THROTTLE VALVE

92144-1566

1
Out of stock

92144B

SPRING,THROTTLE STOP SCREW

92144-1782

1
Out of stock

92171

CLAMP

92171-1323

1
Out of stock

92191

TUBE,4X7X560

92191-1243

1
Out of stock

92191A

TUBE,4X7X420

92191-1591

1
Out of stock

99997

KIT-CARBURETOR

99997-1095

1
Out of stock
