1998 Kawasaki KX80 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1998 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

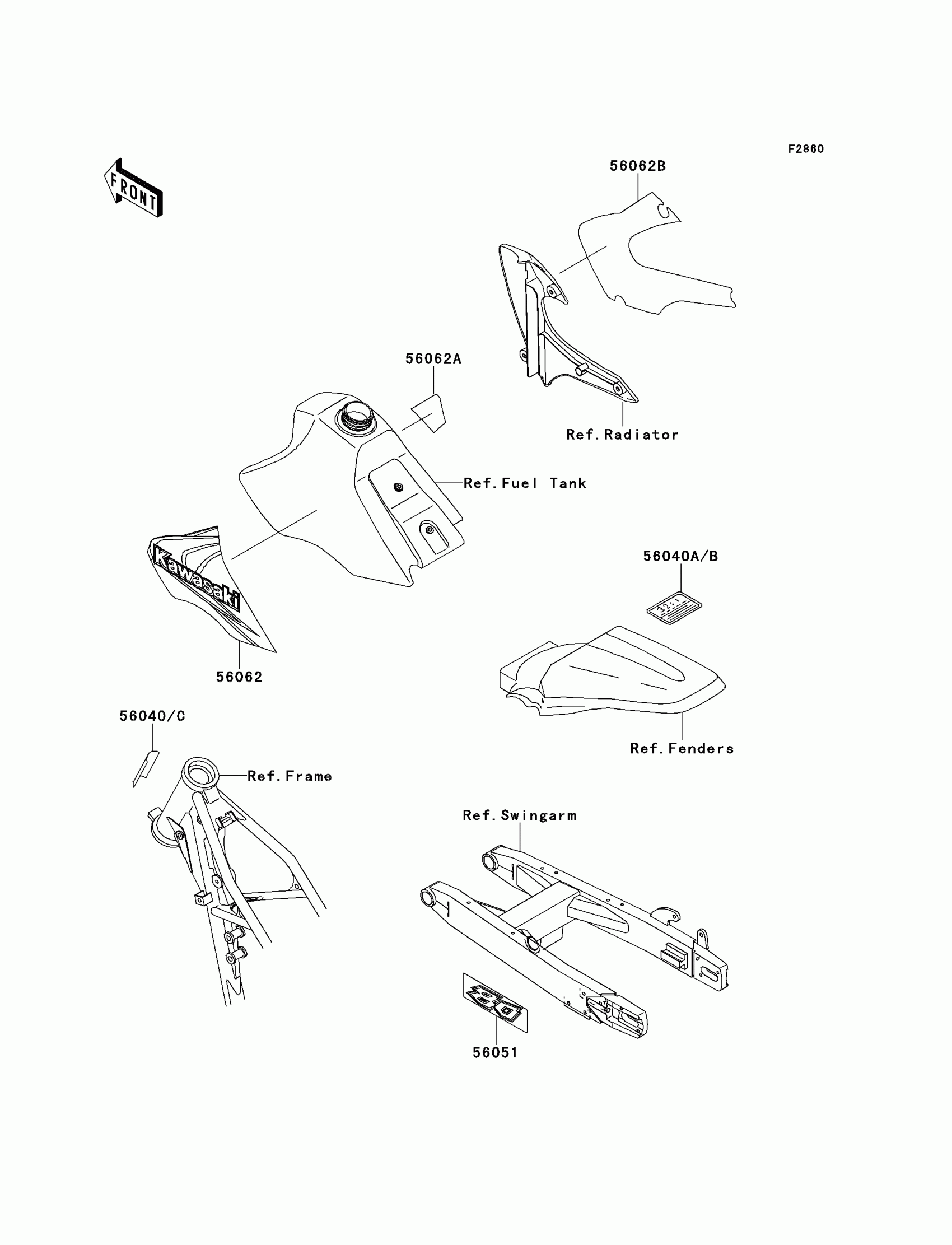

1998 Kawasaki KX80 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56051

MARK,SWING ARM,80

56051-1661

1
Out of stock

56062

PATTERN,FUEL TANK,LH

56062-1161

1
Out of stock

56062A

PATTERN,FUEL TANK,RH

56062-1162

1
Out of stock

56062B

PATTERN,SHROUD,RH

56062-1163

1
Out of stock

56040

LABEL-WARNING,NOISE

56040-1101

1
Out of stock

56040A

LABEL-WARNING,GASOLINE/OIL

56040-1129

1
Out of stock

56040B

LABEL-WARNING,GASOLINE/OIL

56040-1306

1
Out of stock

56040C

LABEL-WARNING,WARRANTY

56040-1335

1
Out of stock
