1980 Kawasaki KX80 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1980 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

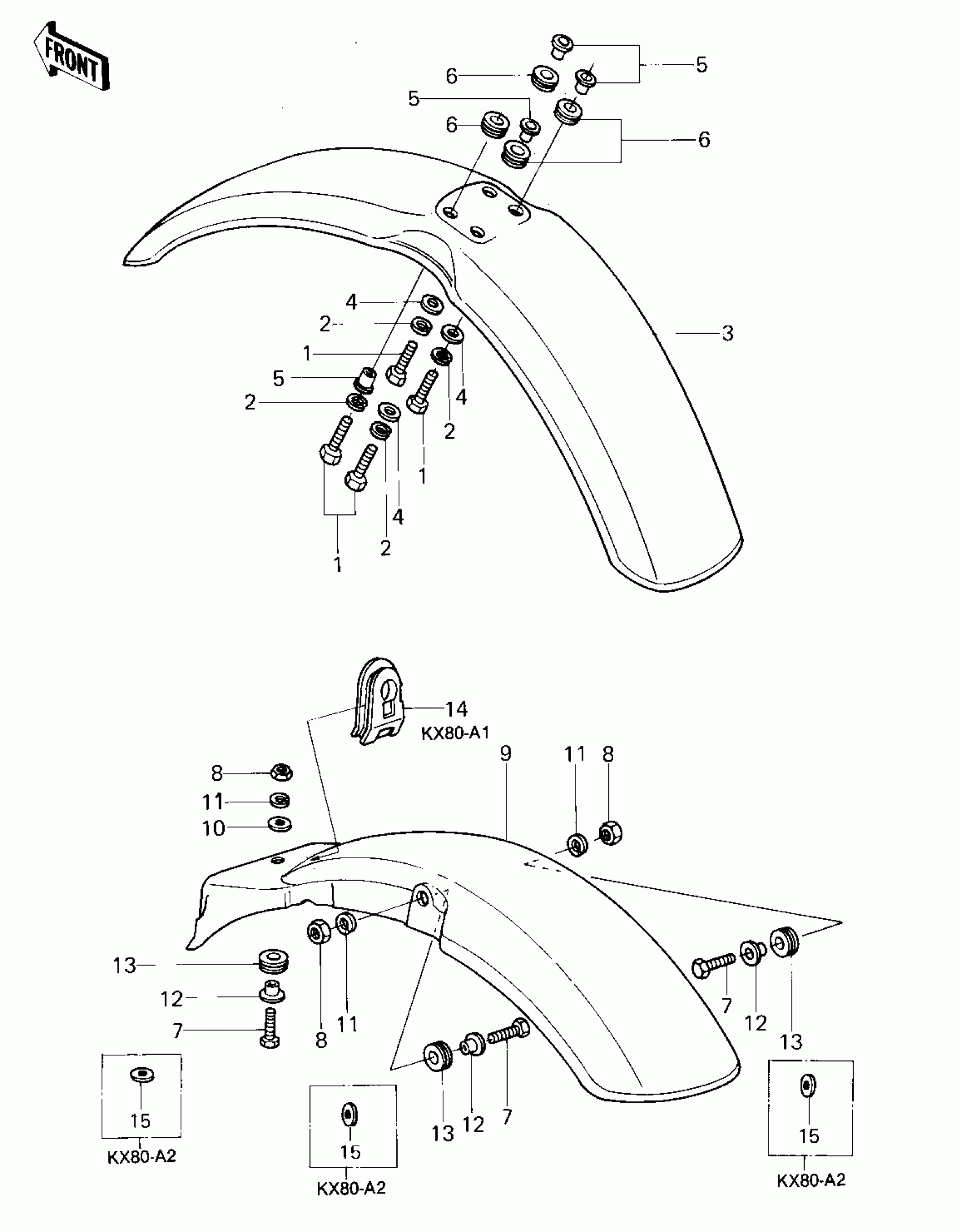

1980 Kawasaki KX80 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-UPSET

112G0618

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

FENDER-FR,LIME GREEN

35004-1043-6W

1
Out of stock

3

FENDER-FR,LIME GREEN

35004-1043-6W

1
Out of stock

4

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

4

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

5

COLLAR

92027-153

1

$4.93

In stock

6

DAMPER RUBBER

92075-103

1

$3.49

In stock

7

BOLT-UPSET,6X20

112G0620

1
Out of stock

7

BOLT-UPSET

112G0618

1
Out of stock

8

NUT 6MM

311B0600

1
Out of stock

9

FENDER-RR,L.GREEN

35023-1025-6W

1
Out of stock

9

FENDER-RR,L.GREEN

35023-1025-6W

1
Out of stock

10

WASHER PLAIN 6MM

411B0600

1
Out of stock

11

WASHER SPRING 6MM

461F0600

1
Out of stock

12

COLLAR

92027-153

1

$4.93

In stock

13

DAMPER RUBBER

92075-105

1

$3.48

In stock

14

SEAL,REAR FENDER

92093-1011

1
Out of stock

15

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock
