1982 Kawasaki KX80 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1982 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

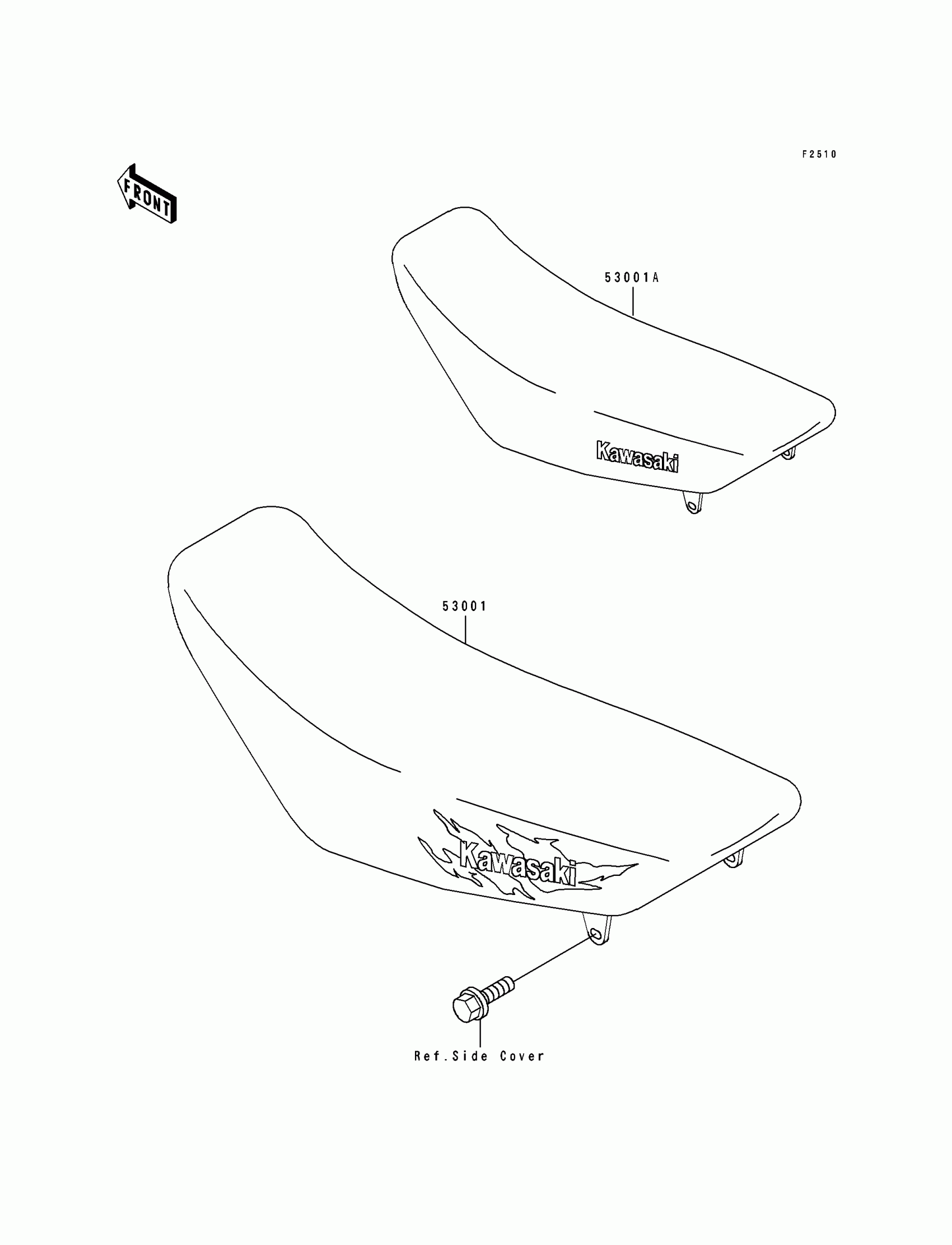

1982 Kawasaki KX80 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,SEAT

11034-1993

1
Out of stock

53001

SEAT-ASSY

53001-1272

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92072

BAND

92072-3742

1
Out of stock

110

BOLT-UPSET,6X16

112G0616

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
