Description

Price

11012

CAP

11012-1263

$16.53

33032

SHAFT-SUSPENSION ARM,L=168

33032-1032

$25.44

35019

FLAP,SUSPENSION ARM

35019-1046

$64.13

35019A

FLAP,SUSPENSION ROD

35019-1047

$9.62

39007

ARM-SUSP,UNI-TRAK

39007-1015

$123.08

42036

SLEEVE,SUSPENSION ARM,L=86

42036-1068

$26.04

46102

ROD,SUSPENSION

46102-1051

$145.05

59266

JOINT-BALL

59266-1011

$65.53

92001

BOLT,FLANGED,10X42

92001-1711

$6.40

92001A

BOLT,FLANGED,10X40.5

92001-1712

$4.71

92015

NUT,LOCK,12MM

92015-1774

$7.71

92015A

NUT,FLANGED,10MM

92015-1415

$4.69

92015B

NUT,LOCK,FLANGED,10MM

92015-1338

$10.28

92027

COLLAR,SUSPENSION ROD

92027-1496

$14.50

92033

RING-SNAP,20.7MM

92033-1084

$3.73

92046

BEARING-NEEDLE

92046-1046

$27.88

92049

SEAL-OIL

92049-1098

$10.89

187

BOLT 6X14

187B0614

$0.88

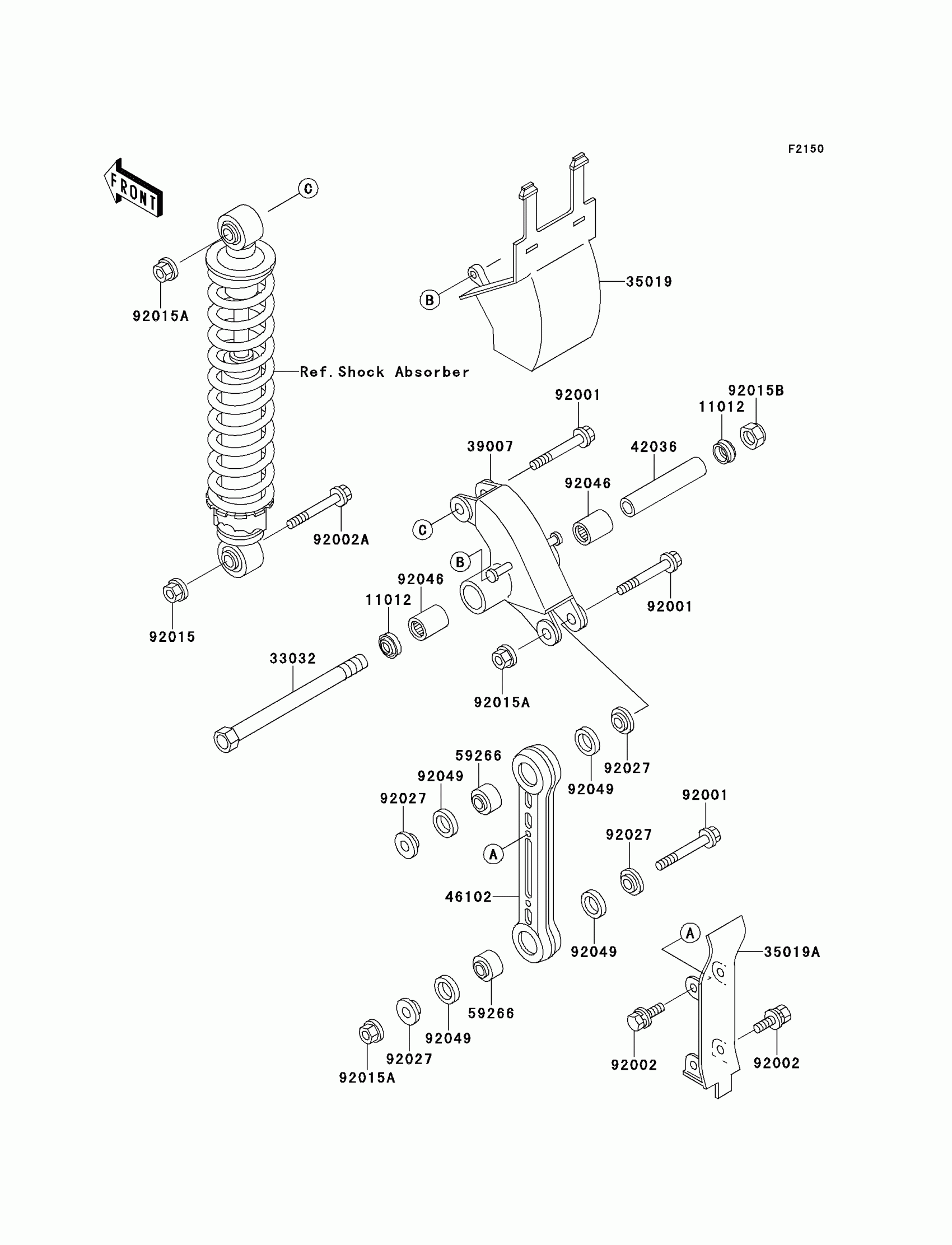

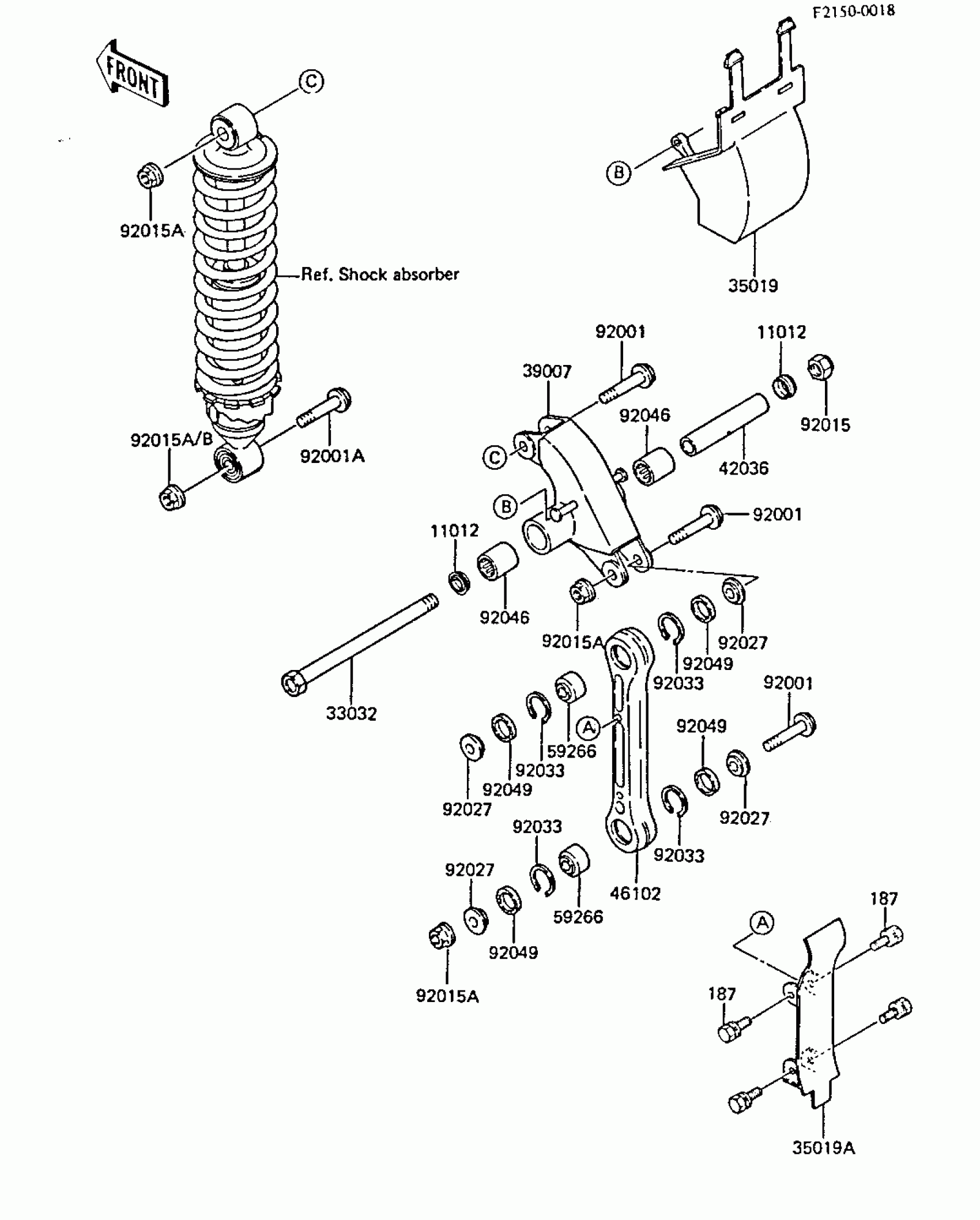

Kawasaki KX60 SUSPENSION Diagram

CAP
