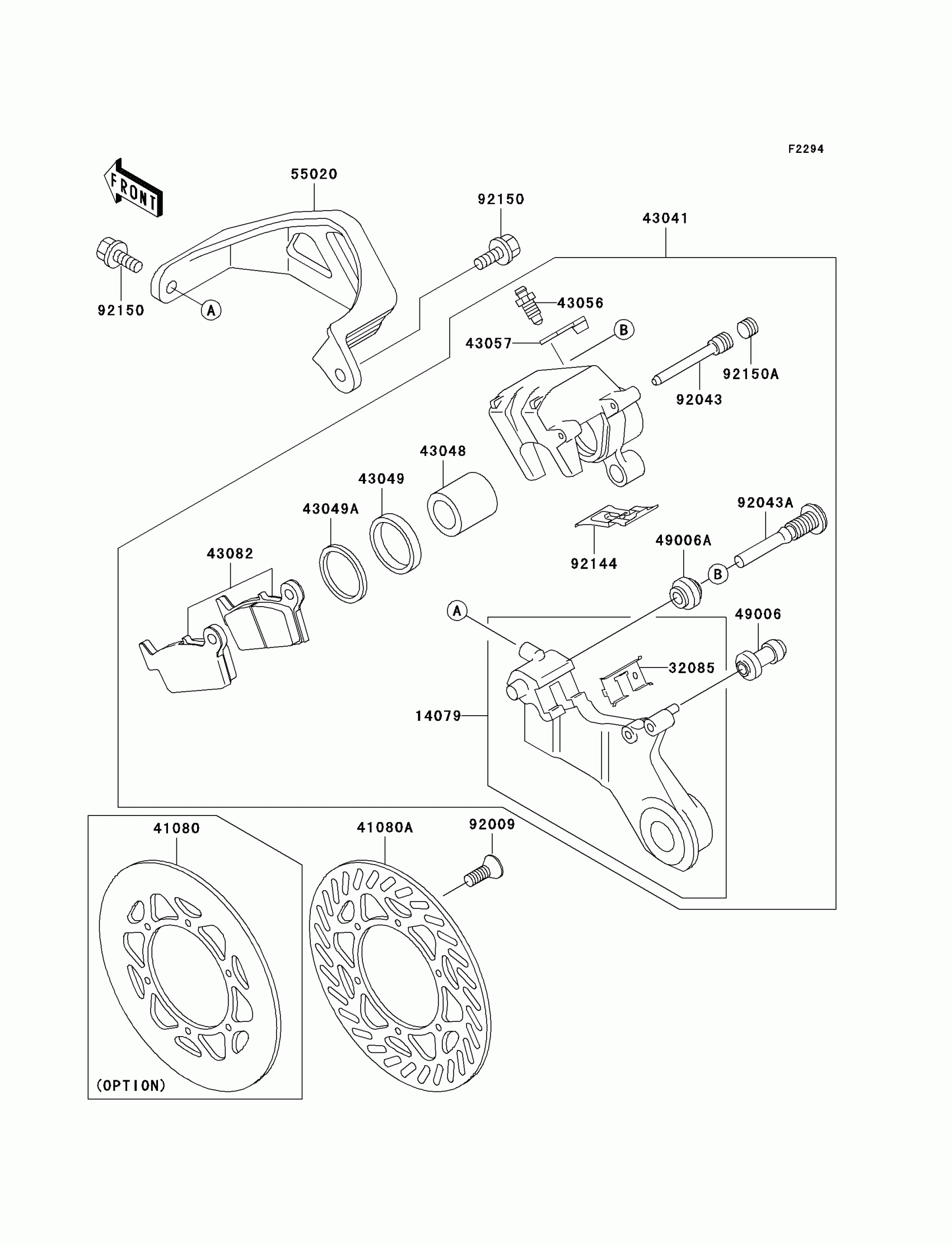

Kawasaki KX500 Rear Brake(KX500-E15) Diagram

Description

Price

14079

HOLDER-ASSY,REAR CALIPER

14079-1105

$170.00

32085

STOPPER,PAD

32085-1386

$6.75

41080

DISC,RR

41080-1245

$343.11

41080A

DISC,RR

41080-1388

$237.27

43041

CALIPER-ASSY,RR

43041-1577

$397.47

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43082

PAD-ASSY-BRAKE

43082-1173

$46.57

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

55020

GUARD,RR CALIPER,WHITE

55020-1488-RZ

$31.21

92009

SCREW,6X14

92009-1546

$3.66

92043

PIN,HANGER

92043-1507

$10.44

92043A

92043-1508

$10.44

92144

SPRING,PAD

92144-1819

$6.13

92150

BOLT,6X14

92150-1340

$3.86

92150A

BOLT,PLUG

92150-1692

$5.99
