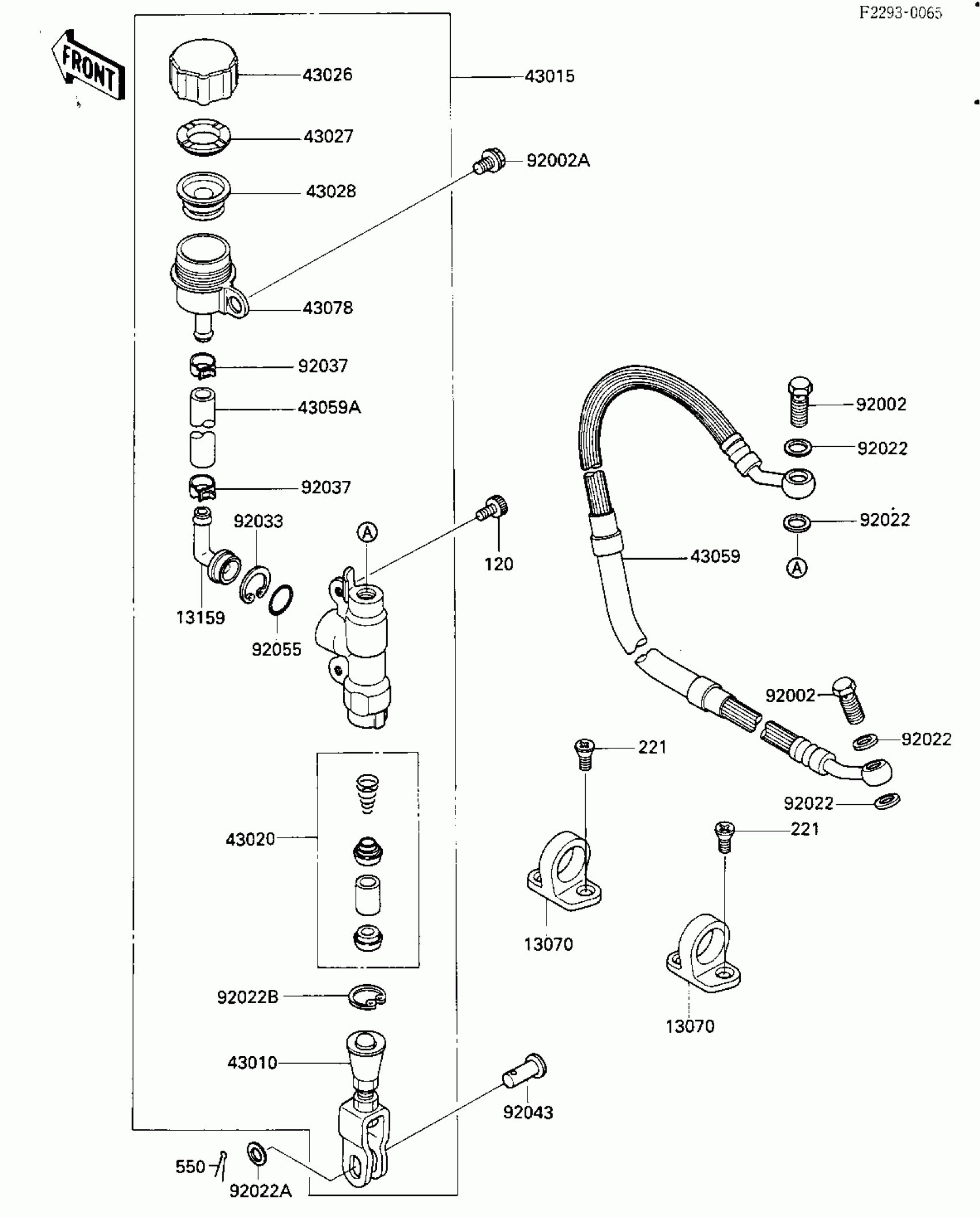

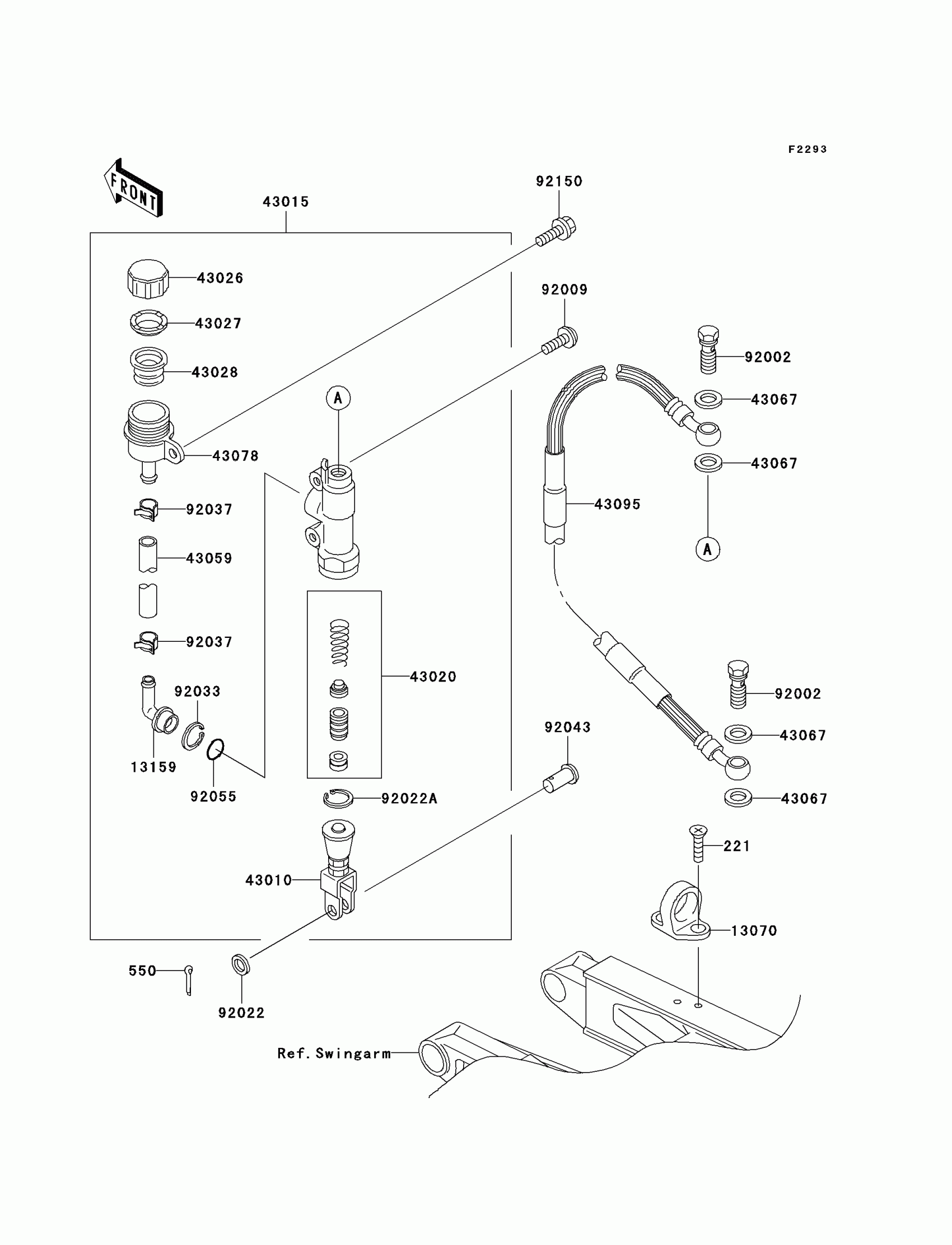

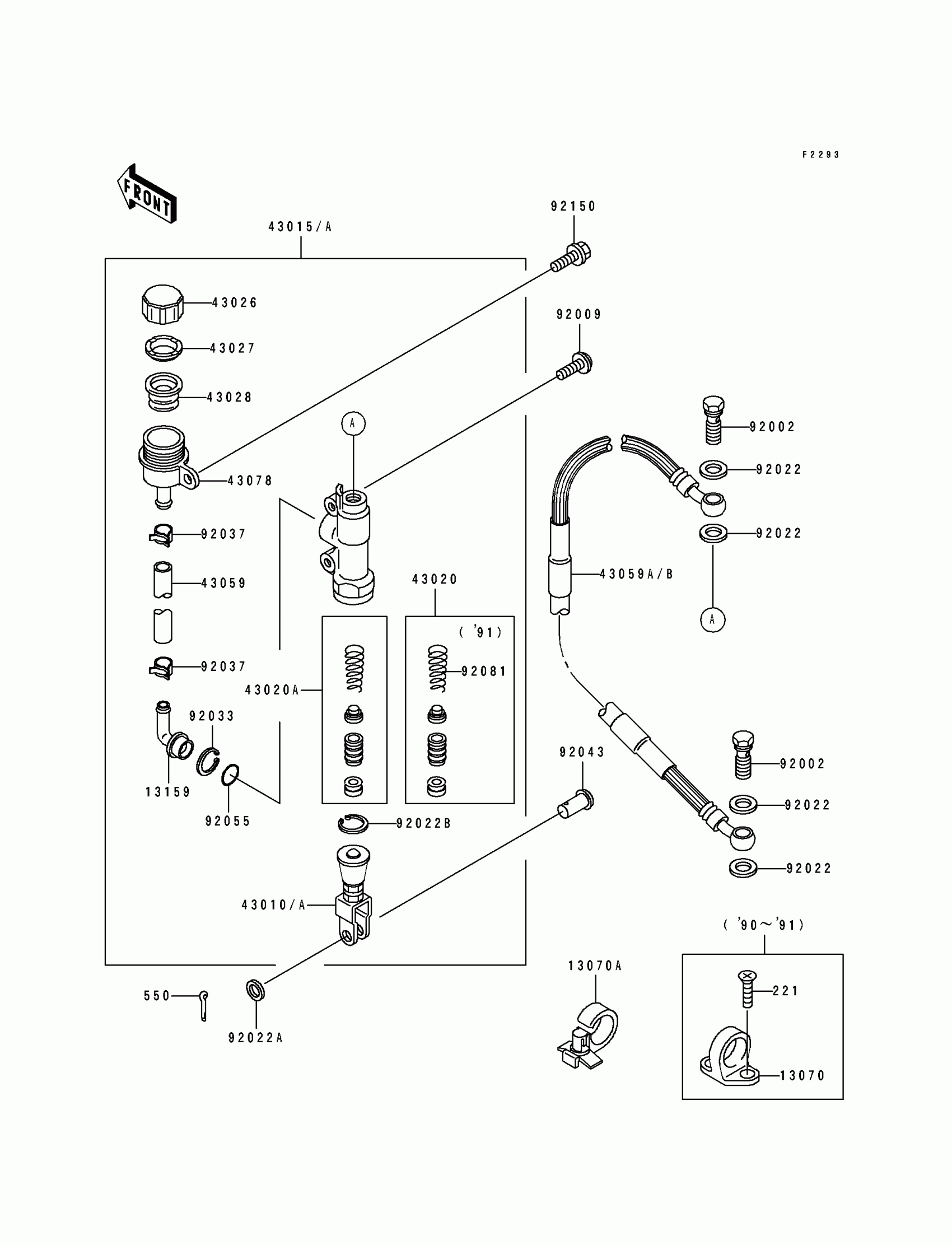

Kawasaki KX500 REAR MASTER CYLINDER Diagram

#

Description
Price

13070

GUIDE,HOSE

13070-1144

$6.13

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1058

$73.82

43015

CYLINDER-ASSY-MASTER

43015-1303

$249.39

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1058

$34.24

43027

PLATE-DIAPHRAGM

43027-1052

$3.88

43028

DIAPHRAGM

43028-1060

$16.34

43059

HOSE-BRAKE,RR

43059-1364

$128.66

43059A

HOSE-BRAKE

43059-1324

$37.81

43078

RESERVOIR

43078-1068

$28.80

92002

BOLT,6X14

92150-1340

$3.86

92002A

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

WASHER,8.5X13X1

92022-1028

$2.99

92022B

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1710

$7.54

92043

PIN

92043-1039

$7.54

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

120

BOLT-SOCKET,6X14

120P0614

Unavailable

221

SCREW-CSK-CROS,6X10

221B0610

$2.79

550

PIN COTTER 2.0X15

550D2015

Unavailable
