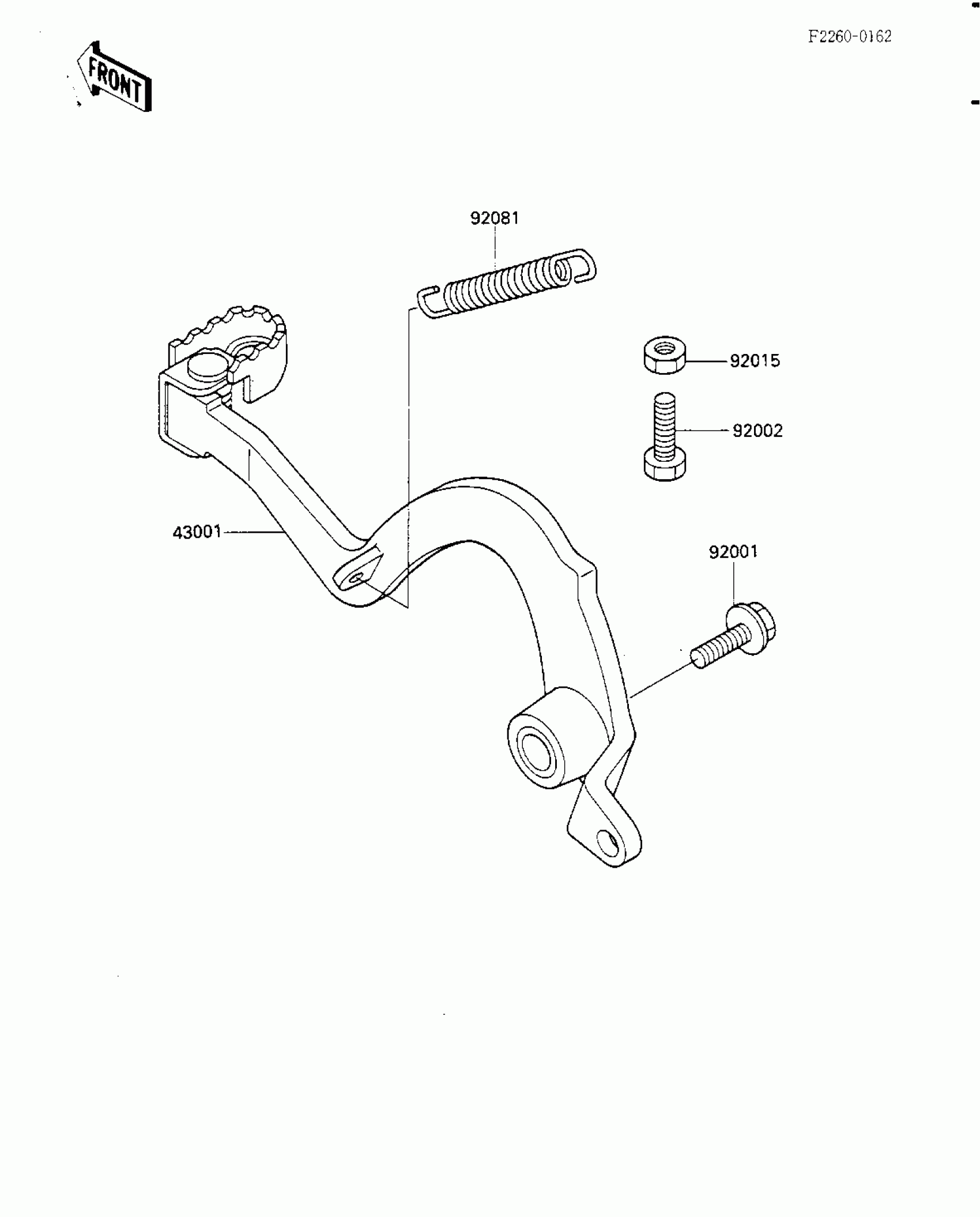

Find the part on the Brake Pedal diagram for your 1986 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

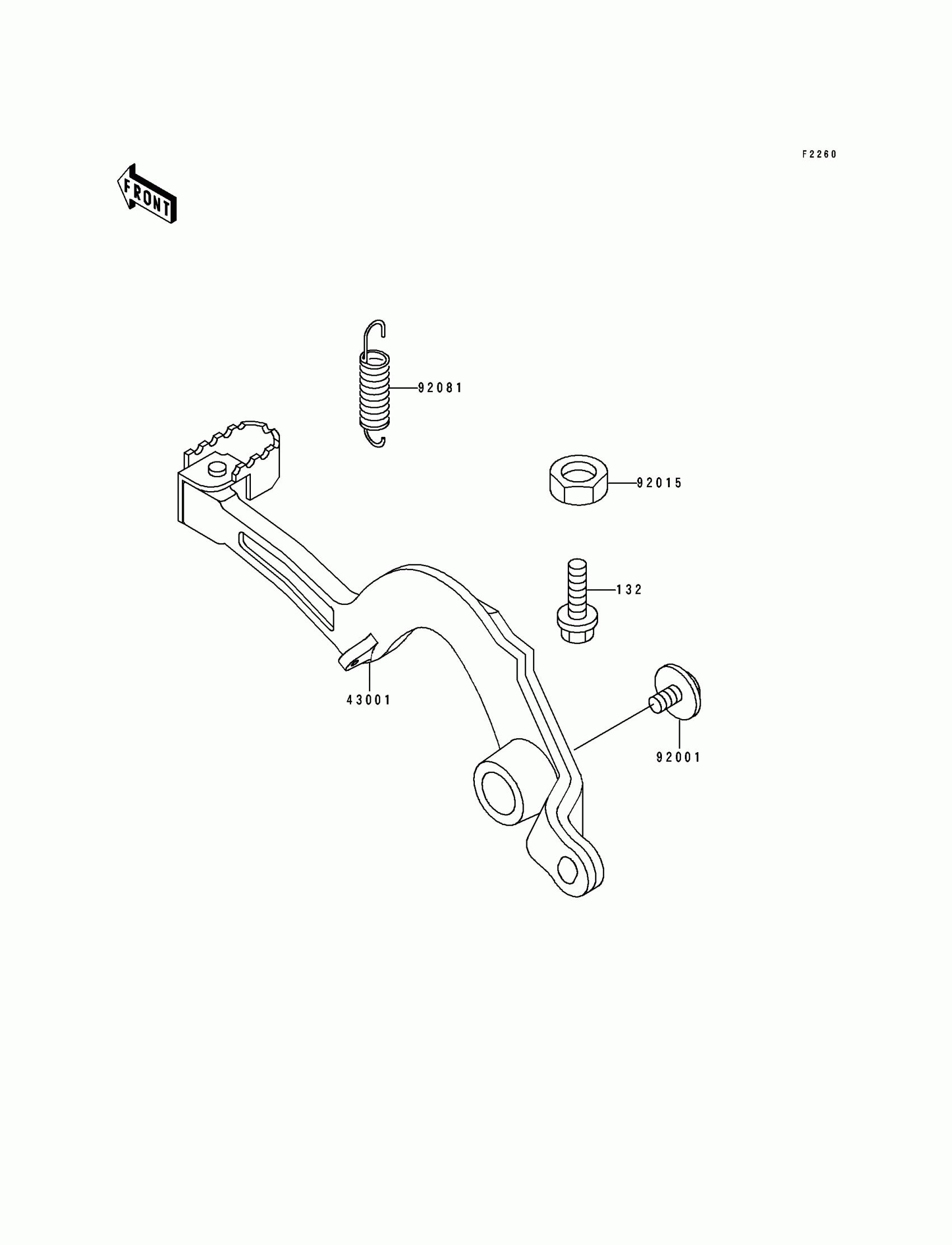

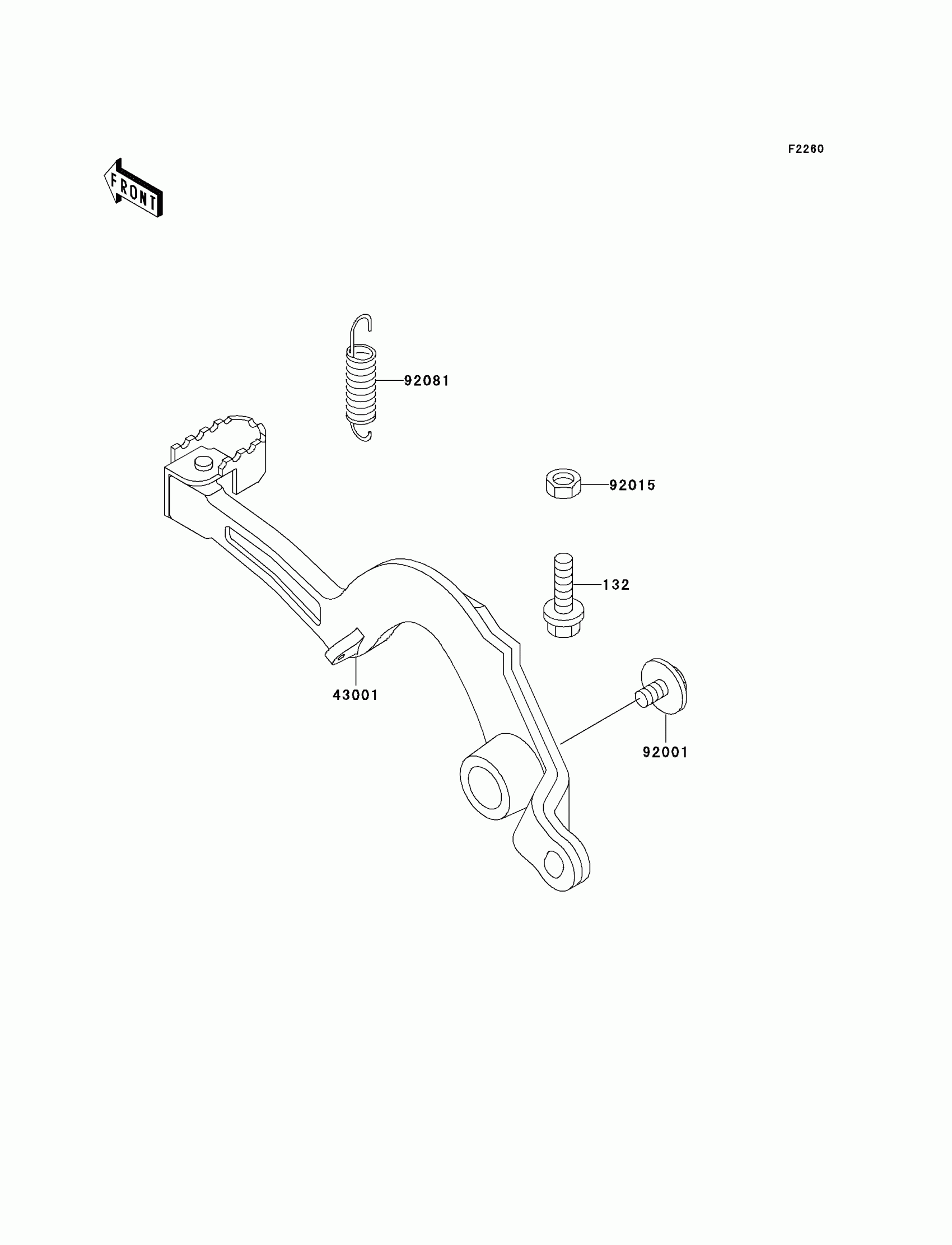

1986 Kawasaki KX500 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-1195

1

$114.54

In stock

92001

BOLT,FLANGED,6X10

92001-1034

1

$8.16

In stock

92002

BOLT,6X20

92002-1373

1

$3.92

In stock

92015

NUT,6MM

92015-1391

1

$2.05

In stock

92081

1

$5.78

In stock
