2004 Kawasaki KX500 Front Brake Diagram

← All diagrams

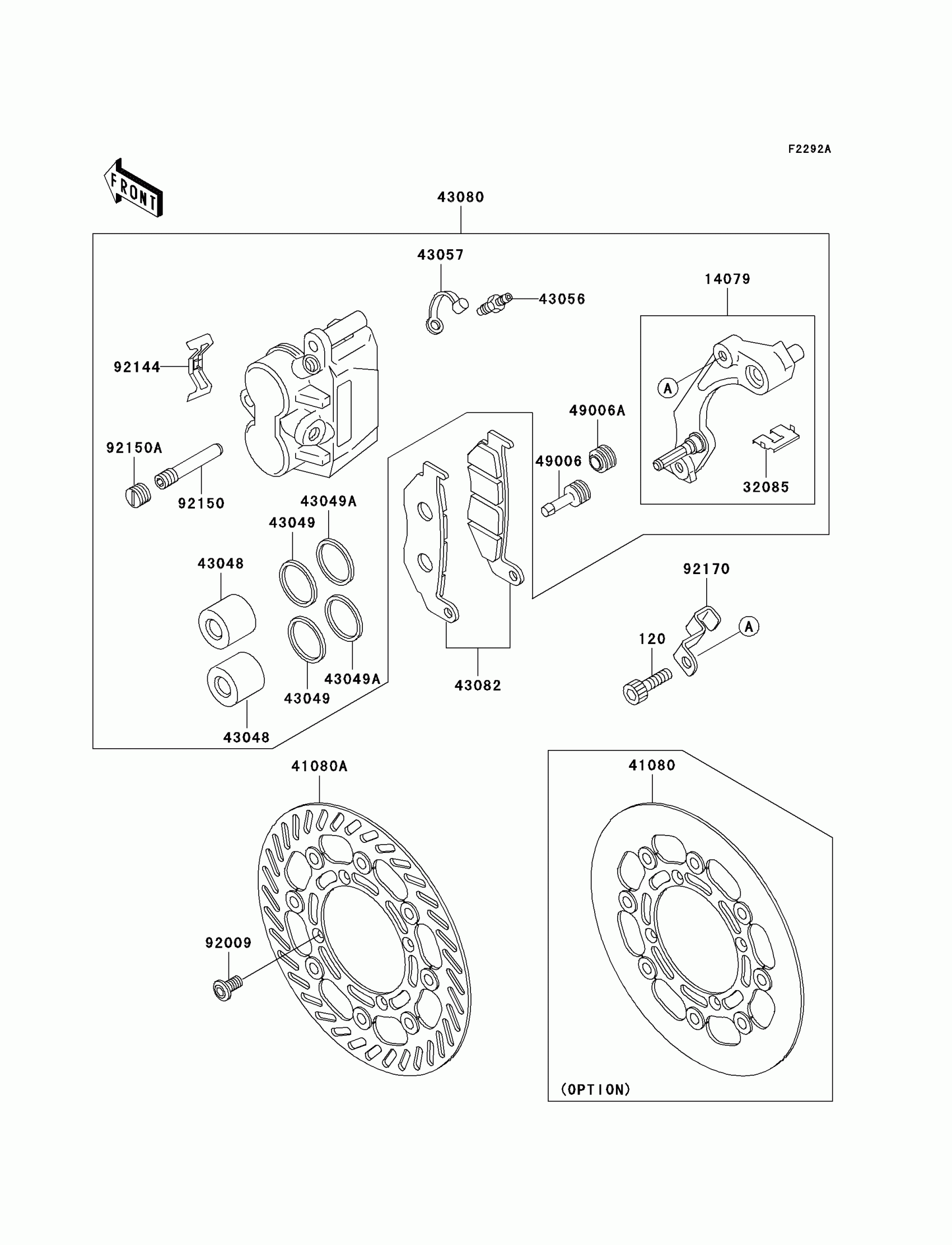

Find the part on the Front Brake diagram for your 2004 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX500 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X40

120P0840

1
Out of stock

14079

1

$170.00

In stock

32085

STOPPER,PAD

32085-1361

1

$6.34

In stock

41080

DISC,FR

41080-1365

1
Out of stock

41080A

DISC,FR

41080-1387

1

$343.11

In stock

43048

PISTON-CALIPER

43048-1064

1

$61.70

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

1

$437.26

In stock

43082

PAD-ASSY-BRAKE

43082-1172

1

$47.82

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92009

SCREW,6X14

92009-1546

1
Out of stock

92144

SPRING,PAD

92144-1721

1

$7.79

In stock

92150

BOLT,HANGER

92150-1691

1

$9.50

In stock

92150A

BOLT,PLUG

92150-1692

1

$6.24

In stock

92170

CLAMP,HOSE

92170-1404

1
Out of stock
