1985 Kawasaki KX500 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

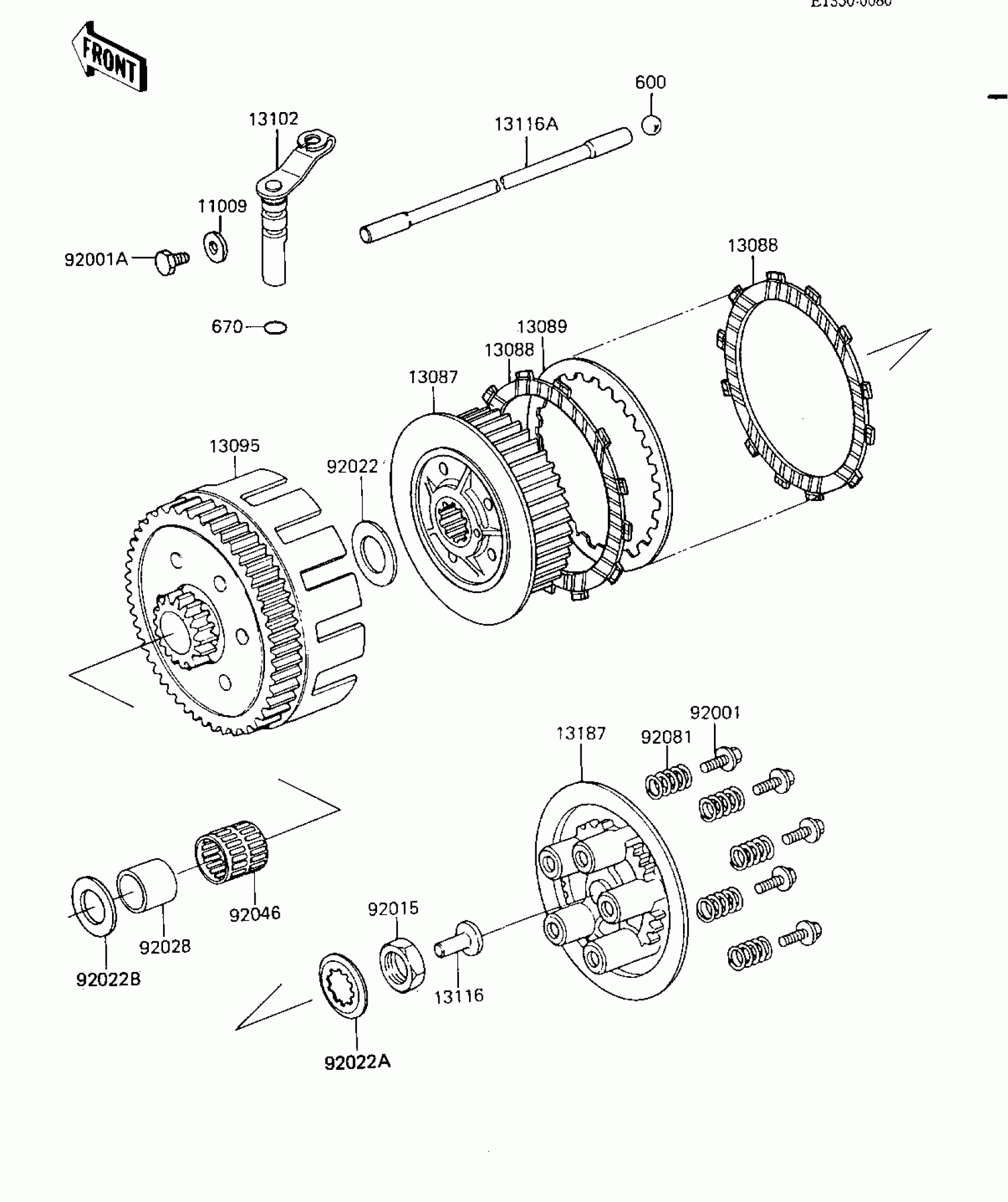

1985 Kawasaki KX500 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,6X14X0.8

92065-092

1

$3.46

In stock

13087

HUB-CLUTCH

13087-1061

1
Out of stock

13088

PLATE-FRICTION

13088-1065

1
Out of stock

13089

PLATE-CLUTCH,T=1.2

13089-1010

1

$14.58

In stock

13095

HOUSING-COMP-CLUTCH

13095-1122

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1075

1
Out of stock

13116

ROD-PUSH,CLUTCH

13116-1010

1
Out of stock

13116A

ROD-PUSH

13116-1120

1
Out of stock

13187

PLATE-CLUTCH OPERATI

13187-1011

1
Out of stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92001A

BOLT,CLUTCH RELEASE

92003-130

1
Out of stock

92015

NUT,20MM

92016-028

1

$7.86

In stock

92022

WASHER,20.5X46X2.6

92022-1646

1
Out of stock

92022A

WASHER

92022-1648

1
Out of stock

92022B

WASHER,20.5X34X1.4

92022-168

1

$7.55

In stock

92028

BUSHING,CLUTCH

92028-1076

1
Out of stock

92046

1

$35.36

In stock

92081

SPRING,CLUTCH

92081-1176

1

$10.25

In stock

600

BALL-STEEL,3/8"

600A1200

1

$1.32

In stock

670

O RING,10MM

670B2010

1

$1.31

In stock
