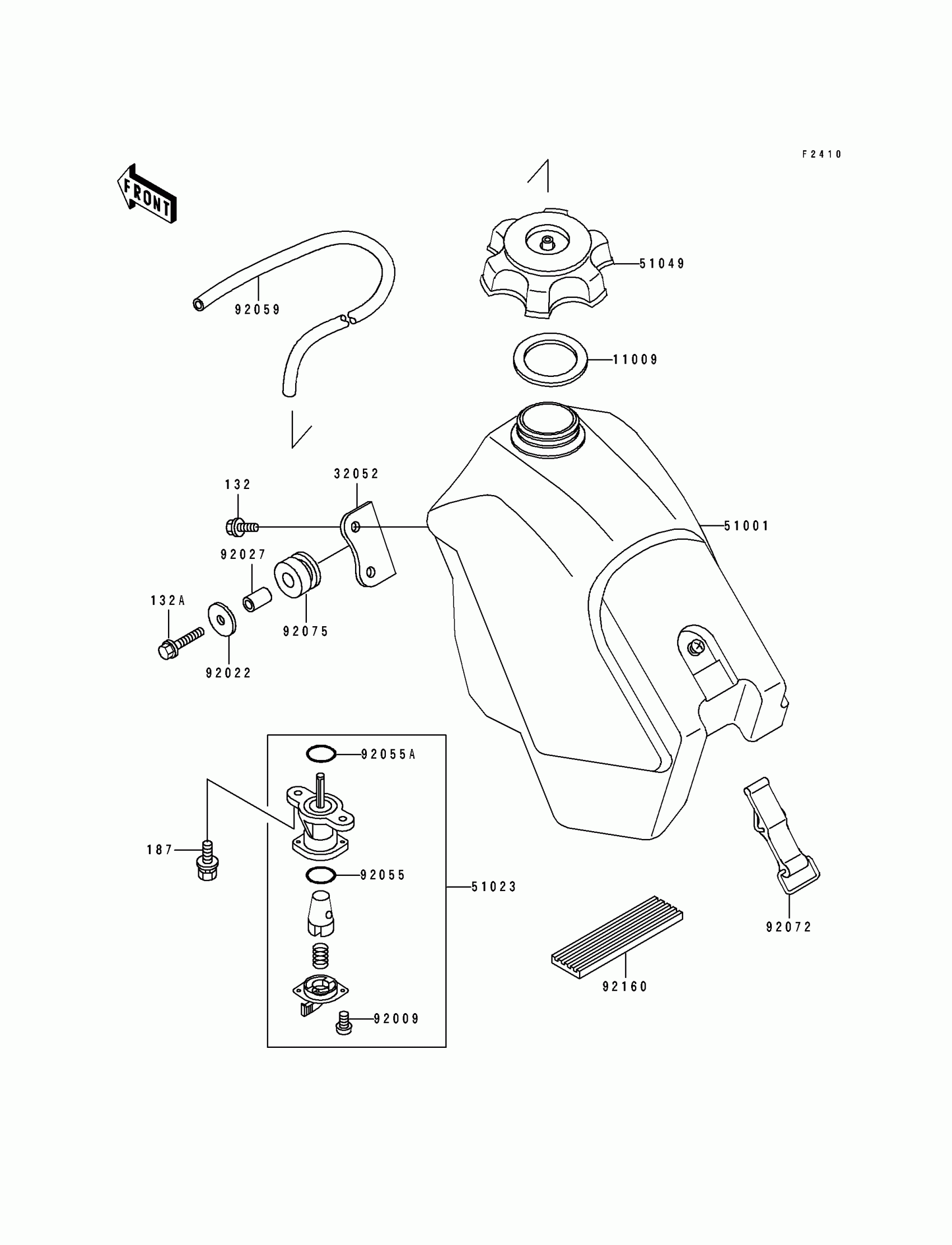

Find the part on the Fuel Tank diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

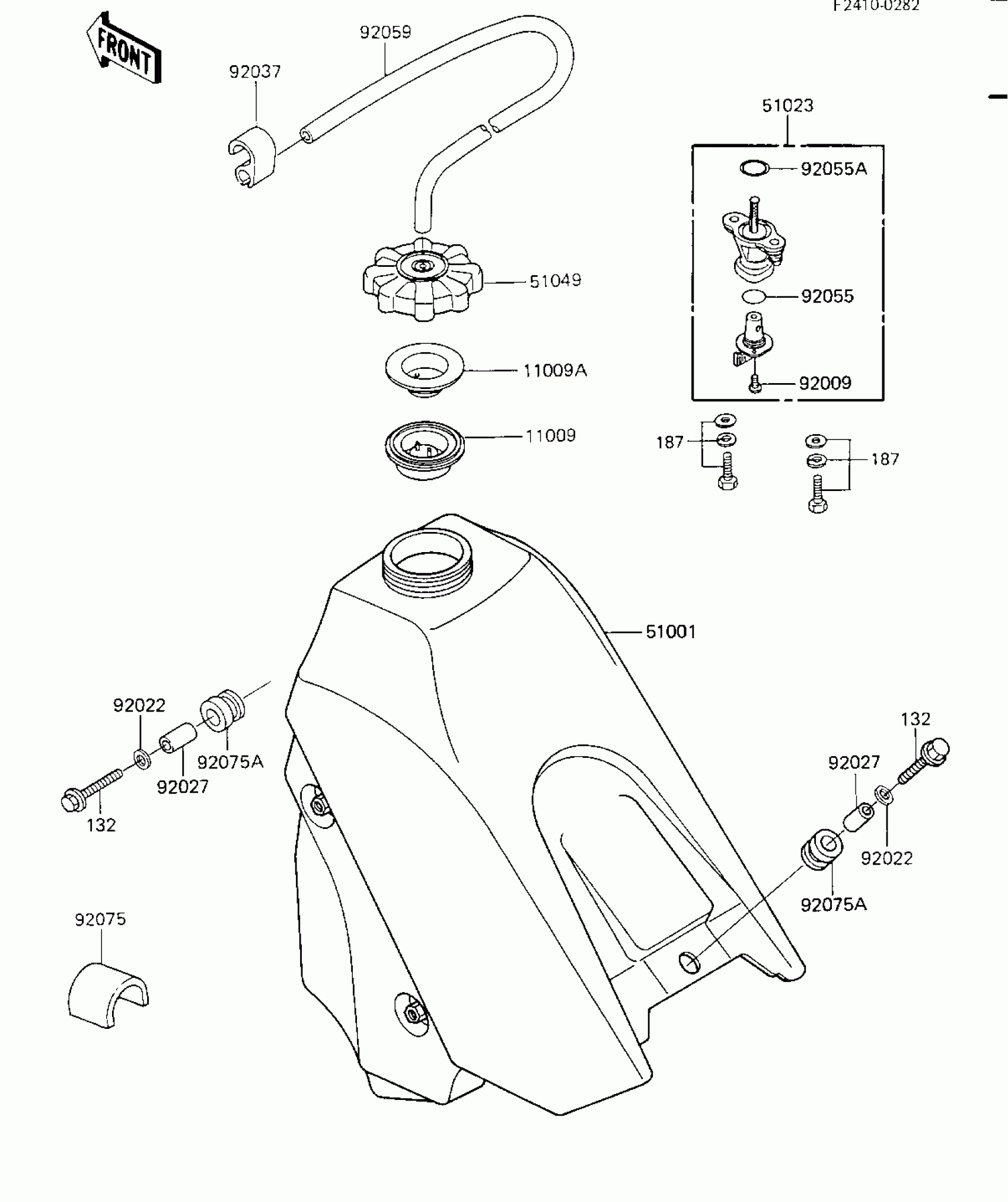

1985 Kawasaki KX500 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

$20.94

In stock

11009A

GASKET

11009-1514

1
Out of stock

51001

TANK-COMP-FUEL,L.GREE

51001-1193-6W

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1115

1
Out of stock

51049

CAP-TANK,FUEL

51049-1006

1
Out of stock

92009

1

$4.10

In stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,6.8X10X17

92027-1833

1

$4.63

In stock

92037

CLAMP,TUBE

92037-1377

1
Out of stock

92055

1

$1.19

In stock

92055A

1

$6.34

In stock

92059

TUBE,5X9X250

92059-1258

1

$11.19

In stock

92075

DAMPER,FUEL TANK

92075-1382

1

$26.48

In stock

92075A

DAMPER

92075-1660

1

$6.44

In stock

132

BOLT-FLANGED-SMALL,6X30

132G0630

1
Out of stock

187

BOLT-UPSET-WSP

187B0616

1
Out of stock
